Mechanical installation
24
3ADW000462R0301 DCS880 Hardware Manual e c

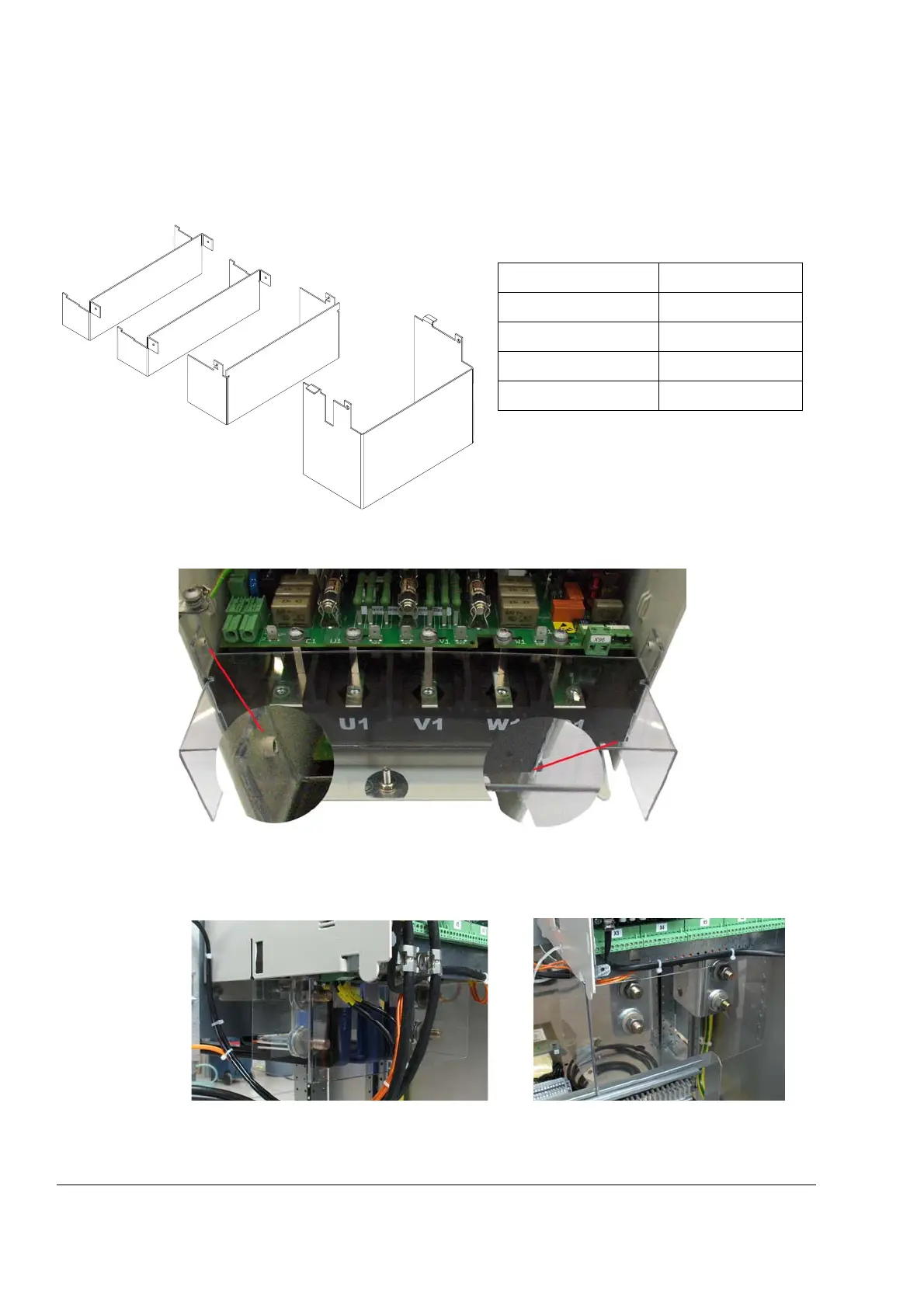

Terminal cover according to VBG 4 regulations
For converter modules size H1 - H4 shrouds for protection against contact are
provided.
Mount the H1, H2 cover using the existing lateral pins and than swing it down to snap it into the terminal
row. H3 and H4 mounting is the same, without the snap-in mechanism.
Examples for DC main terminal covers for H3 (left) and H4 (right) converter modules.
Id No. Remark
3ADT631236P0001 H1
3ADT631237P0001 H2
3ADT631238P0001 H3
3ADT631239P0001 H4
H4
H3
H2
H1
BE_ABD_001_Abdeckung_b.ai

ABB DCS880 H1 Specifications

General

Rated current	Up to 5200A
Enclosure class	IP00, IP21, IP54
Mounting	Cabinet-mounted
Fieldbus communication	CANopen
Safety	STO (Safe Torque Off)
Output current	Up to 5200A
Communication protocols	PROFIBUS DP, CANopen
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Enclosure rating	IP00, IP21, IP54
Cooling method	Air or liquid cooling
