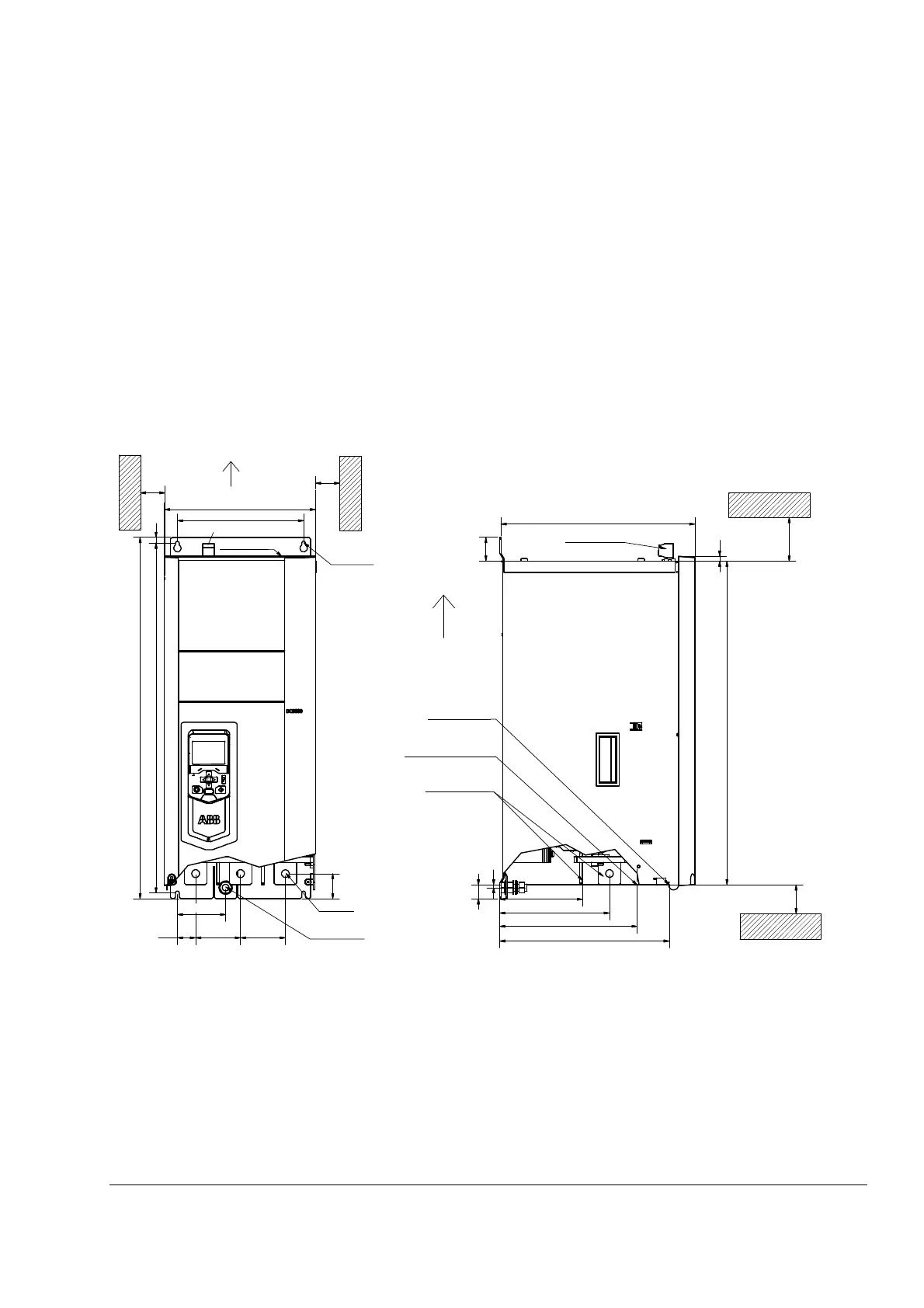

Dimensions and weights
109
3ADW000462R0301 DCS880 Hardware Manual e c
Size H4
DCS880-S01-0610
DCS880-S01-0740
DCS880-S01-0900
DCS880-S02-0680
DCS880-S02-0820
DCS880-S02-1000
600 V Units
DCS880-S01-0590
DCS880-S02-0650
Weight appr. 38 kg
MG_880_004_H4_a.ai
625
644
225
270
86
80 8032.5
45
U1 V1 W1
C1 D1
10
min.
10
min.
10
352
9
42
25
5
147.5
195.5
243 (PIN-H01)
305 (CON-H01)
150
577
250
Screw M6
Screw M12
Earthing M12
Air flow
Signal terminals
Power terminals
Field terminals
Field terminals
Fan terminals
Aux. supply terminals
Minimum
bottom clearance
Minimum
top clearance
Mounting direction
