Connecting a control unit at H7 and H8 power units
During installation the control unit needs to be connected with the power unit using fiber optic cables.
For a standard drive connect the fiber optic cables from the SDCS-DSL-H1x (control unit) to the
SDCS-OPL-H01(power unit).

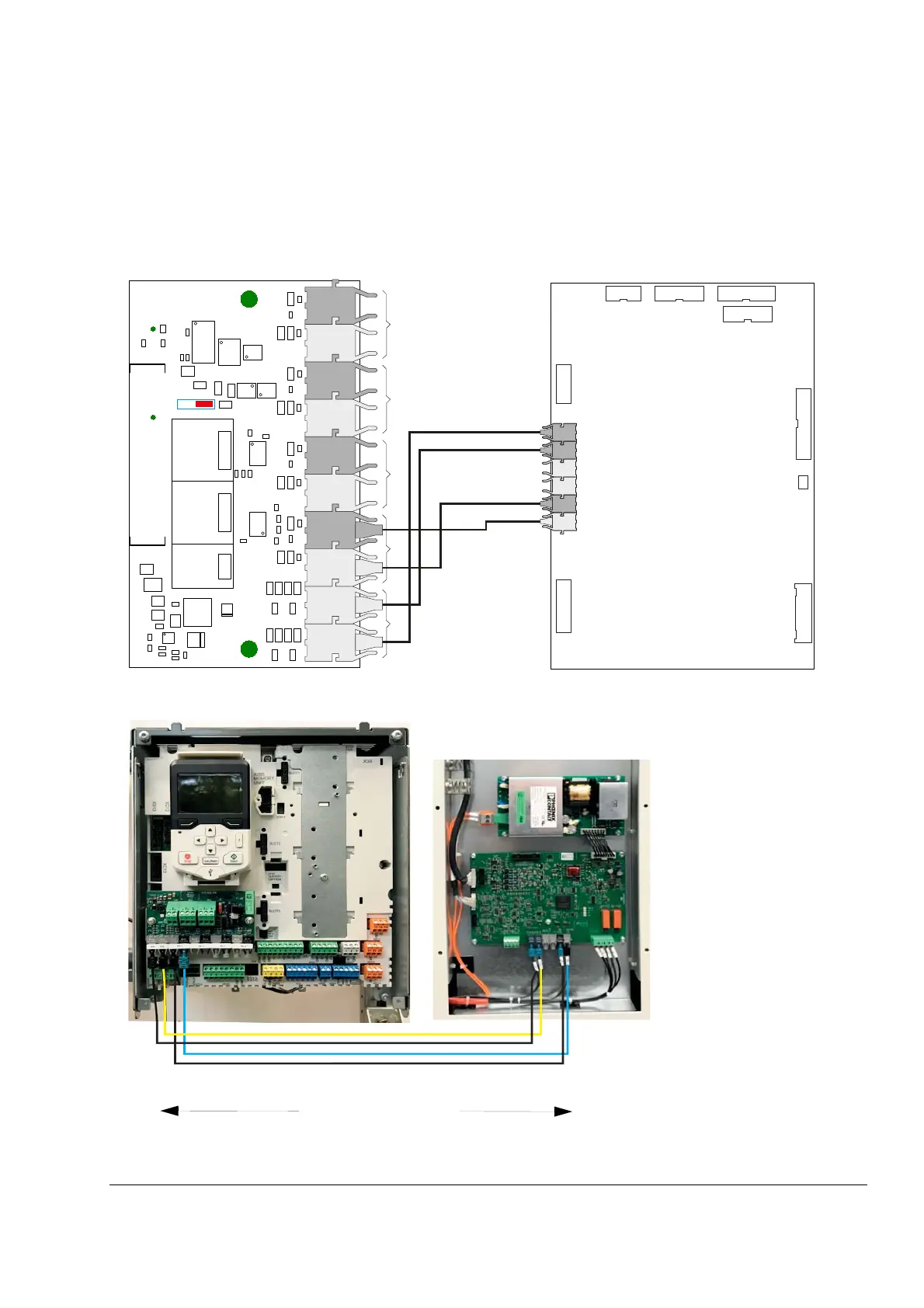

Connecting according to the drawing below:
X38
1
8
XSMC (X96)
1
BL_DSLH1x+OPL_001_a.ai
4
X300
1
6
2
2
25
XS13
XC13
1
2
1
2
16
15
XC12
1
2
16
15
X14
1
2
10
9
20
19
1
2
5
6
X350
X4
V11
STO in STO out Control
Rx
V12
Rx
V1
Rx
V21
Tx
V22
Tx
V2
Tx
1
4
V11
STO OPL CH1 OPL CH2 OPL CH3 OPL CH4
V12 V1 V2 V3 V4 V5 V6 V7 V8
X51
1 2 1 2 3 1 2 3
X52 X53
J1
ON
Control unit
Max. 5 m POF
Power unit

ABB DCS880 H1 Specifications

General

Rated current	Up to 5200A
Enclosure class	IP00, IP21, IP54
Mounting	Cabinet-mounted
Fieldbus communication	CANopen
Safety	STO (Safe Torque Off)
Output current	Up to 5200A
Communication protocols	PROFIBUS DP, CANopen
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Enclosure rating	IP00, IP21, IP54
Cooling method	Air or liquid cooling
