Technical data
68
3ADW000462R0301 DCS880 Hardware Manual e c

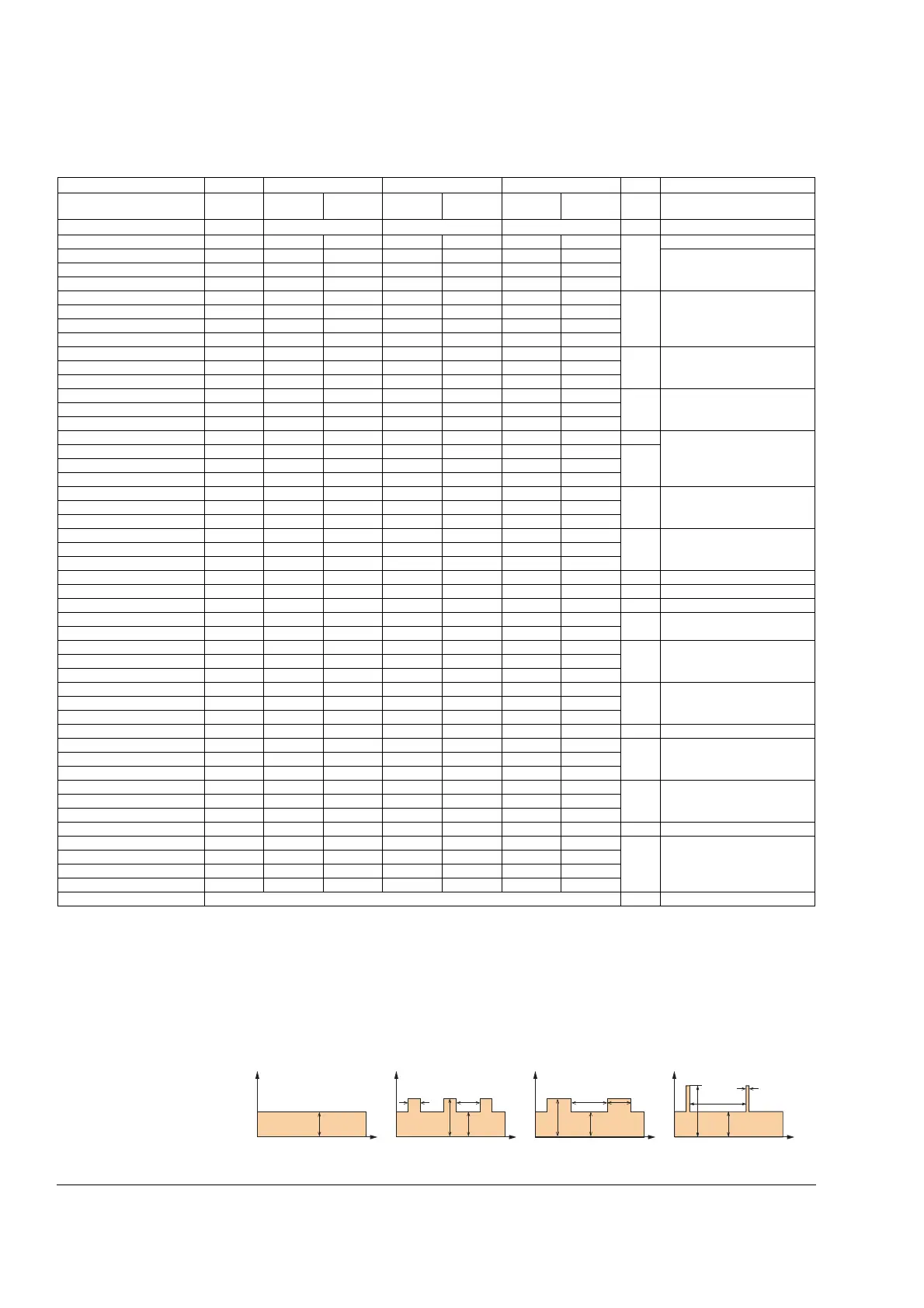

Current ratings - IEC regenerative converters (S02)
 This unit type can be used as large field exciter. Do not forget the SDCS-DSL-H1x (+S199).
A 10 % current de-rating is strongly recommended.
 1190 A
DC
for 35°C and 1140 A
DC
for 40°C ambient temperature.  As option.
Notes:
AC current I
AC
= 0.82 * I
DC
.
The ratings apply at ambient temperature of 40°C (104°F). For lower temperatures the H6, H7, H8 ratings are higher
(except I
max
). Use DriveSize for detailed dimensioning in case the ambient temperature is below 40°C (104°F) or the drive
is loaded cyclically.
Standard duty cycles
Unit type I
DC I
I
DC II
I
DC III
I
DC IV
Size Internal field current
4-Q converters
continuous
100 %
15 min
150 %
60 s
100 %
15 min
150 %
120 s
100 %
15 min
200 %
10 s
400 V / 525 V
[A] [A] [A] [A]
DCS880-S02-0025-04/05 25 22 33 21 31 20 40
H1
0.3 ... 6 A
DCS880-S02-0050-04/05 50 38 57 37 55 33 66
1 ... 12 ADCS880-S02-0075-04/05 75 60 90 59 88 54 108
DCS880-S02-0100-04/05 100 85 127 83 124 80 160
DCS880-S02-0150-04/05 150 114 171 110 165 100 200
H2 1 ... 18 A
DCS880-S02-0200-04/05 200 145 217 140 210 115 230
DCS880-S02-0250-04/05 250 185 277 180 270 165 330
DCS880-S02-0300-04/05 300 225 337 220 330 200 400
DCS880-S02-0350-04/05 350 275 412 265 397 245 490
H3 2 ... 25 ADCS880-S02-0450-04/05 450 350 525 340 510 310 620
DCS880-S02-0520-04/05 520 400 600 380 570 350 700
DCS880-S02-0680-04/05 680 525 787 510 765 475 950
H4 2 ... 30 ADCS880-S02-0820-04/05 820 630 945 610 915 565 1130
DCS880-S02-1000-04/05 1000 750 1125 725 1087 660 1320
DCS880-S02-1190-04/05
1190 
860 1290 835 1253 745 1490 H5
25 A 
+S164
DCS880-S02-1200-04/05 1200 888 1332 872 1308 764 1528
H6DCS880-S02-1500-04/05 1500 1200 1800 1156 1734 1104 2208
DCS880-S02-2000-04/05 2000 1479 2219 1421 2132 1361 2722
DCS880-S02-2050-05 2050 1550 2325 1480 2220 1450 2900
H7 -DCS880-S02-2500-04/05 2500 2000 3000 1930 2895 1790 3580
DCS880-S02-3000-04/05 3000 2330 3495 2250 3375 2080 4160
DCS880-S02-3300-04/05 3300 2416 3624 2300 3450 2277 4554
H8 -DCS880-S02-4000-04/05 4000 2977 4466 2855 4283 2795 5590
DCS880-S02-5200-04/05 5200 3800 5700 3669 5504 3733 7466
600 V / 690 V
DCS880-S02-0320-06 320 256 384 246 369 235 470 H3 -
DCS880-S02-0650-06 650 514 771 508 762 462 924 H4 -
DCS880-S02-0900-06/07 900 684 1026 670 1005 594 1188
H6
25 A 
+S164
DCS880-S02-1500-06/07 1500 1200 1800 1104 1656 1104 2208
DCS880-S02-2050-06/07 2050 1520 2280 1450 2175 1430 2860
H7 -DCS880-S02-2500-06/07 2500 1940 2910 1870 2805 1740 3480
DCS880-S02-3000-06/07 3000 2270 3405 2190 3285 2030 4060
DCS880-S02-3300-06/07 3300 2416 3624 2300 3450 2277 4554
H8 -DCS880-S02-4000-06/07 4000 3036 4554 2900 4350 2950 5900
DCS880-S02-4800-06/07 4800 3734 5601 3608 5412 3700 7400
800 V
DCS880-S02-1900-08 1900 1500 2250 1430 2145 1400 2800
H7 -DCS880-S02-2500-08 2500 1910 2865 1850 2775 1710 3420
DCS880-S02-3000-08 3000 2250 3375 2160 3240 2000 4000
DCS880-S02-3300-08 3300 2655 3983 2540 3810 2485 4970
H8 -DCS880-S02-4000-08 4000 3036 4554 2889 4334 2933 5866
DCS880-S02-4800-08 4800 3734 5601 3608 5412 3673 7346
990 V
DCS880-S02-2050-10 2050 1577 2366 1500 2250 1471 2942
H8 -
DCS880-S02-2600-10 2600 2000 3000 1900 2850 1922 3844
DCS880-S02-3300-10 3300 2551 3827 2428 3642 2458 4916
DCS880-S02-4000-10 4000 2975 4463 2878 4317 2918 5836
1190 V Data on request
100%
t
150%
100%
15 min60 s
I
DCI
150%
100%
15 min 120 s
10 s
200%
100%
15 min
DZ_LIN_054_duty cycle_a.ai
t
I
DCII
t
I
DCIII
t
I
DCIV
