ABB DCS880 H1 User Manual

Accessories
119
3ADW000462R0301 DCS880 Hardware Manual e c

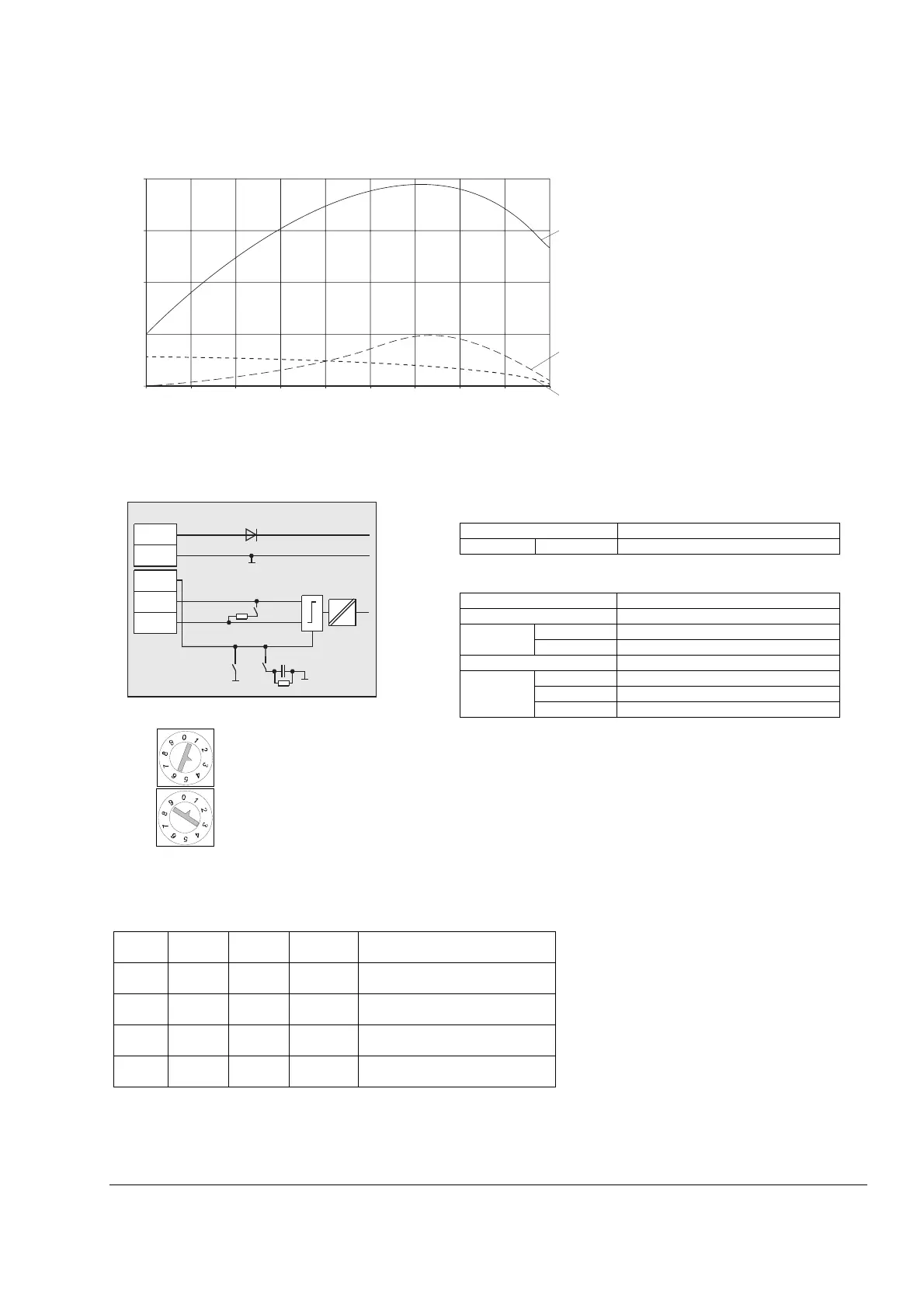

Voltage ripple of U
DC
voltage depending on operation modes
DCSLink communication
The field converter is controlled from armature converter via DCSLink based on CAN hardware.
Node address is set by:S800 digit 0 (node address 00 is not possible!)
S801 digit 10
Same node address must be selected in the corresponding armature converter.
Example: Node address = 13 ==> S800 = 3 and S801 = 1
The communication speed is set by S1100
S1100:6 S1100:5 S1100:4 Baudrate
[kBaud]
Selection in armature converter,
parameter (94.02)
OFF OFF OFF 20 0
OFF OFF ON 50 1
OFF ON OFF 125 2
OFF ON ON 250 3
ON OFF OFF 500 4
ON OFF ON 800 5
ON ON OFF 888 6
ON ON ON 1000 7
DZ_LIN_014_Spg-well_a.ai
Voltage ripple Vsec
U
DC
Field
Single-phase, half-controlled
3-phase, half-controlled
3-phase, full-controlled
1
0.75
0.5
0.25
0
0.1 0.4 0.7 1
X1:1
2
SF_FEX4_002_DCSLink_a.dsf
X3:1
2
3
24 V / 200 mA
S1100:1
CANL
CANH
S1100:3
GNDB
S1100:2
SDCS-FEX-4
Termination 200 kOhm
Incoming power Remarks
24 V 200 mA 24 V grounded via X51 of SDCS-DSL-4
DSL communication Remarks
Bus termination
S1100: 1 = ON 120 Ohm
1 = OFF No termination
Ground termination
S1100: 2 = ON 200 kOhm R-C ground termination
3 = ON 0 Ohm ground termination
2, 3 = OFF No termination
S800
S801
Switch_0-9.dsf

ABB DCS880 H1 Specifications

General

Rated current	Up to 5200A
Enclosure class	IP00, IP21, IP54
Mounting	Cabinet-mounted
Fieldbus communication	CANopen
Safety	STO (Safe Torque Off)
Output current	Up to 5200A
Communication protocols	PROFIBUS DP, CANopen
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Enclosure rating	IP00, IP21, IP54
Cooling method	Air or liquid cooling
