ABB DCS880 H1 User Manual

Technical data
75
3ADW000462R0301 DCS880 Hardware Manual e c

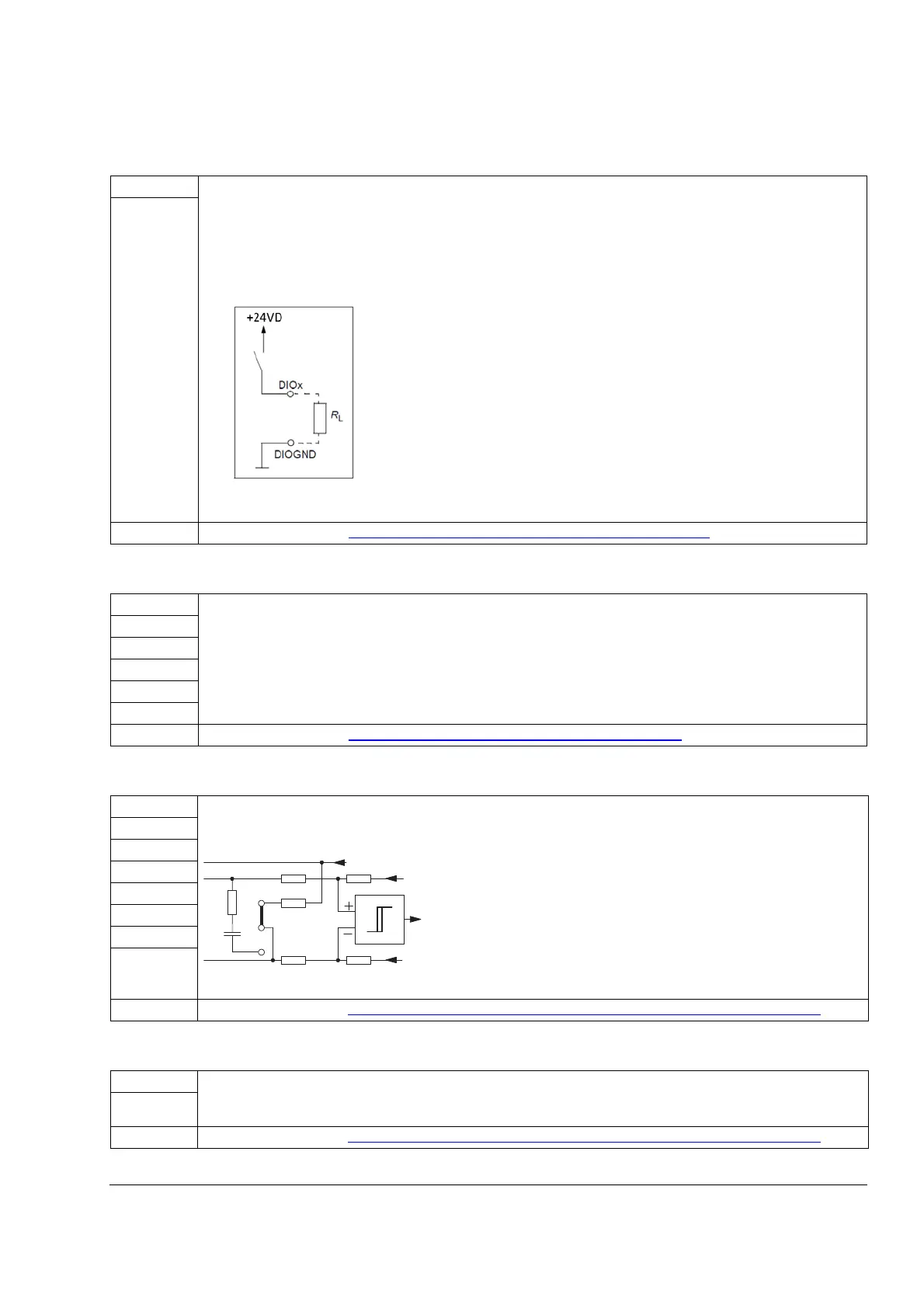

XDIO: Digital inputs / outputs
XDI: Digital inputs
XENC: Encoder
XTAC: Analog tacho
DIO1 Maximum wire size 2.5 mm
2
As input:
+24 V
DC
logic levels: low < 5 V
DC
, high > 15 V
DC
R
in
= 2 k
Filter: 0.25 ms
As output:
Total output current from +24VD is limited to 200 mA
Filter: 0.04 ms
Related ground is DIOGND
DIO2
Parameter settings see DCS880 Firmware Manual
Group 11 Standard DIO, FI, FO
DI1 Maximum wire size 2.5 mm
2
+24 V
DC
logic levels: low < 5 V
DC
, high > 15 V
DC
R
in
= 2 k
Hardware filter: 0.04 ms
Digital filter up to 8 ms
DI1 ... DI5: Related ground is DICOM
DI6: Related ground is DIOGND
DI2
DI3
DI4
DI5
DI6
Parameter settings see DCS880 Firmware Manual
Group 10 Standard DI, RO
A+ OnBoard encoder interface supply voltage 5 V or 24 V (non isolated) depending on J4D
OnBoard encoder interface type differential or single ended depending on J4A ... J4C
Maximum wire size 2.5 mm
2
A-
B+
B-
Z+
Z-
EGND
+VENC
Parameter settings see DCS880 Firmware Manual
Group 94 OnBoard speed feedback configuration
AITACH+ OnBoard tacho interface
Maximum wire size 2.5 mm
2
Differential input max. voltage 8 ... 270 V
AITACH-
Parameter settings see DCS880 Firmware Manual
Group 94 OnBoard speed feedback configuration
1k0 4k7
1k0 4k7
+5V
121
W
100 nF
10k
+5V
+5V or +24V
3
2
1
J4A
SDCS-CON-H01 ENCODER INPUT A

ABB DCS880 H1 Specifications

General

Rated current	Up to 5200A
Enclosure class	IP00, IP21, IP54
Mounting	Cabinet-mounted
Fieldbus communication	CANopen
Safety	STO (Safe Torque Off)
Output current	Up to 5200A
Communication protocols	PROFIBUS DP, CANopen
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Enclosure rating	IP00, IP21, IP54
Cooling method	Air or liquid cooling
