Technical data
83
3ADW000462R0301 DCS880 Hardware Manual e c
Daisy chain DPI-H01 kit (H1 ... H8)
Daisy chain adapters are used to connect several drives to one control panel or to a PC via a control
panel. Maximum of 32 nodes are possible. The control panel / PC is the master, while the drives
equipped with a daisy chain adapter are followers.
Note:
The DPI-H01 kit can be ordered together with the drives using pluscode +J428.

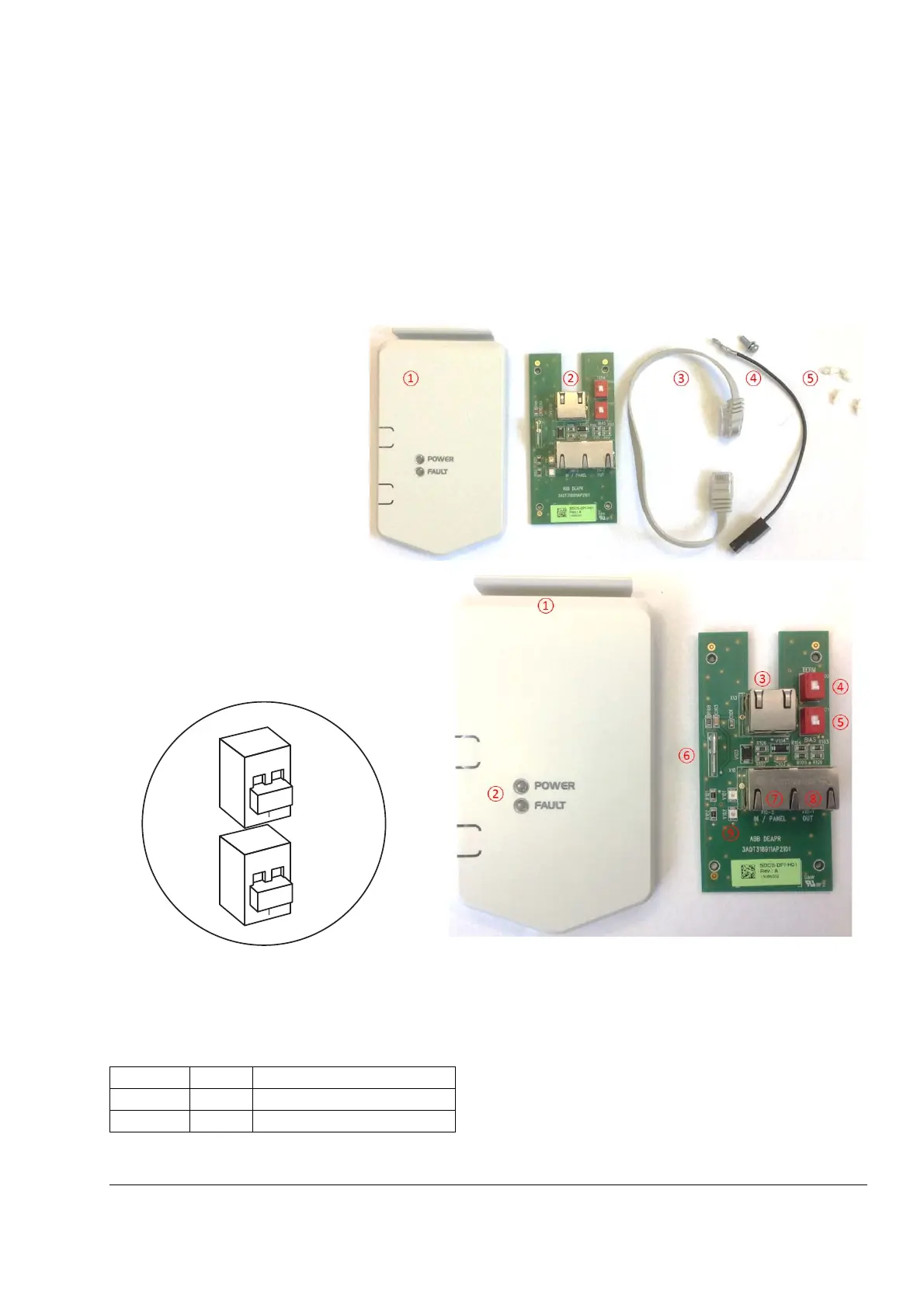

Contents of the kit
①Plasticcover.
② SDCS-DPI-H01 adapter.
③Patch cable.
④Grounding cable plus screw.
⑤ Stand offs.
①Clip to attach the plasticcover.
② Status LEDs via light pipes.
③X13 for the patch cable to the unit.
④Termination switch (S100).
⑤ Bias switch (S101).
⑥ X1 for grounding.
⑦ X10-1 (IN / PANEL) for control panel.
⑧ X10-2 (OUT) for the next unit.
⑨ Status LEDs:
Name Color Description
POWER Green The unit is powered
FAULT Red The unit has an active fault
TE
R
M
S1
00
S
1
01
ON
ON
BE_STE_001_term S10x_a.ai

ABB DCS880 H1 Specifications

General

Rated current	Up to 5200A
Enclosure class	IP00, IP21, IP54
Mounting	Cabinet-mounted
Fieldbus communication	CANopen
Safety	STO (Safe Torque Off)
Output current	Up to 5200A
Communication protocols	PROFIBUS DP, CANopen
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Enclosure rating	IP00, IP21, IP54
Cooling method	Air or liquid cooling
