ABB DCS880 H1 User Manual

Mechanical installation
23
3ADW000462R0301 DCS880 Hardware Manual e c
Recommended air entry / exit sizes in case of filters (IP22)
Terminal options for converter modules size H1 ... H5
There are different options to protect and connect the terminals of converter
modules size H1 ... H5.

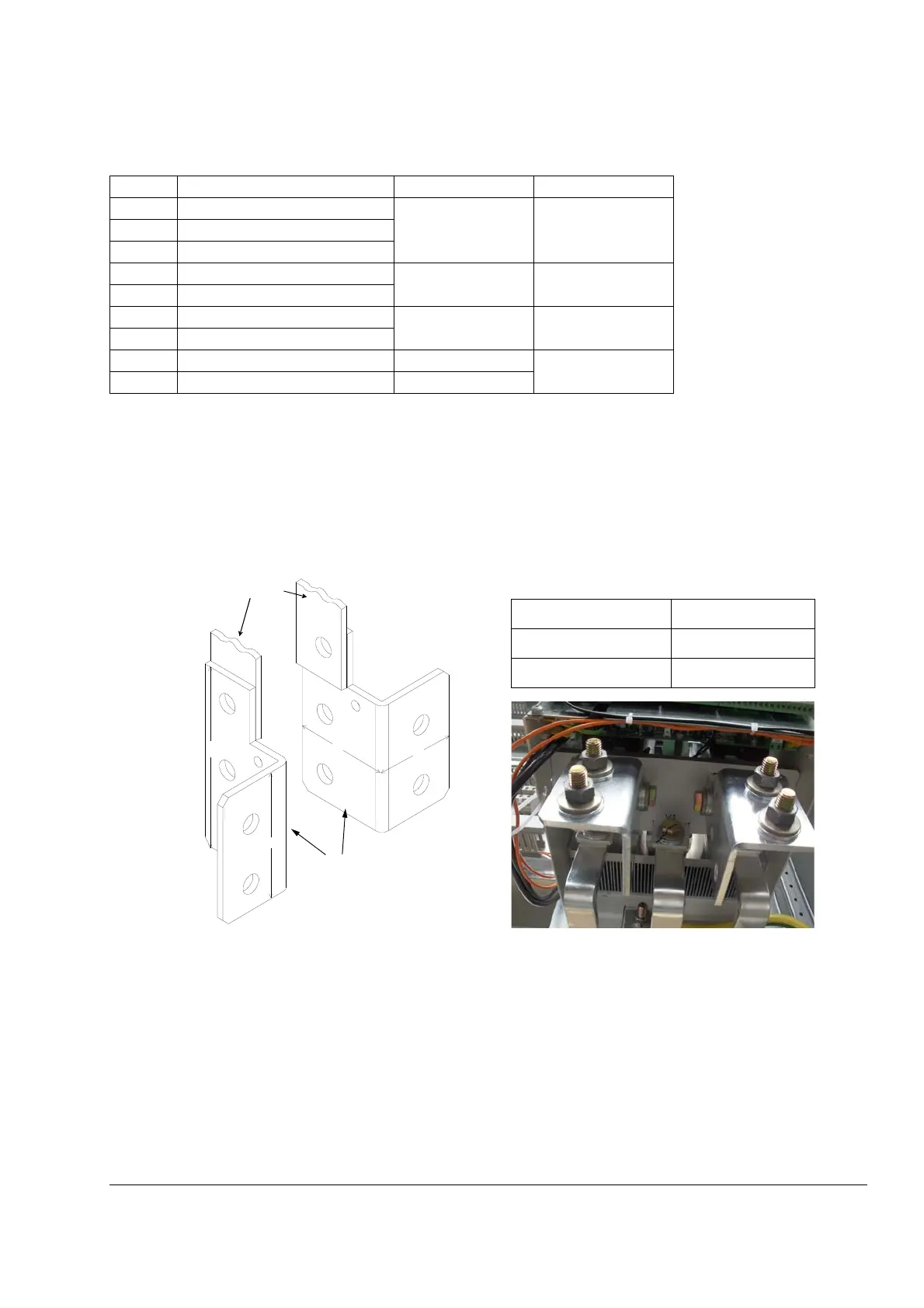

Connection of H4 and H5 converter module DC terminals
In some cases it is beneficial to use lug bars for easy DC cable connection.
Size Nominal converter current [A] Air entry size [m
2
] Air exit size [m
2
]
H1 20 ... 100 0.22 0.11
H2 135 ... 300
H3 290 ... 350
H3 405 ... 520 0.31 0.15
H4 590 ... 1000
H5 1190 0.22 0.11
H6 900 ... 2000
H7 1900 ... 3000 0.44 0.31
H8 2050 ... 5200 0.52
DC terminals of
D4 module
135
95
71
60

14
7.35
Id No. Remark
3ADV280706P0001 right
3ADV280706P0002 left
Bottom view
Lug bars
of converter

ABB DCS880 H1 Specifications

General

Rated current	Up to 5200A
Enclosure class	IP00, IP21, IP54
Mounting	Cabinet-mounted
Fieldbus communication	CANopen
Safety	STO (Safe Torque Off)
Output current	Up to 5200A
Communication protocols	PROFIBUS DP, CANopen
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Enclosure rating	IP00, IP21, IP54
Cooling method	Air or liquid cooling
