3ADW000462R0301 DCS880 Hardware Manual e c

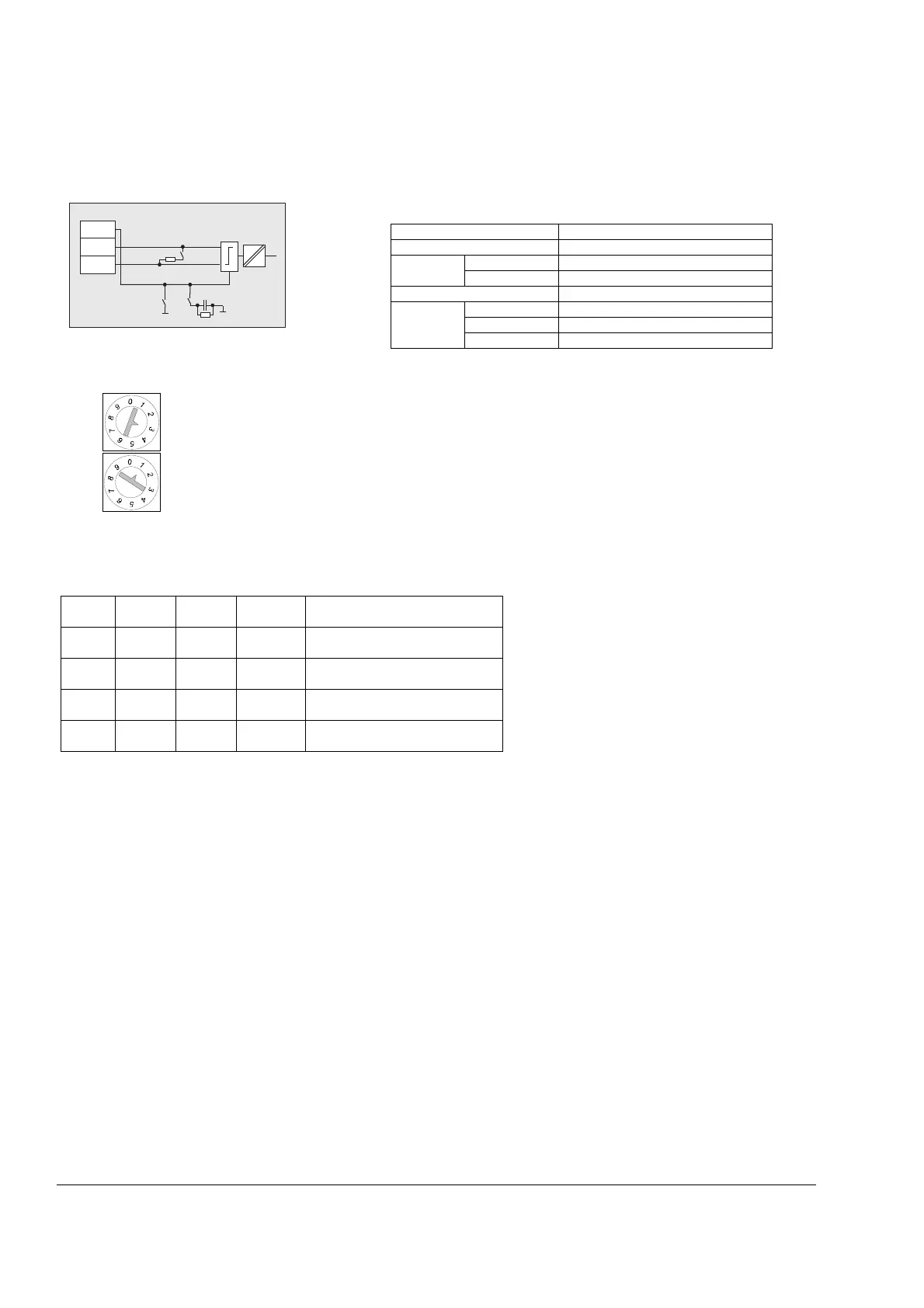

DCSLink communication
The field converter is controlled from armature converter via DCSLink based on CAN hardware.
Node address is set by:S800 digit 0 (node address 00 is not possible!)
S801 digit 10
Same node address must be selected in the corresponding armature converter.
Example: Node address = 13 ==> S800 = 3 and S801 = 1
The communication speed is set by S1100
RS232-Port
The RS232 interface is used for download the 'Field exciter firmware package'.
The firmware download is activated by setting S2:1-2 before the auxiliary voltage is switched ON.
Field exciter mode is S2:3-4 (default).
S1100:6 S1100:5 S1100:4 Baudrate
[kBaud]
Selection in armature converter,
parameter (94.02)
OFF OFF OFF 20 0
OFF OFF ON 50 1
OFF ON OFF 125 2
OFF ON ON 250 3
ON OFF OFF 500 4
ON OFF ON 800 5
ON ON OFF 888 6
ON ON ON 1000 7
SF_DCF_002_DCSLink_b.ai
X2:3
SDCS-FEX-81 / 82
S1100:1
CANL
CANH
S1100:3
GNDB
S1100:2
4
5
Termination 200 kOhm
DSL communication Remarks
Bus termination
S1100: 1 = ON 120 Ohm
1 = OFF no termination
Ground termination
S1100: 2 = ON 200 kOhm R-C ground termination
3 = ON 0 Ohm ground termination
2, 3 = OFF no termination
S800
S801
Switch_0-9.dsf
