Use double shielded twisted-pair cable ( 100 , for example, PROFIBUS compatible cable) for the
wiring. For best immunity, high quality cable is recommended. Keep the cable as short as possible.
The maximum complete length of the link is 50 meters. Avoid unnecessary loops and running the link
near power cables.

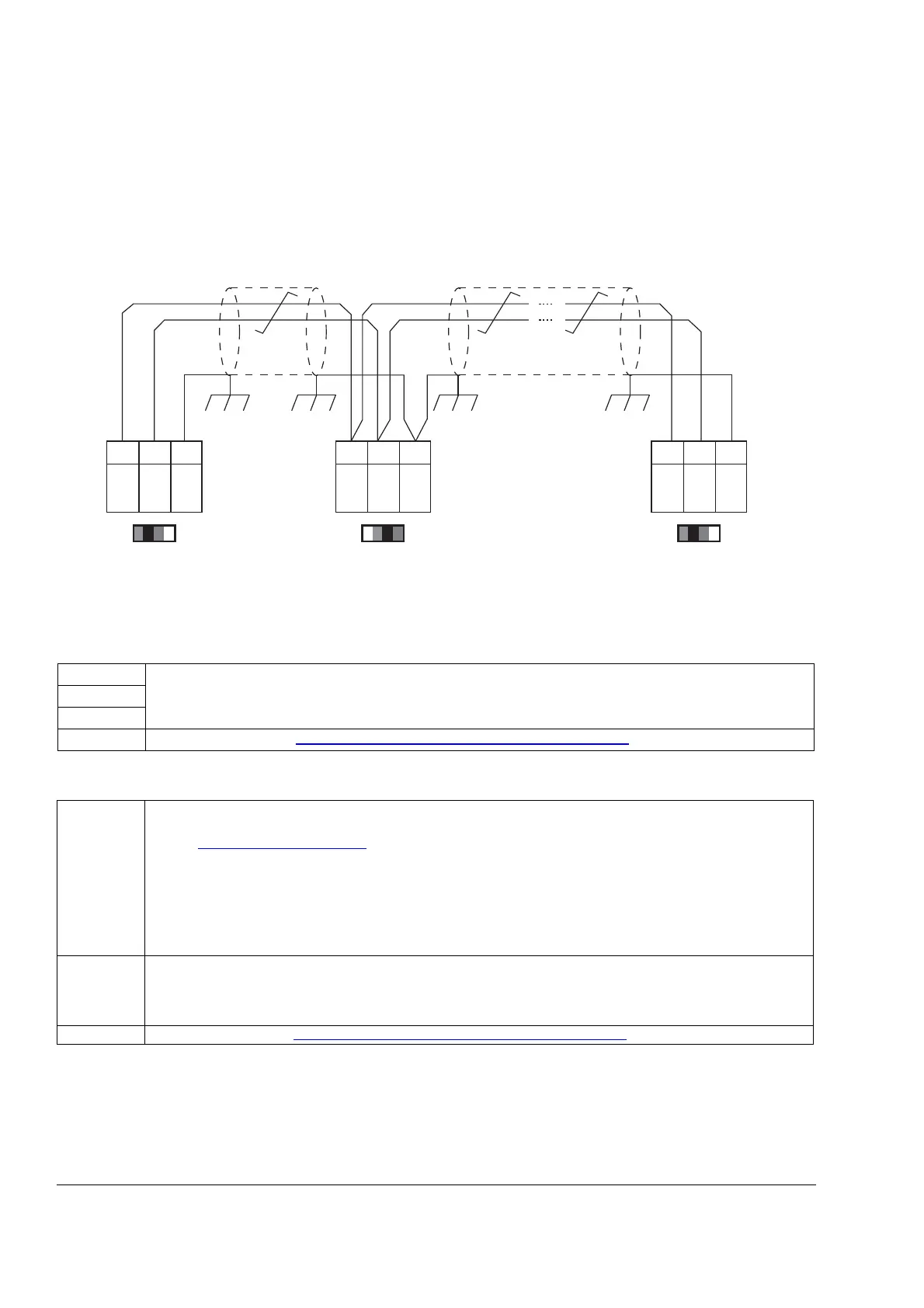

The following diagram shows the wiring of the drive-to-drive link.
RO1, RO2, RO3: Relay outputs
XD24: Digital interlock
NC 250 V
AC
/ 30 V
DC
, 2 A
Maximum wire size 2.5 mm
2
Varistor protected
COM
NO
Parameter settings see DCS880 Firmware Manual
Group 10 Standard DI, RO
DIL The digital interlock works like a normal digital input and has no special function in the DCS880. It can be
selected for example as the source for an emergency stop command or any other external event.
See the DCS880 Firmware Manual
for more information.
Maximum wire size 2.5 mm
2
+24 V
DC
logic levels: low < 5 V
DC
, high > 15 V
DC
R
in
= 2 k
Hardware filter: 0.04 ms
Digital filter up to 8 ms
Related ground is DICOM
+24VD +24 V
DC
, 200 mA
Total load power of these outputs is 4.8 W (200 mA, 24 V
DC
) minus the power taken by DIO1 and DIO2
Maximum wire size 2.5 mm
2
Related ground is DIOGND
Parameter settings see DCS880 Firmware Manual
Group 10 Standard DI, RO
SF_880_008_DCT_drive2drive_b.ai
BGND
XD2D
A
B
J3
1
2
3
BGND
XD2D
A
B
J3
1
2
3
BGND
XD2D
A
B
J3
1
2
3
terminated terminatednot terminated, default
