ABB DCS880 H1 User Manual

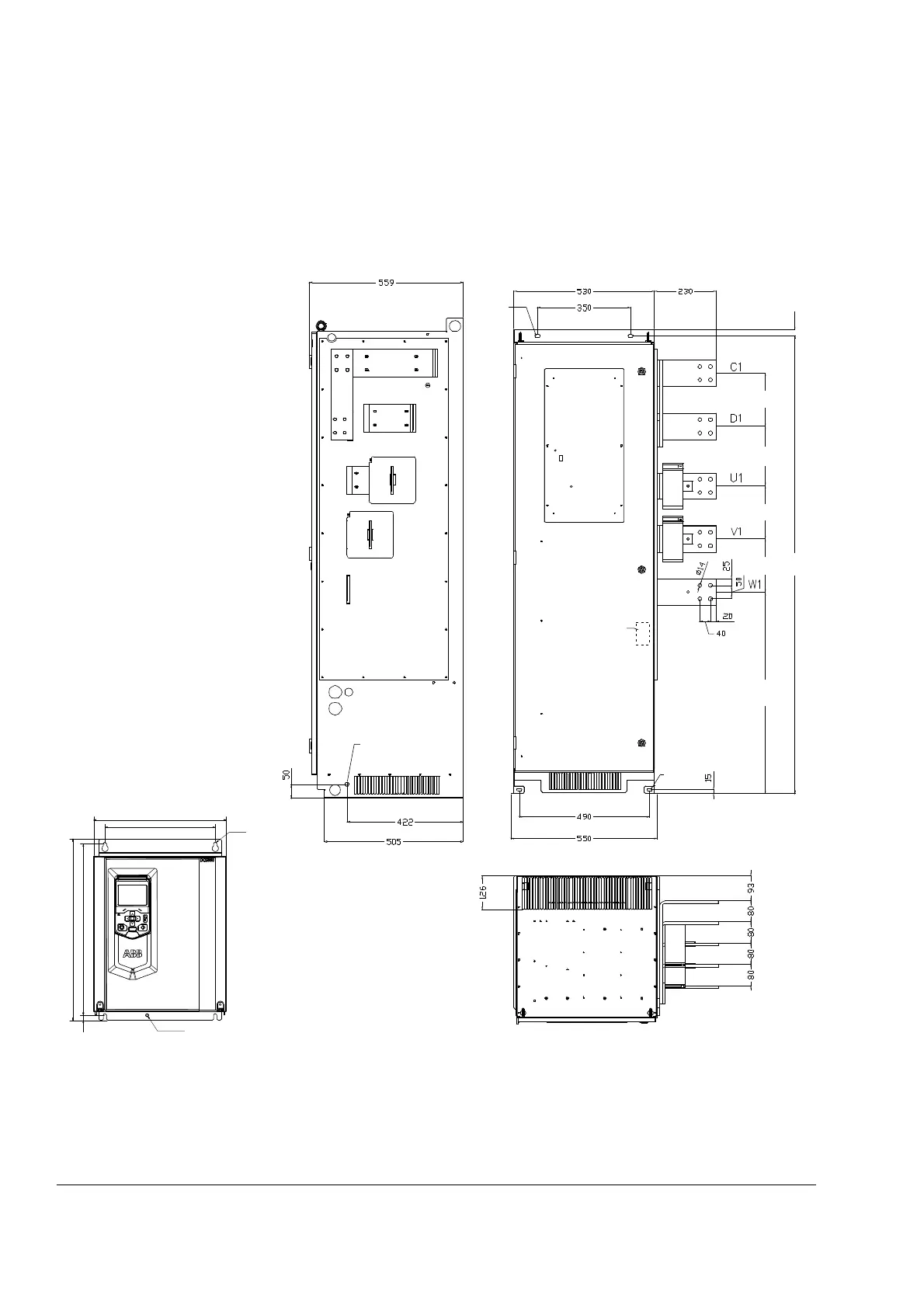

Dimensions and weights
114
3ADW000462R0301 DCS880 Hardware Manual e c
Size H8 righthand
(+P906)
DCS880-S0b-4800-0dR
DCS880-S0b-5200-0dR
With external control unit
(+P906)
Weight appr. 315 kg
Control unit
Power unit
225
270
350
370,5
10
,
5
Earthing M6
MG_880_007_Control unit_a.ai
For M6
*
MG_800_007_D7_a.ai
200225200200
1725
759.5
25

Pressure switch
Earthing M12
For M10
For M10
DCS880
Busbars in mm:
AC and DC: 100 x 10

ABB DCS880 H1 Specifications

General

Rated current	Up to 5200A
Enclosure class	IP00, IP21, IP54
Mounting	Cabinet-mounted
Fieldbus communication	CANopen
Safety	STO (Safe Torque Off)
Output current	Up to 5200A
Communication protocols	PROFIBUS DP, CANopen
Protection features	Overcurrent, overvoltage, undervoltage, overtemperature
Enclosure rating	IP00, IP21, IP54
Cooling method	Air or liquid cooling
