3.4.5. Oil change, gearbox, axis 4
3HAC026876-001 Revision: F174
© Copyright 2007-2010 ABB. All rights reserved.
3.4.5. Oil change, gearbox, axis 4
Location of gearbox

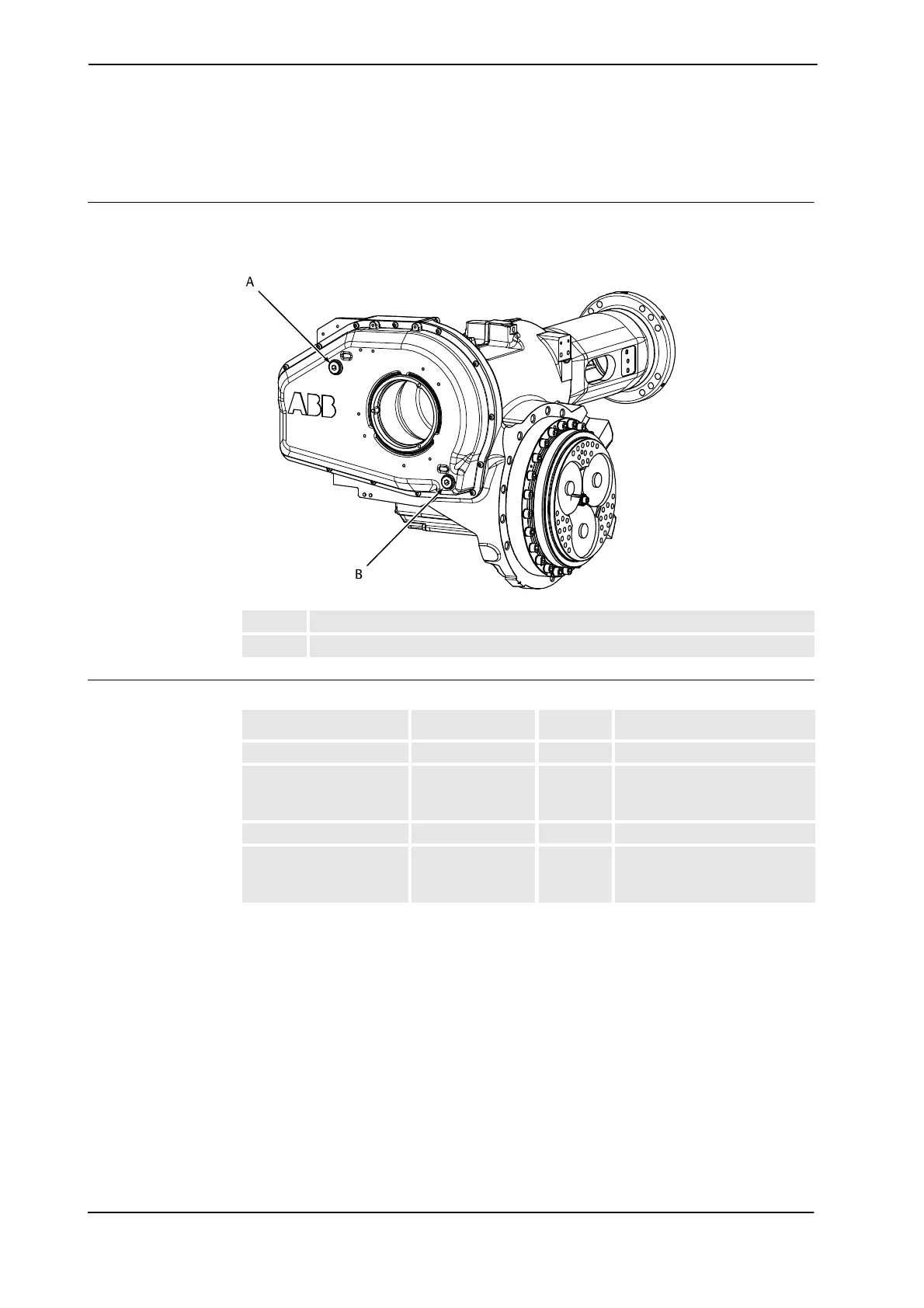

The axis 4 gearbox is located in the rearmost part of the upper arm as shown in the figure
below.
xx0200000231
Required equipment
A Oil plug, filling
B Oil plug, draining
Equipment, etc. Art. no. Amount Note
Lubricating oil 11712016-604 8,100 ml Mobilgear 600 XP 320
Oil exchange equipment 3HAC021745-001 The content is defined in the
section Special tools on page
410.
Oil collecting vessel - Capacity: 9,000 ml.
Standard toolkit - The content is defined in the
section Standard toolkit on
page 409.
