Refitting rear shafts Design 2

The following configuration is used for refitting of the rear shafts Design 2.

Configuration:

•4

•K

•G

•C

•8

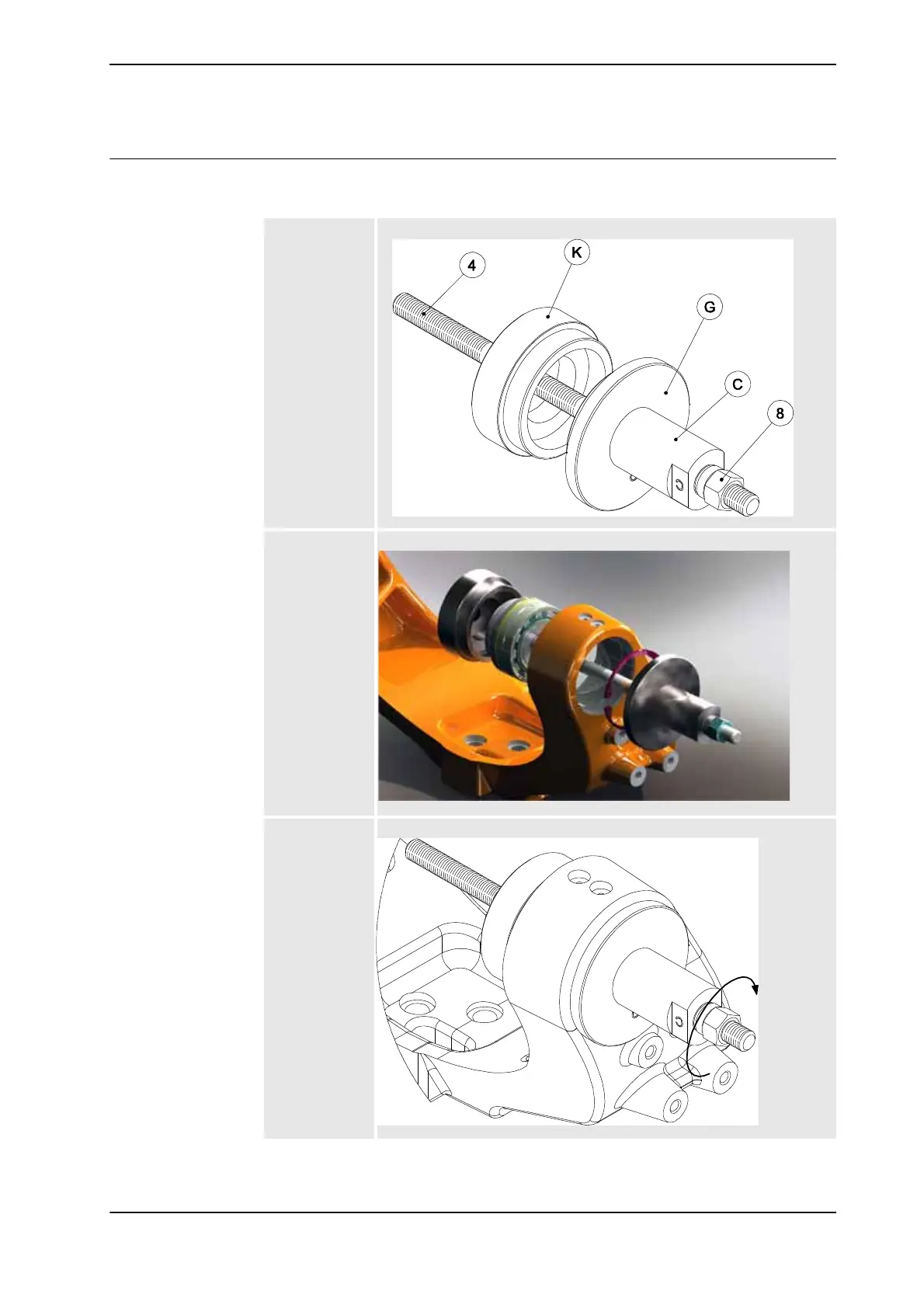

xx0900000049

1) Insert the

threaded bar (4)

through the new

bearing.

2) Assemble the

Press tool

D=100 (K).

3) Assemble the

Press tool

D=110 (G).

4) Assemble the

Slide hammer /

Distance (C).

5) Assemble the

Nut M16 (8)

xx0900000061

xx0900000050

Continued
