SM500F
Field mountable paperless recorder 7 Configuration
IM/SM500F Rev. Z 115
7.9 Functions
7.9.1 Custom Linearizers

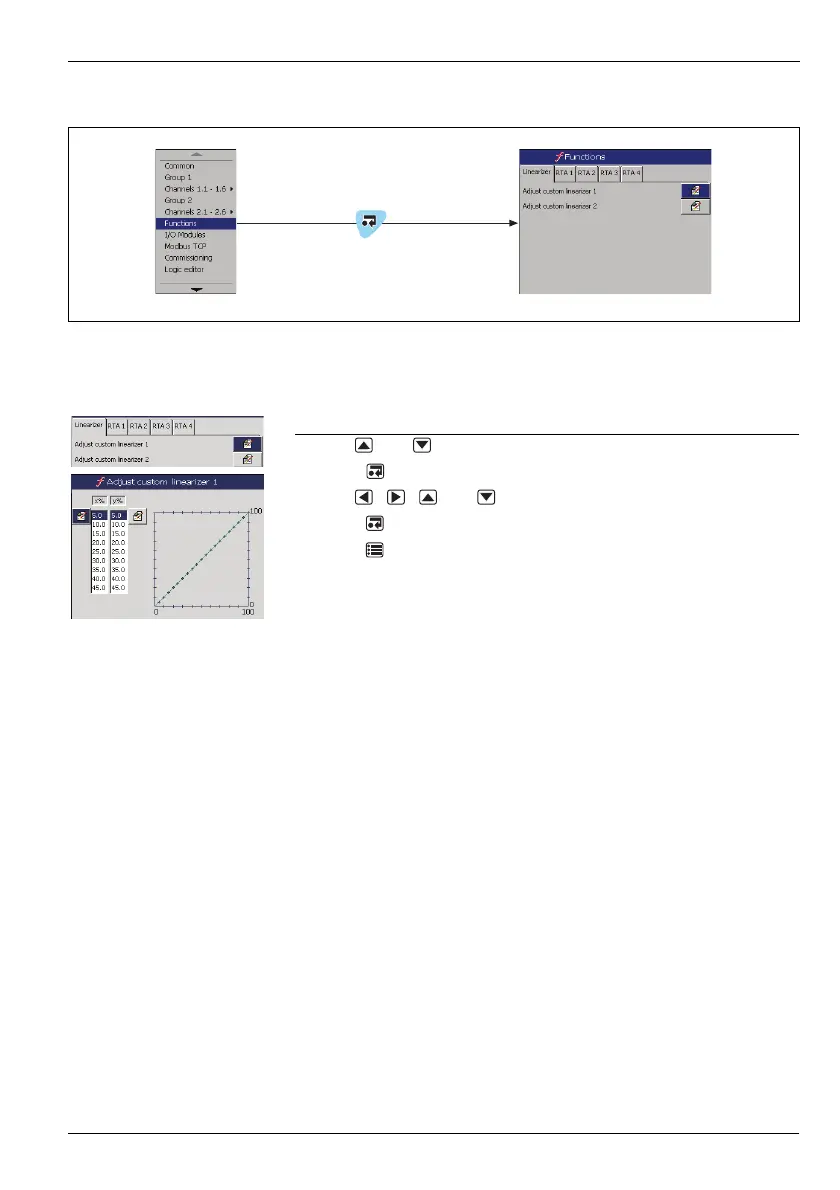

Fig. 7.16 Functions Configuration
Use the and keys to highlight the linearizer to be adjusted.
Press the key to open the 'Adjust custom linearizer' screen.
Use the , , and keys to highlight the point to be modified.
Press the key to open the digipad to change the position of that point.
Press the key to return to the Functions screen.
Each linearizer has 20 breakpoints. Both X and Y values are set as
percentages.
Custom linearizers can be applied to any analog input by selecting them
as the linearizer type for that input – see 'Linearizer Type', page 96.
Note.
X is input to the linearizer expressed as a percentage of the
electrical range.
Y is output expressed as a percentage of the engineering range.
