SM500F
Field mountable paperless recorder 7 Configuration
66 IM/SM500F Rev. Z
7.3 Configuration Level Access
To configure the recorder when 'Configuration security' is set to the factory default setting of 'Password
protected':
1. Access the Configuration Level – see Figs. 7.1 and 7.2, pages 66 and 67 respectively.
2. Make changes to parameters as detailed in Figs 7.5 and 7.6 (pages 70 and 71 respectively) and
on-line help.
To configure the recorder when 'Configuration security' is set to 'Internal switch protected':
1. Set the internal security switch to the 'Configuration Level Not Protected' position – see Fig. 7.3,
page 68.
2. Access the Configuration Level – see Figs. 7.1 and 7.2, pages 66 and 67 respectively.
3. Make changes to parameters as detailed in Figs 7.5 and 7.6 (pages 70 and 71 respectively) and
on-line help.

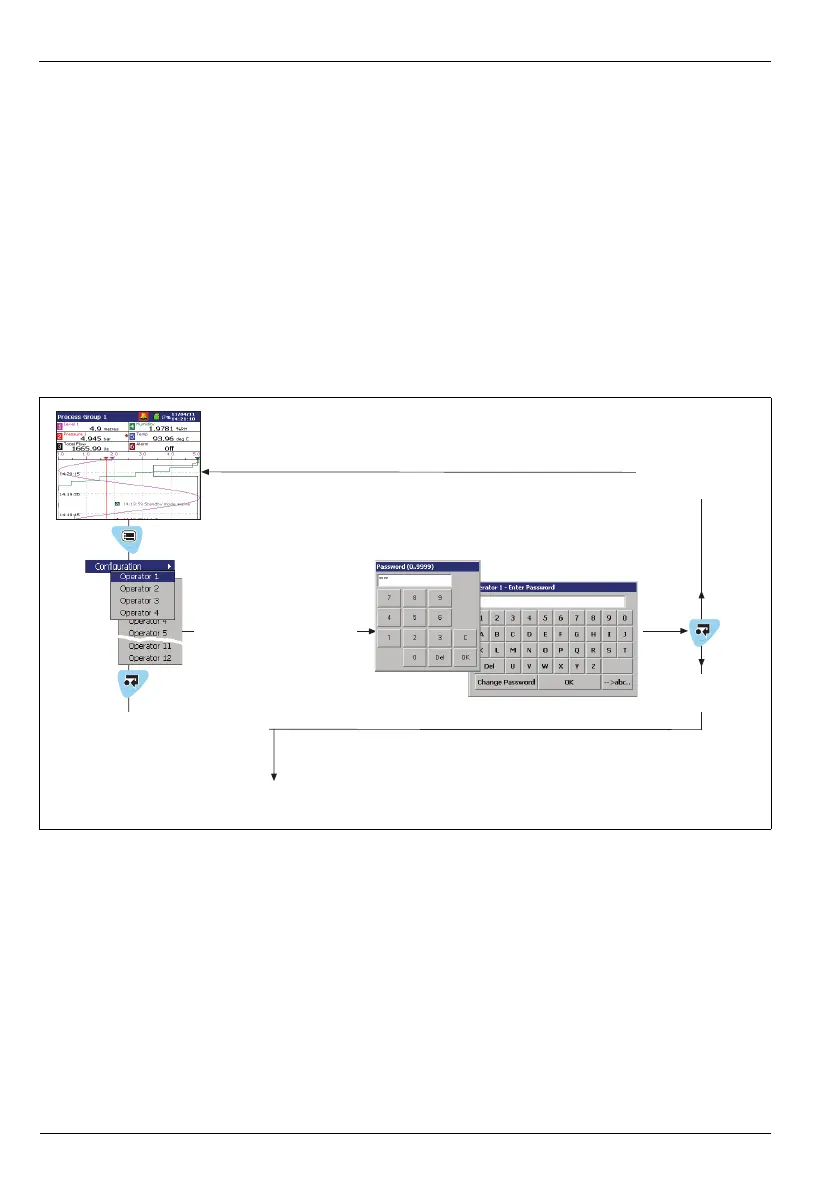

Fig. 7.1 Accessing the Configuration Level
Configuration Level
Protected
(see Section 7.2, page 65)
Configuration Level Unprotected
(see Section 7.2, page 65)
Continued in Fig. 7.2 on next page
Displayed only if
'Security system' is set
to 'Basic' – see
Section 7.6.4, page 78
Displayed only if
'Security system' is set
to 'Advanced' – see
Section 7.6.4, page 78
Invalid Password
Entered
Valid Password
Entered
To Next Page
