SM500F
Field mountable paperless recorder 2 Installation
IM/SM500F Rev. Z 11
2.2.1 Panel-Mounting
Referring to Fig. 2.4, secure the recorder in a panel as follows:
a Cut the correct sized hole in the panel – see Fig. 2.3, page 10.
b Insert the recorder into the panel cut-out.
c Screw one clamping screw into the left-hand bracket until 10 to 15mm of the thread protrudes from
the other side of the bracket and position one clamp over the end of the thread.
d Holding the assembly together, position the bracket into the left-hand recess on the rear of the
recorder case and secure with the bracket securing screw. Ensure that the plastic washer remains in
the position fitted.
Repeat instructions
3 and 4 for the right-hand panel clamp assembly.
e Tighten the clamping screws evenly and securely by hand.
Note. If removal of knockouts is required, refer to Section 2.3.1, page 15.
Note. This is critical in order to ensure proper compression of the panel seal and achieve the
IP66/NEMA 4X hosedown rating.

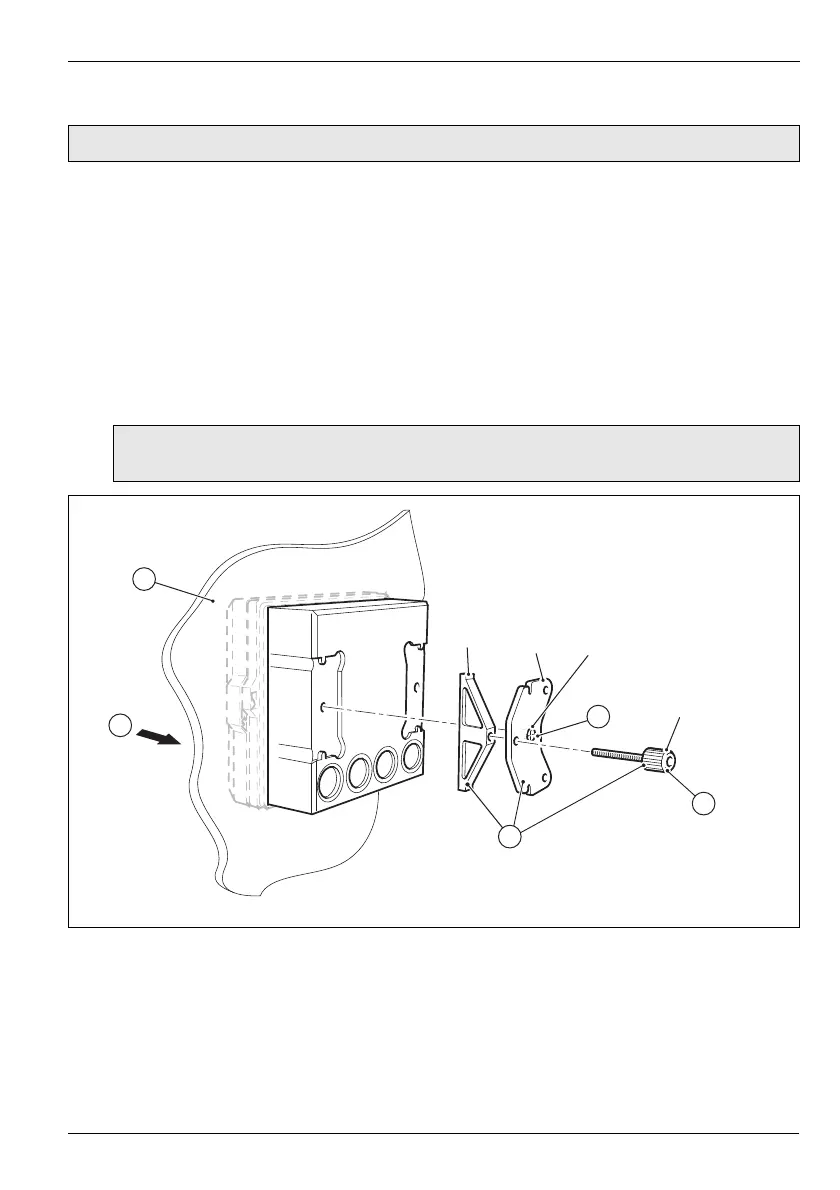

Fig. 2.4 Installing the recorder – Panel-Mounting
2
1
5
3
Clamp
Bracket
Clamping Screw
Bracket
Securing
Screw
Left-hand panel clamp assembly only shown.
Right-hand assembly omitted for clarity
4
