SM500F
Field mountable paperless recorder 7 Configuration
IM/SM500F Rev. Z 75

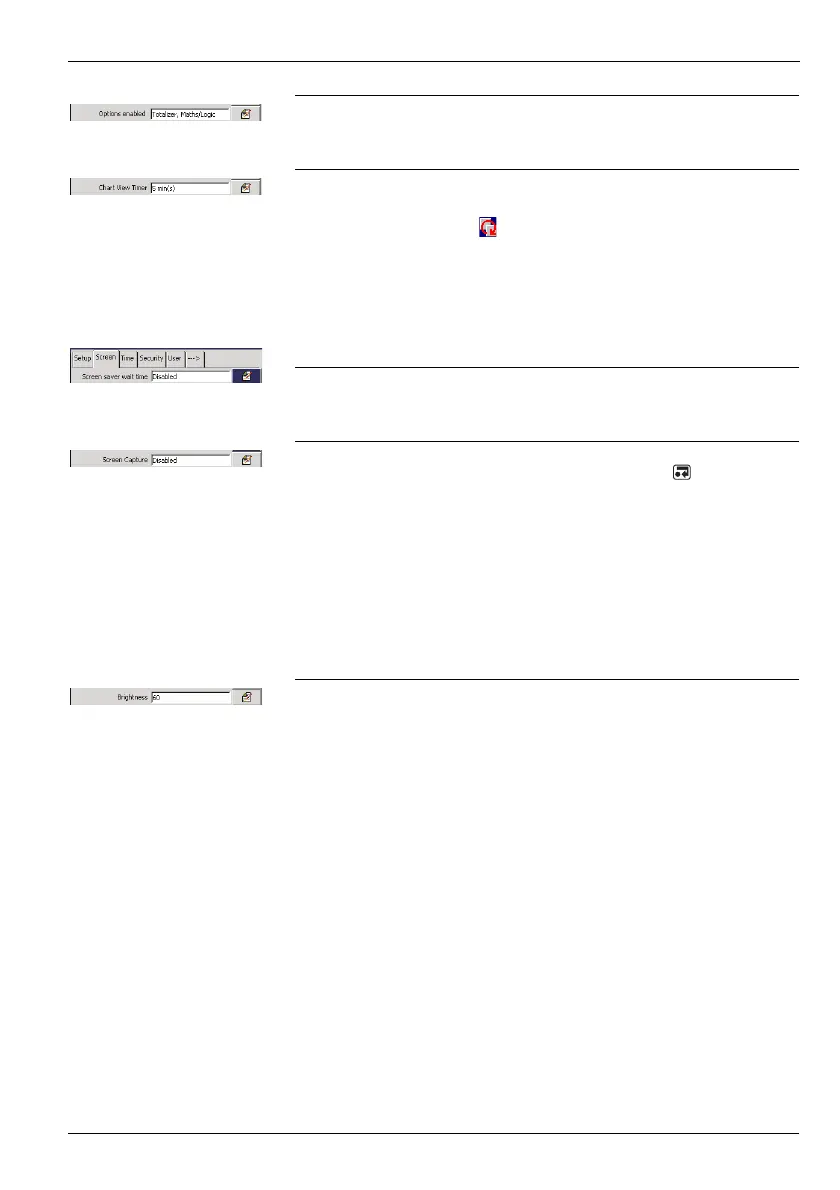

7.6.2 Screen
Displays the optional functionality (Totalizers and/or Math & Logic and/or
Batch recording) enabled on the recorder.
If set to anything other than 'Off', initiates AutoView Scroll automatically
(for the Chart view only) after the time selected has elapsed.
The AutoView Scroll icon ( ) is displayed in the status bar at the top of
the screen and the Chart view for each configured process group is
displayed in turn for 20 seconds. Press any key to cancel AutoView Scroll.
Select the waiting time between the last key press and activation of the
screen saver.
When set to 'Enabled', the user can save an image of any Operator
screen to external archive media by pressing the key when an
Operator menu is not open.
Note.
All images are saved to a folder on the archive media named
'BMP'.
The images are saved even if archiving is set to 'Offline'.
If external archive media is not inserted, or is full, the screen
capture facility is disabled automatically.
Adjust screen brightness.
