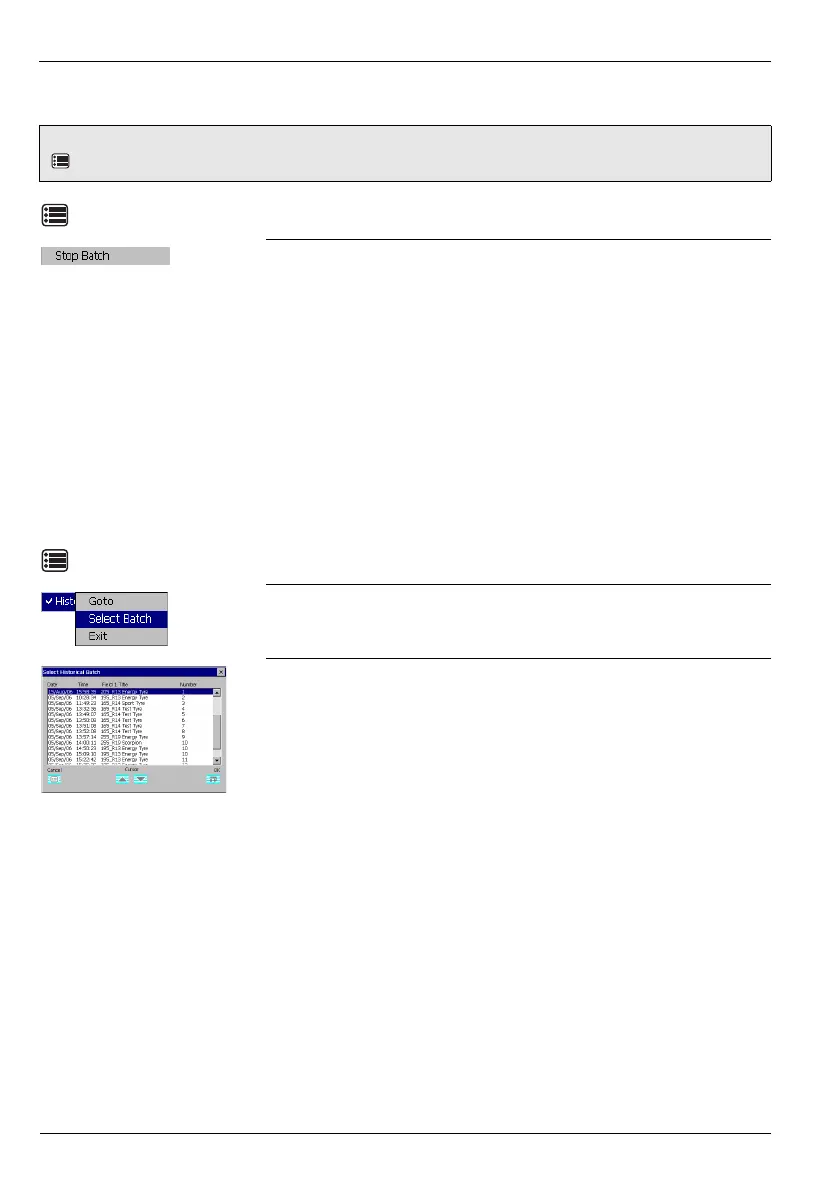

F.3.3 Stopping a Batch Manually

F.3.4 Historical Review

If the instrument is in Historical Review mode, any previously recorded batch can be reviewed provided the

data is still in internal memory.

Note. A batch can be stopped only from the vertical or horizontal chart view operator menus. Press the

key to open the menu.

Note. This menu item is displayed only if batch recording has been

enabled during Group configuration and only if a batch is running.

Select to stop batch recording. A confirmation dialog box is displayed.

Select 'Yes' to stop the batch or 'No' to allow the batch to continue.

Note. If 'Security system' is set to 'Advanced' (see Section F.4.1,

page 177) and the operator has the necessary access rights (see

Section F.4.2, page 178) and 'Operator login' is set to 'Start and Stop'

(see page 179), a password entry dialog box is displayed. The correct

operator password must be entered to enable the batch to be stopped.

Select to move to data recorded in the instrument’s onboard memory for a

specific batch.

Select the batch to be reviewed from the list.

The data is displayed from the start of the batch.
