SM500F
Field mountable paperless recorder 7 Configuration
84 IM/SM500F Rev. Z
7.7 Process Group Configuration
7.7.1 Setting the Recording Parameters

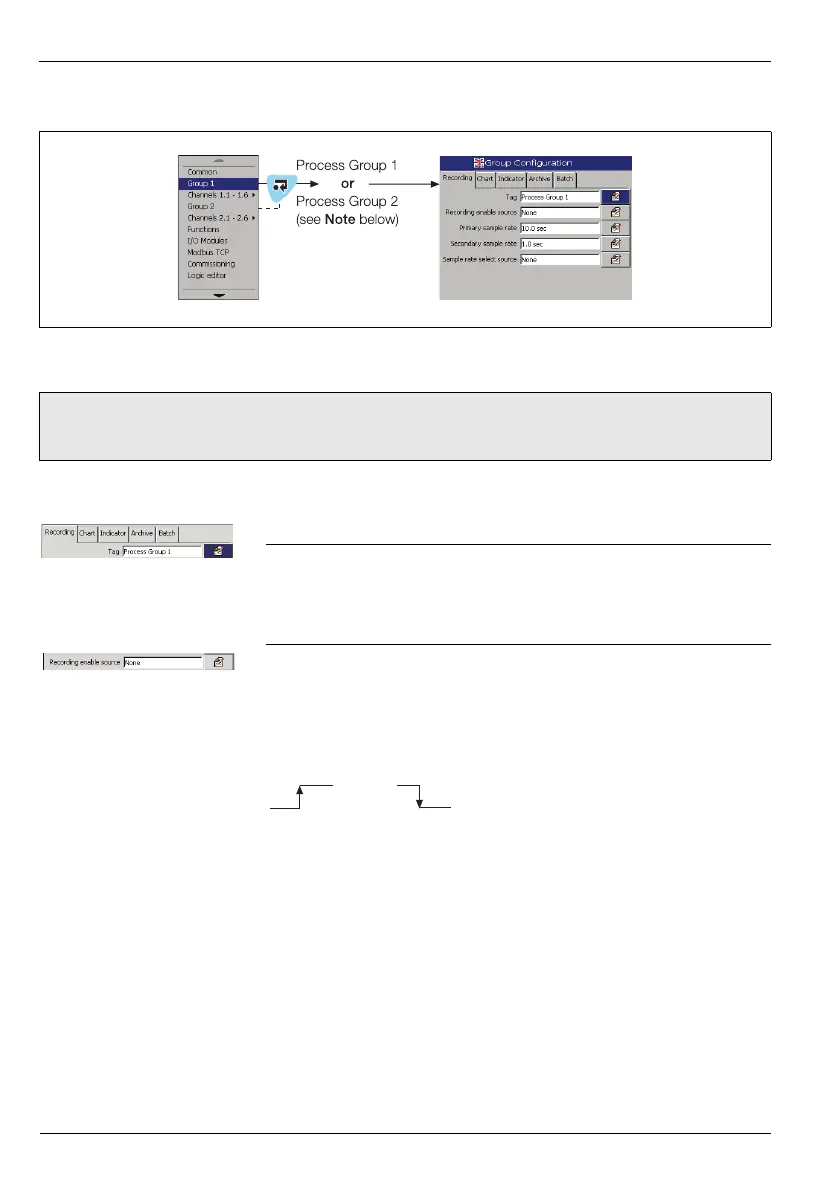

Fig. 7.9 Selecting Process Group Configuration
Note. If 'Number of groups' is set to '1' (see page 74), only one Process Group and its associated
channels is displayed in the configuration menu.
Enter the process group tag (maximum 20 characters) that appears in the
title bar when any operator views from that group are displayed.
Note. Each process group tag
must be unique.
Select a signal source to enable/disable recording of all channels in the
current Process Group. refer to Appendix A, page 146 for a description of
the available sources.
Note. This signal is edge-triggered. A rising edge (inactive to active)
enables recording. A falling edge (active to inactive) disables recording.
To Next Page
