7.10.3 Ethernet Module
The Ethernet module fitted to the recorder contains an embedded web server enabling the recorder's data
and status to be viewed remotely using an internet browser on a PC. The web server supports up to eight
independent connections.
Note. This Section is applicable only if the optional Ethernet module is fitted.
Note. Changes to the IP address, subnet mask and default gateway are implemented only after the
recorder has been restarted. Change the addressing parameters, exit and save the configuration, wait
until the 'Please Wait' message disappears then power down and restart the recorder.

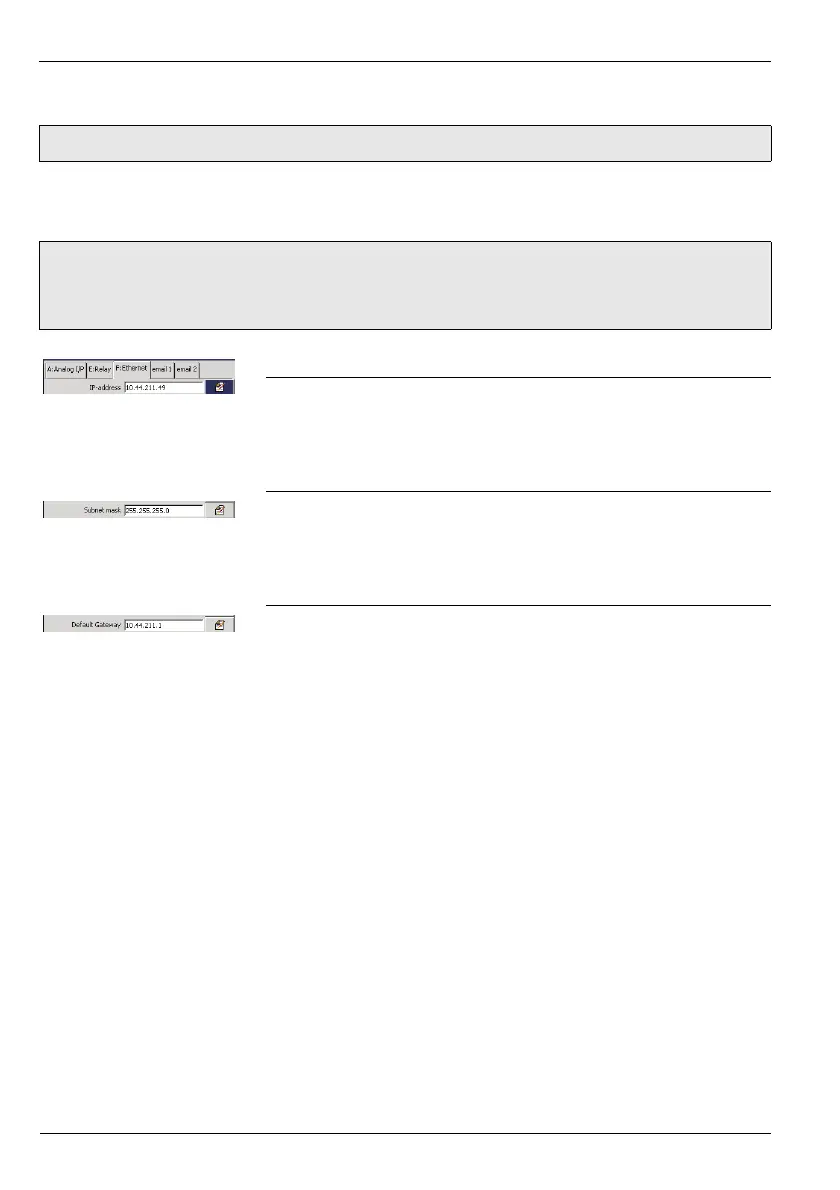

Enter the IP-address assigned to the recorder. The IP address is used by
the TCP/IP protocol to distinguish between different devices. The address
is a 32 bit value expressed with four values (0 to 255), each separated by
a period (.).
The subnet mask is used to indicate which part of the IP address is for the
network ID and which is for the host ID. Set as 1s each bit that is part of
the network ID, e.g. 255.255.255.0 indicates that the first 24 bits are for
the network ID.
Set the IP address for the 'default gateway (router, switch etc.) required to
communicate with other networks. This setting may not be required. The
default setting is '0.0.0.0'.
