ABB SM500F User Manual

SM500F
Field mountable paperless recorder 7 Configuration
70 IM/SM500F Rev. Z
7.5 Making Changes to Parameters
Referring to Fig. 7.5, parameters are located as follows:
a Configuration tab.
b Parameter.
c Parameter value.
d Edit button.
e Sub-menu.
f Higher-level windows remain visible to identify location within the configuration structure.
g Selection list.
h Use the and keys to highlight a selection. Press the key to accept the selection.
Note.
 The appropriate data entry box is displayed automatically.
 Use the key to open the Configuration menu in order to select a different channel.

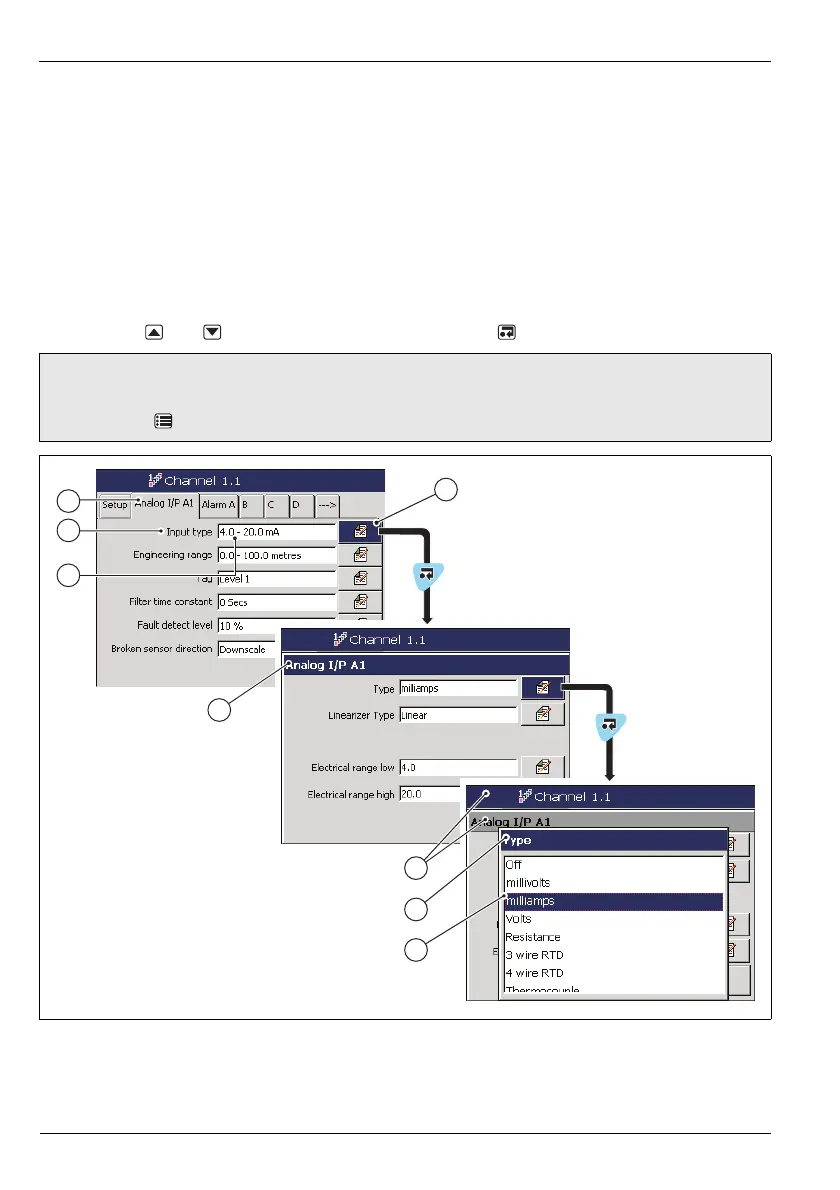

Fig. 7.5 Locating Parameter Settings
1
3
4
2
6
7
8
5
