SM500F
Field mountable paperless recorder 4 Operation
38 IM/SM500F Rev. Z
4.5 Indicator View

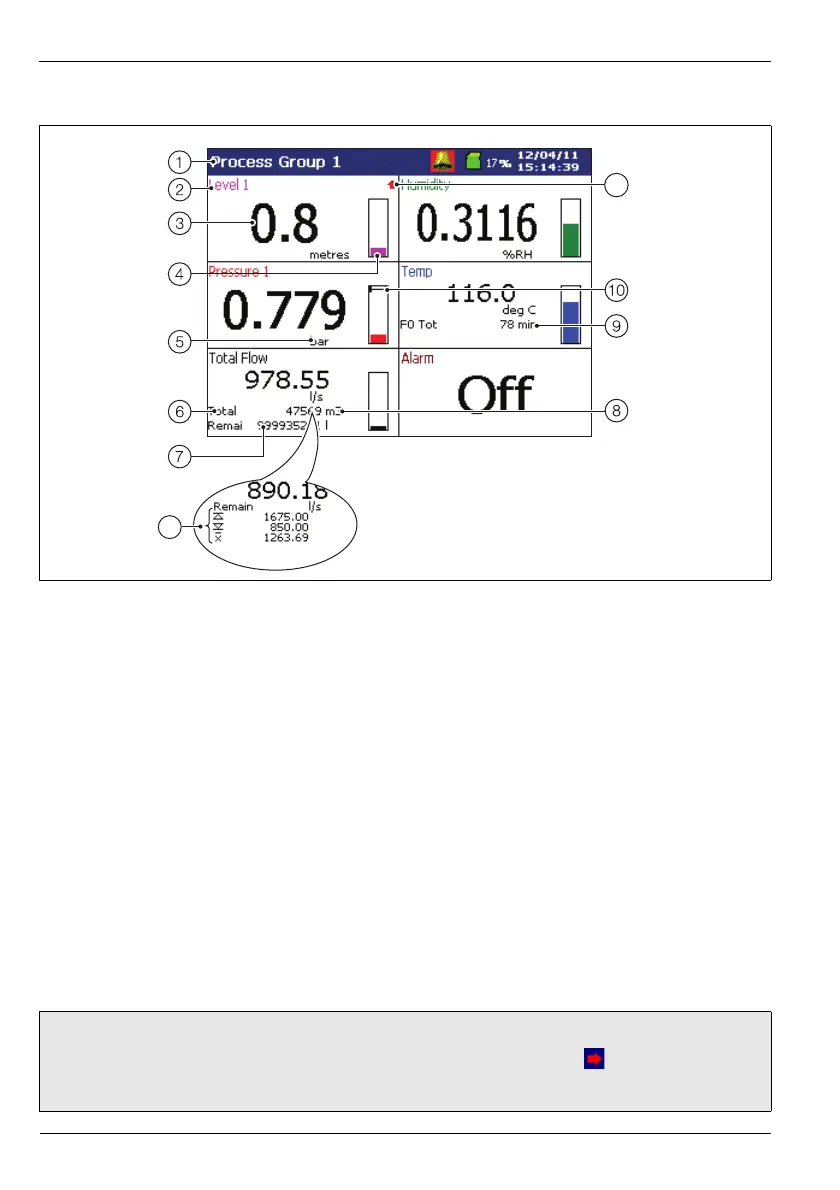

Key to Fig. 4.5:
a Process group name.
b Channel tag.
c Current value – see Note 1, page 28.
d Bargraph.
e Channel units.
f Totalizer tag.
g Totalizer value.
h Totalizer units.
i F0 value/units – see Section 7.8.6, page 112.
j Alarm trip level (not shown for slow and fast rate alarms).
k Alarm icon.
l Maximum, minimum and average totalizer values (displayed only if 'Show Statistics' selected from
Operator menu).
Fig. 4.5 Indicator View
Note.
 Do not remove media while the media update in progress status icon ( ) is displayed.
 Always set the external media Off-line before removing it – see page 51.
11
12
