SM500F
Field mountable paperless recorder 4 Operation
IM/SM500F Rev. Z 25
4 Operation
4.1 Powering up the Recorder
When power is first applied to the recorder, its processor carries out a number of self-tests and displays the
start-up screen.
At the end of the start-up sequence, the recorder displays the Operator view that was being displayed
when the recorder was powered down.
4.2 Operator Keys and Door Features
The recorder is operated via the Operator Keys located below the screen.
Referring to Fig. 4.1, operator keys and door features are located as follows:
a Menu Key – Displays or hides the context-sensitive operator menu associated with each view.
Also cancels the menu without making a change or returns to the previous menu level.
b Group Key – Selects a different process group or
Left Key – Scroll left.
c / Up/Down Keys – Highlights menu items and scrolls through previously recorded data.
d View Key – Selects a different process view or log or
Right Key – Scroll right.
e Enter Key – Selects the highlighted menu item.
f If 'Screen Capture' is set to 'Enabled' during configuration (see Section 7.6.1, page 74) and a
Secure Digital (SD) archive media card is inserted in the recorder, the operator can save a snapshot
of any an image of any Chart, Indicator, Audit Log, Alarm Log or Totalizer Log view to the SD card if
is pressed when an operator menu is not displayed.
g Door Release.
h Door Lock (optional).

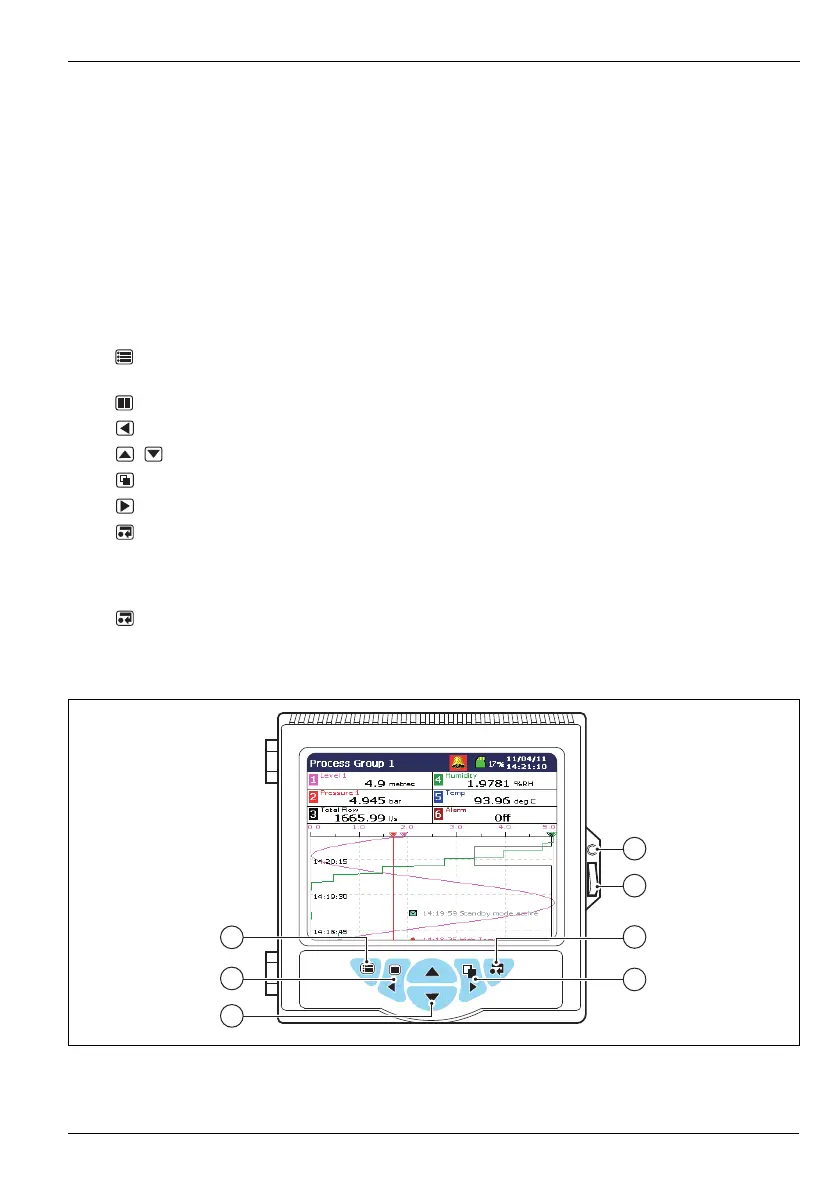

Fig. 4.1 Operator Keys and Door Features
