SM500F
Field mountable paperless recorder 7 Configuration
74 IM/SM500F Rev. Z
7.6 Common Configuration
7.6.1 Setup

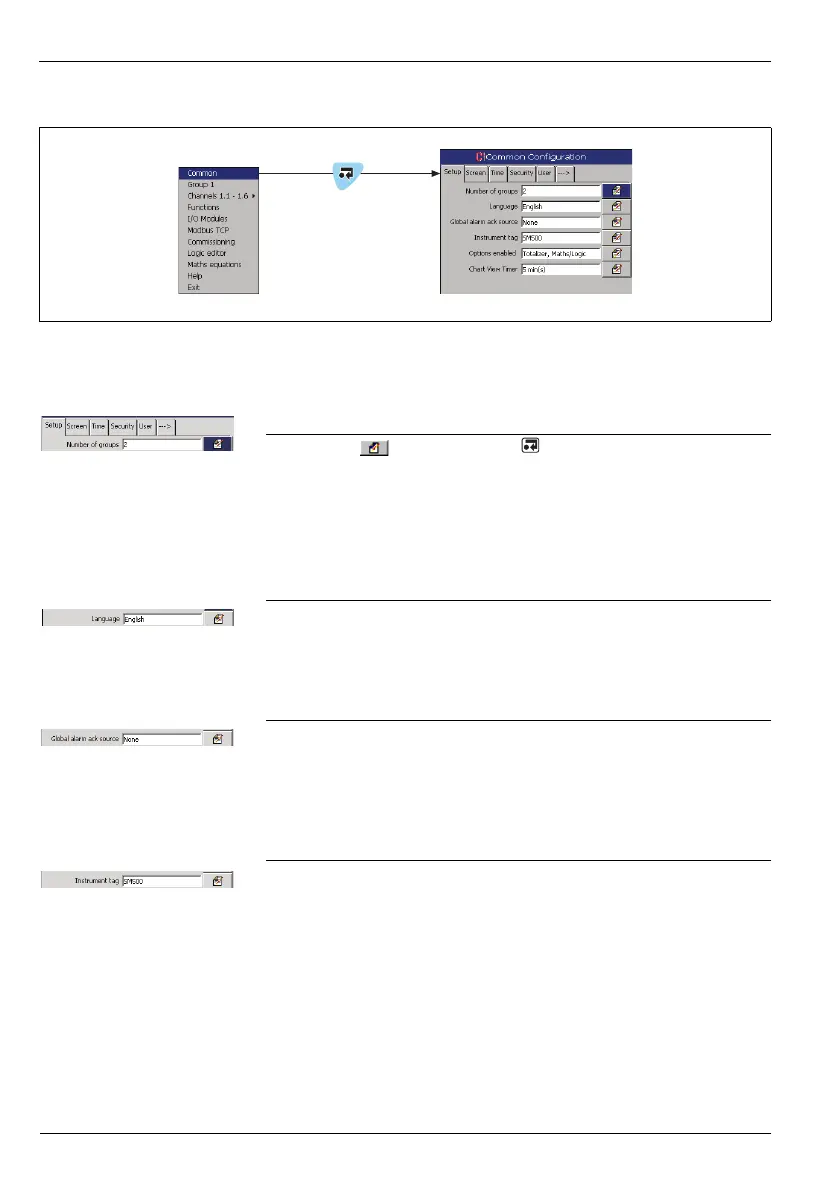

Fig. 7.8 Selecting Common Configuration
Highlight the button and press to toggle the number of process
groups required.
Each process group can have up to 6 recording channels assigned to it –
Group 1 (Ch1.1 to 1.6), Group 2 (Ch2.1 to 2.6).
If the Number of Groups is changed from 2 to 1, configuration data for
Process Group 2 is retained but not used.
Select the language to be used to display standard user prompts and
menu items.
Note. A new language selection does not take effect until the
configuration is saved.
Select a signal source used to acknowledge all active alarms in both
Process Groups simultaneously. refer to Appendix A, page 146 for a
description of the available sources.
Note. This signal is edge-triggered. A rising edge (inactive to active) or
falling edge (active to inactive) triggers global alarm acknowledgement.
Enter the tag to be used to identify the recorder on configuration and audit
log files.
Note. When reviewing data, the instrument tag is used to identify the
source of the data, therefore it is important to ensure that the instrument
tag is unique to each recorder.
•1 If this parameter is changed, internally recorded data files are recreated and unarchived data is lost.
To Next Page
