5 Product identification
Name plate
Note
The name plates displayed are examples. The device
identification plates affixed to the device can differ from this
representation.
Note
The ambient temperature range specified on the name plate
refers only to the transmitter itself and not to the measuring
element used in the measuring inset.
For devices with PROFIBUS PA® or FOUNDATION Fieldbus®, the
device IDs are additionally specified.
1
Manufacturer, manufacturer address, country of manufacture,
manufacturing year - week
2
Safety integrity level, SIL logo (optional)
3
CE mark (EU conformity), if not on additional plate
4
Type designation / model
5
Communication protocol of the transmitter (HART®, FF, PB)
6
2D barcode for serial number in accordance with order
7
IP rating of housing
8
Software revision
9
Hardware version
j
‘Follow product documentation’ symbol
k
and
l
: HART® transmitter customer configuration:
k Set measuring range of the transmitter
l Set sensor type and circuit type
k
and
l
: PROFIBUS PA® or FOUNDATION Fieldbus® transmitter customer
configuration:
Ident_Number or DEVICE_ID
m
Ambient temperature range, on additional plate for Ex versions
n
Specification of the transmitter (supply voltage range, output current
range, communication protocol)
o
Serial number of the device electronics (7 or 8-digit)
p
Device type: Coding of type of protection, housing/indicator, cable entry,
and communication protocol
(complies with the ordering information of the device).
q
Serial number of the device (serial number in accordance with order)

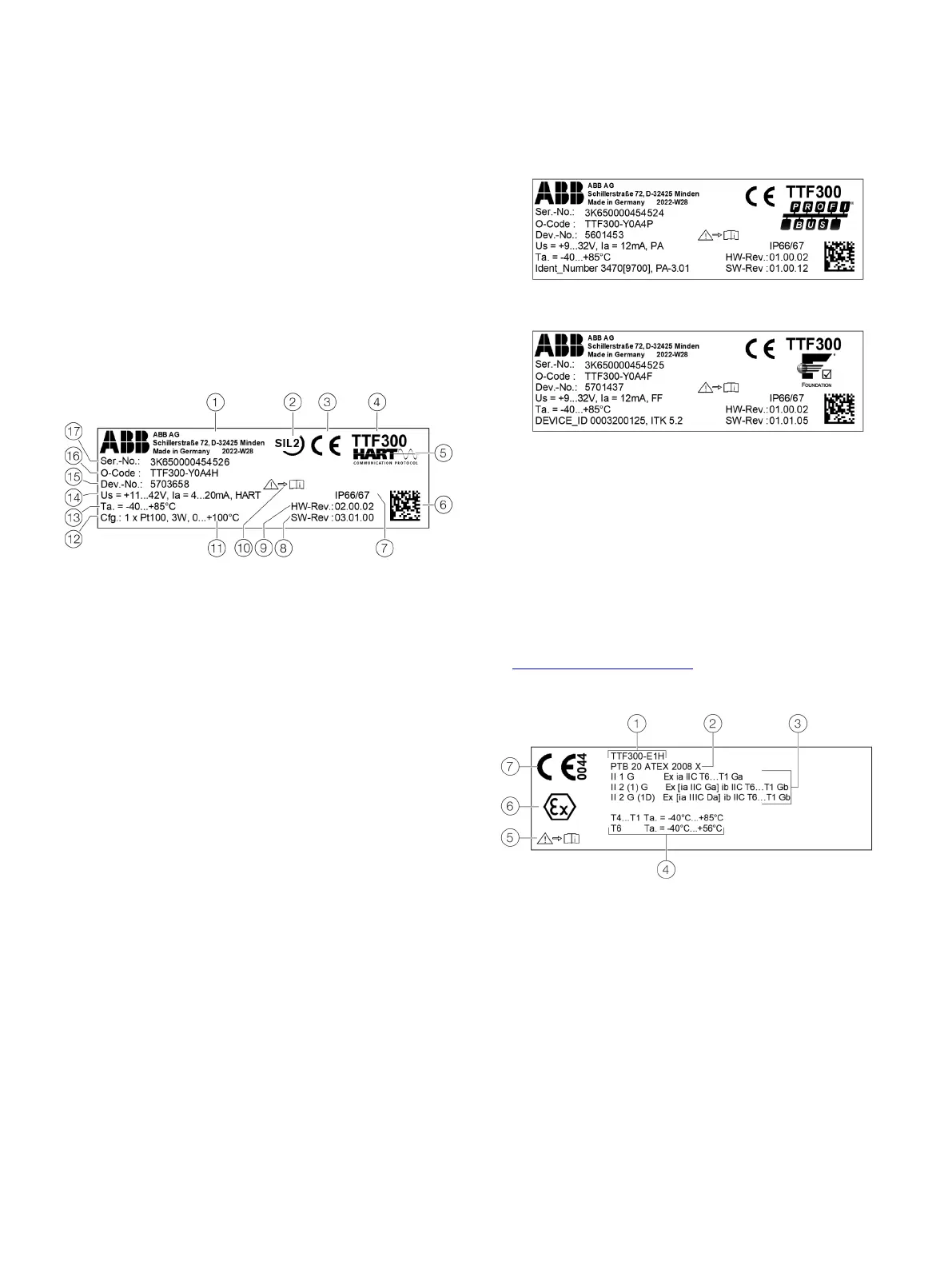

Figure 12: HART® name plate (example)
Figure 13: PROFIBUS PA® name plate (example)
Figure 14: FOUNDATION Fieldbus® name plate (example)
Explosion protection marking for devices with one type
of protection
Devices with an explosion-proof design are marked with the
following additional plates.
Note
• Further information on the approval of devices for use in
potentially explosive atmospheres can be found in the
explosion protection test certificates (at
www.abb.com/temperature).
• Depending on the design, a specific marking in accordance
with ATEX or IECEx applies.
1
Type designation in accordance
with approval
2
Approval number
3
Protection class of the explosion-
proof design (explosion
protection marking)
4
Temperature class of the
explosion-proof design
5
‘Follow product documentation’
symbol
6
CE mark (EU conformity) and
notified body for quality
assurance
7
Ex marking
Figure 15: Additional data plate for explosion-protected devices (example)
