ABB UNO-3.0-TL-OUTD-S User Manual

- 22 -
000469AG
2 - Characteristics
Tightening torques
To maintain the IP65 protection of the system and for optimal installation,
the following tightening torques must be used:
AC output connector cable gland
10
(ring nut fastening)
4...5 Nm
Screws for securing AC output connector cables gland
0.8...1 Nm
Service cable glands
20
M20 (ring nut fastening)
2.5 Nm
Service cable glands
20
M20 (lock nut fastening)
7.0 Nm
Front cover fastening screws
05
2.5 Nm
RS485 connector cable gland
14
(ring nut fastening)
0.8 Nm
Locking screws
02
2.5 Nm
Screw for external ground connection
19
2.5 Nm

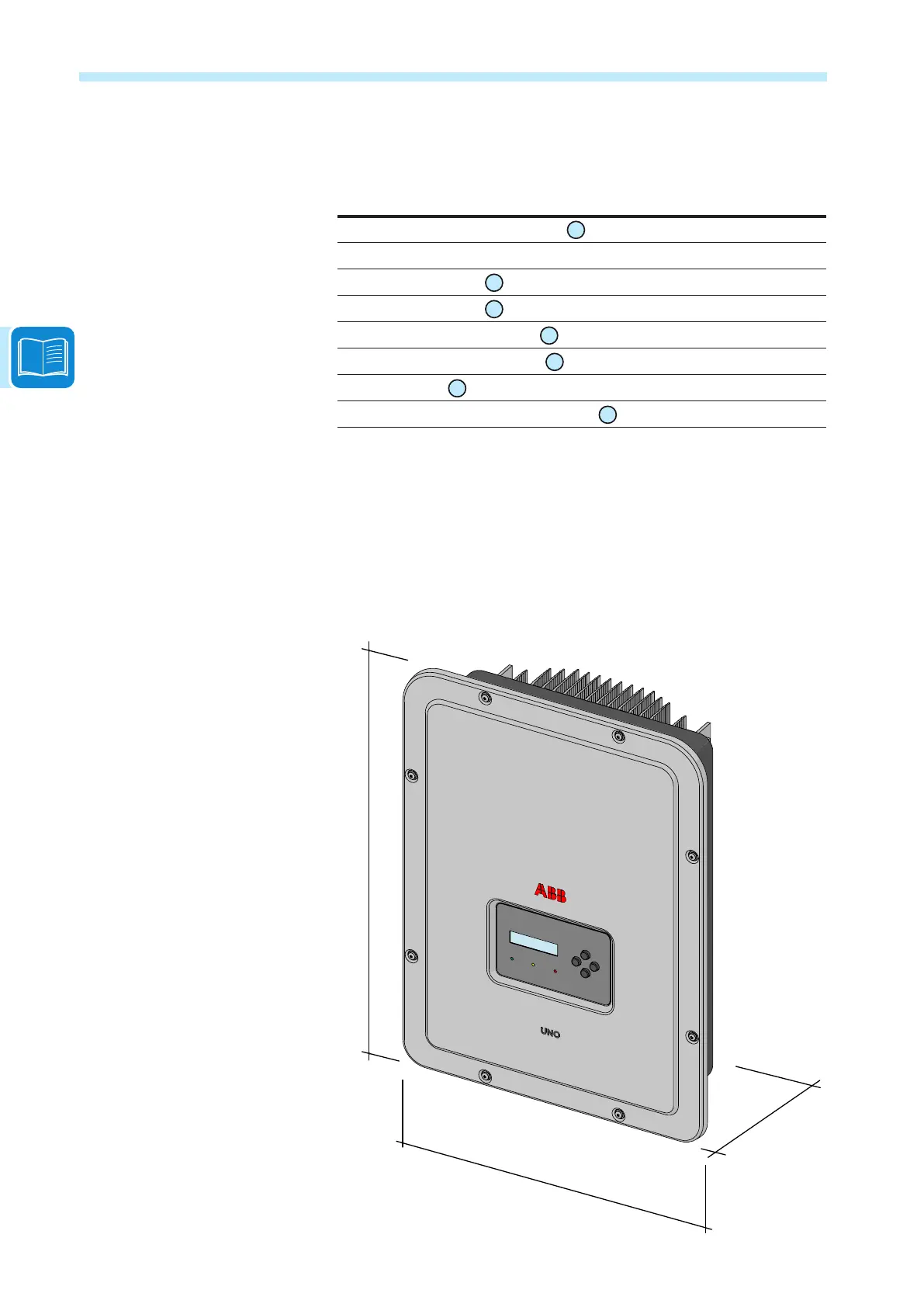

Overall dimensions
The overall dimensions are expressed in millimetres and inches and in-
clude the wall installation bracket.
418mm - 16.45”
175mm
6.89”
553mm - 21.77”
POWER
ALARM
GFI
UP
ESC
ENTER
DOWN
