- 71 -
000512AG

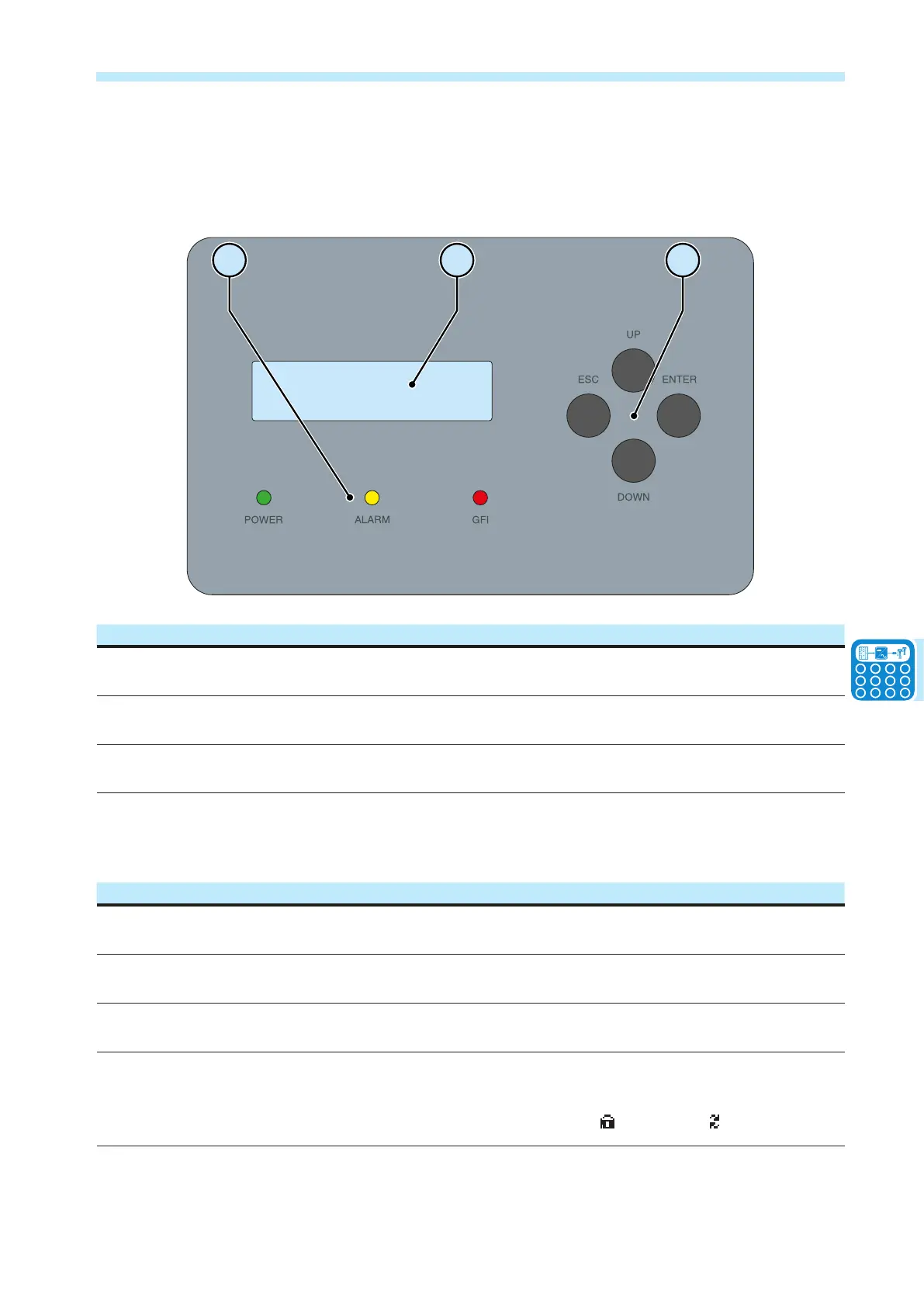

Description of keyboard and LED Panel
Using the combination of the keyboard keys below the display, values
can be set or data can be viewed by scrolling.
080706
LED Description
POWER (GREEN)
On if the inverter is working correctly.
Flashes when checking the grid or if there is insufcient sunlight.
ALARM (YELLOW) The inverter has detected an anomaly. The anomaly is shown on the display.
GFI (RED) Ground fault on the DC side of the PV generator. The error is shown on the display.
The LEDs, in various multiple available combinations, can signal multiple conditions other
than the original single condition; see the various descriptions explained in the manual.
Button Description
ESC
It is used to access the main menu in order to go back to the previous menu or to go back to
the previous digit to be edited.
UP
It is used to scroll up the menu options or to scroll through the numerical scale in ascending
order.
DOWN
It is used to scroll down the menu options or to scroll through the numerical scale in descend-
ing order.
ENTER
It can be used to conrm an action, to access the main menu or the submenu for the selected
option (indicated by the > symbol) or to switch to the next digit to be edited. When the ENTER
key is pressed, cyclic display of the parameters can be:
Blocked or Cyclical.
The Keys, in various multiple available combinations, allow you to access actions other than
the original single action; see the various descriptions explained in the manual.
