2 - Characteristics
Efficiency curves
The equipment was designed considering current energy conservation
standards, to avoid waste and unnecessary leakage.
Graphs of the efciency curves of all models of inverter described in this
manual are shown below.
The efciency curves are linked to technical parameters that are continually being developed
and improved and should therefore be considered approximate.

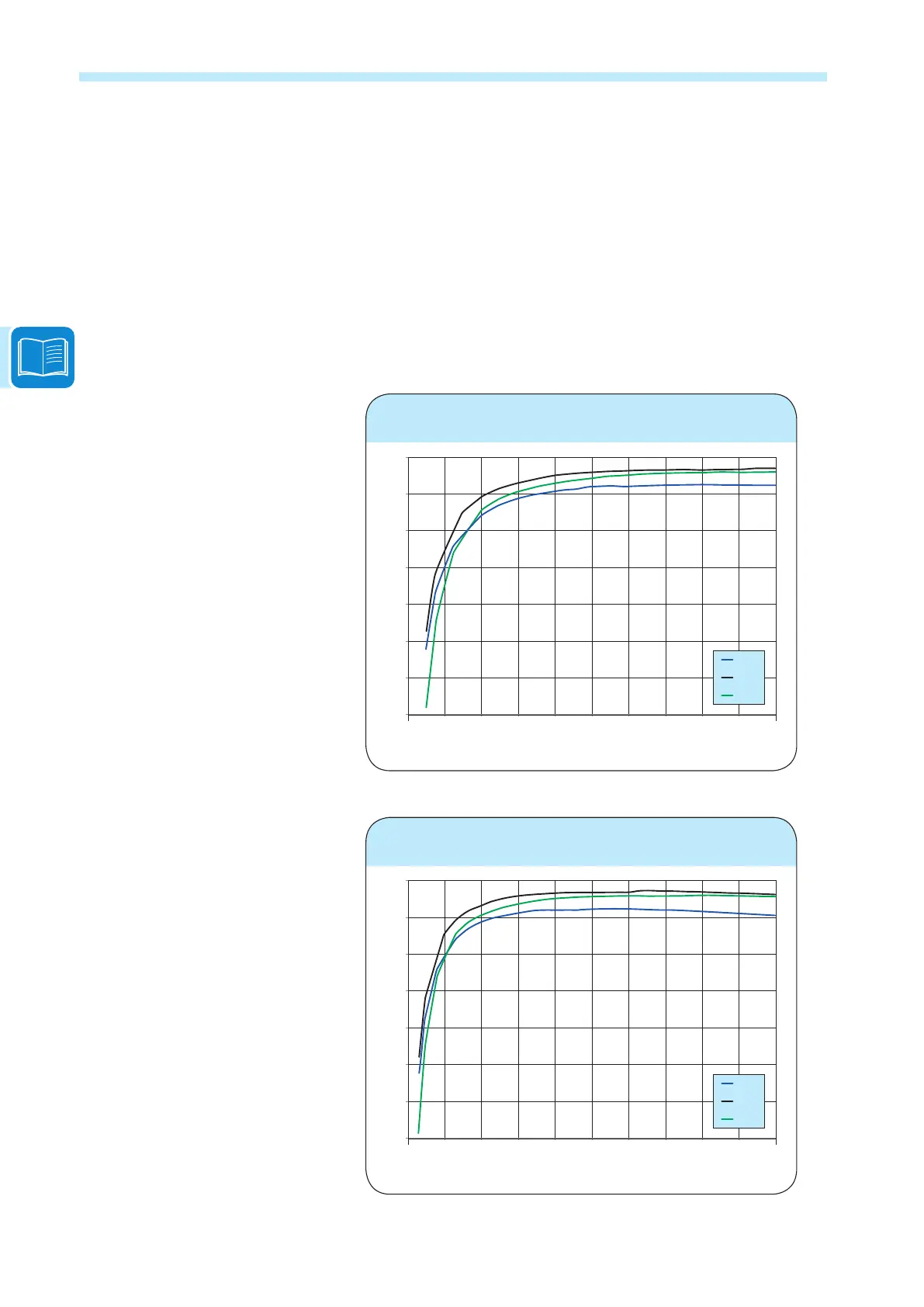

UNO-2.0-TL-OUTD - Efficiency Curves
84
86
88
90
92
94
96
98
0% 10% 20% 30% 50% 70% 100%
Efficiency [%]
200Vdc
360Vdc
480Vdc
80% 90%60%40%
% of rated Output Power
UNO-3.0-TL-OUTD - Efficiency Curves
84
86
88
90
92
94
96
98
0% 10% 20% 30% 50% 70% 100%
Efficiency [%]
200Vdc
400Vdc
500Vdc
80% 90%60%40%
% of rated Output Power
UNO-2.0-TL-OUTD
UNO-2.0-TL-OUTD-S
UNO-3.0-TL-OUTD
UNO-3.0-TL-OUTD-S
