- 61 -
000510AG
Connection of the RS485 communication signals
On the inverter there is an RS485 communication line, dedicated to con-
necting the inverter to monitoring devices. The line may also be used to
store settings with the dedicated advanced conguration software.
The connection of the serial communication cable must be made to the
specic RS485 connector
14
present on the lower side of the inverter.
An RJ45 connector must be installed on the cable and the connector in
turn must be housed in the specic corresponding part (provided) which
allows the level of IP protection of the inverter to be maintained.

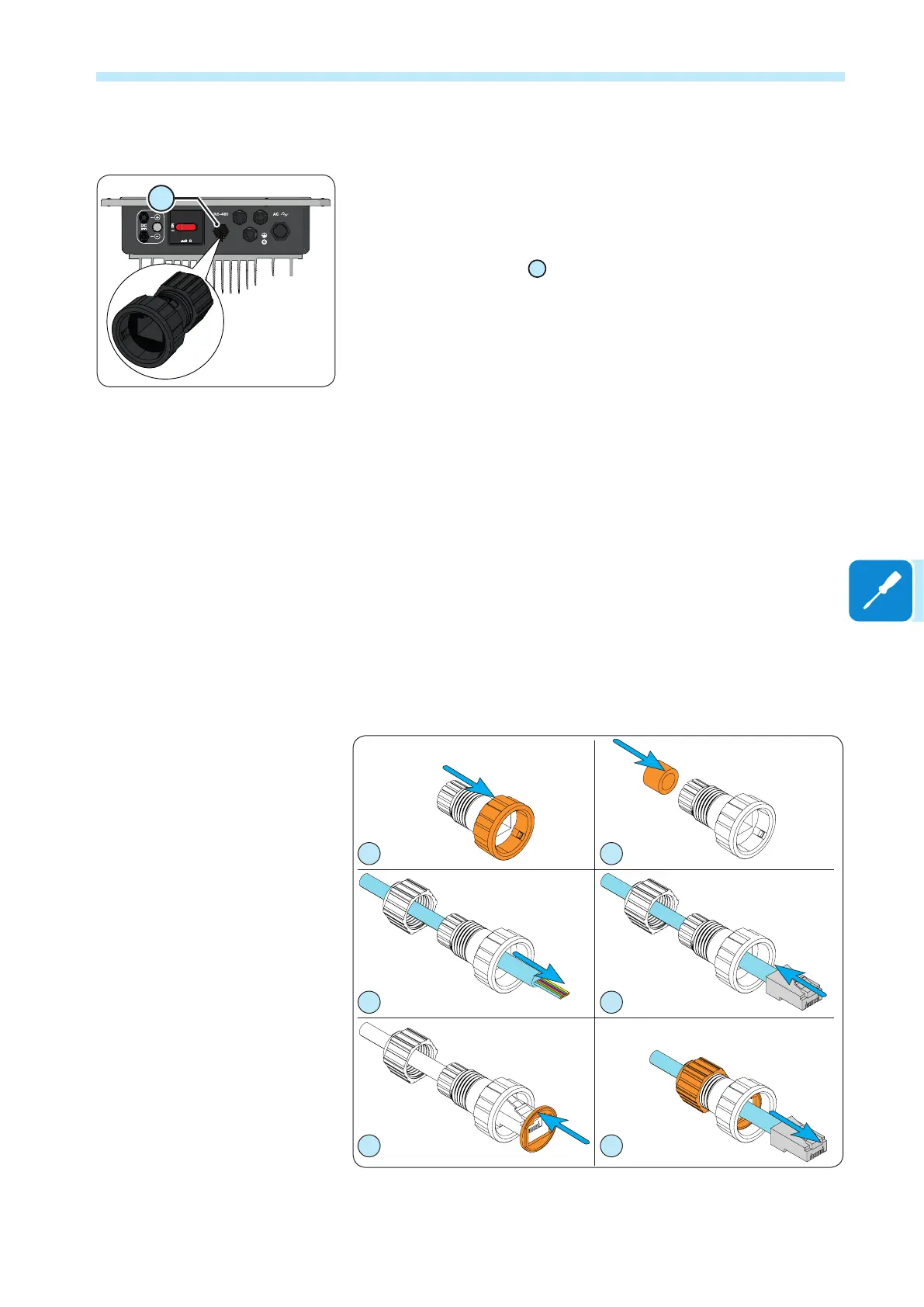

Preparation of the RS485 cable
The RS485 cable must be installed on the corresponding part supplied
which allows connection of the communication line with the inverter.
1. Install the blocking ring nut on the connector body
2. Install the gasket inside the connector body
3. Feed the cable through the holding ring nut and the connector body
4. Install the RJ45 connector on the cable and push it inside the con-
nector body until it ts snugly
5. Insert the gasket through the RJ45 connector and position it until snug
on the connector body
6. Extract the cable from the corresponding part just enough to enable
the connection in the connector on the inverter.
Once the cable has been prepared, it is possible to proceed with con-
necting the communication line to the inverter.
