- 62 -
000510AG

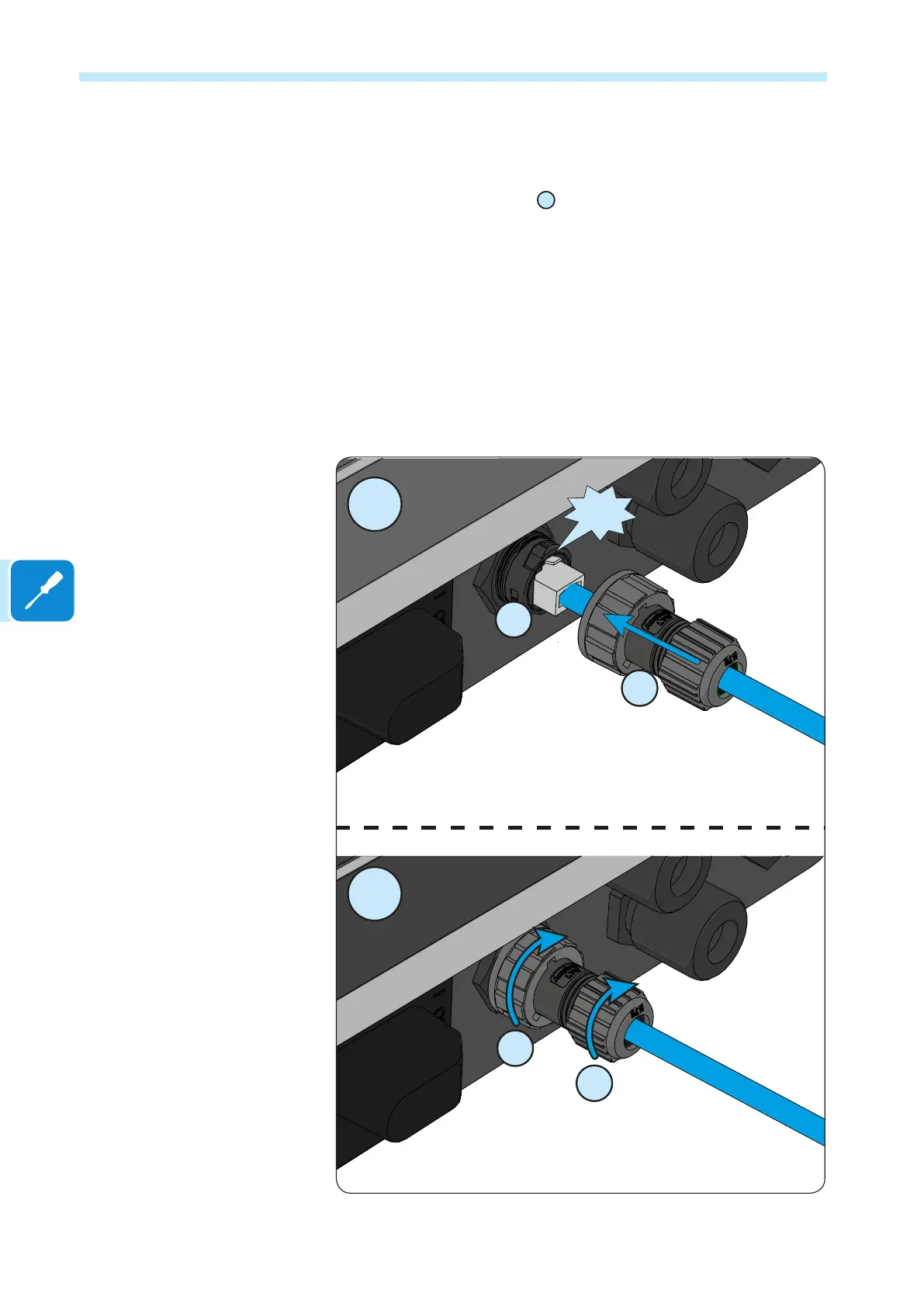

RS485 cable installation:
The connection of the RS485 serial communication cable must be made to
the specic RS485 connector
14
present on the lower side of the inverter
as follows:
1a. Install the cable on the RS485 connector on the inverter.
1b. Slide the corresponding part on the cable until bringing it snug to the
RS485 connector of the inverter. Insertion of the corresponding part is
guided by reference points which enable its correct positioning.
2a. Turn the fastening ring nut until blocking the two connectors and
check the correctness of the installation.
2b. Turn the holding ring nut to a tightening torque of 0.6-0.8Nm
1
2
2a
2b
0.6÷0.8Nm
Click
1a
1b
