- 65 -
000510AG

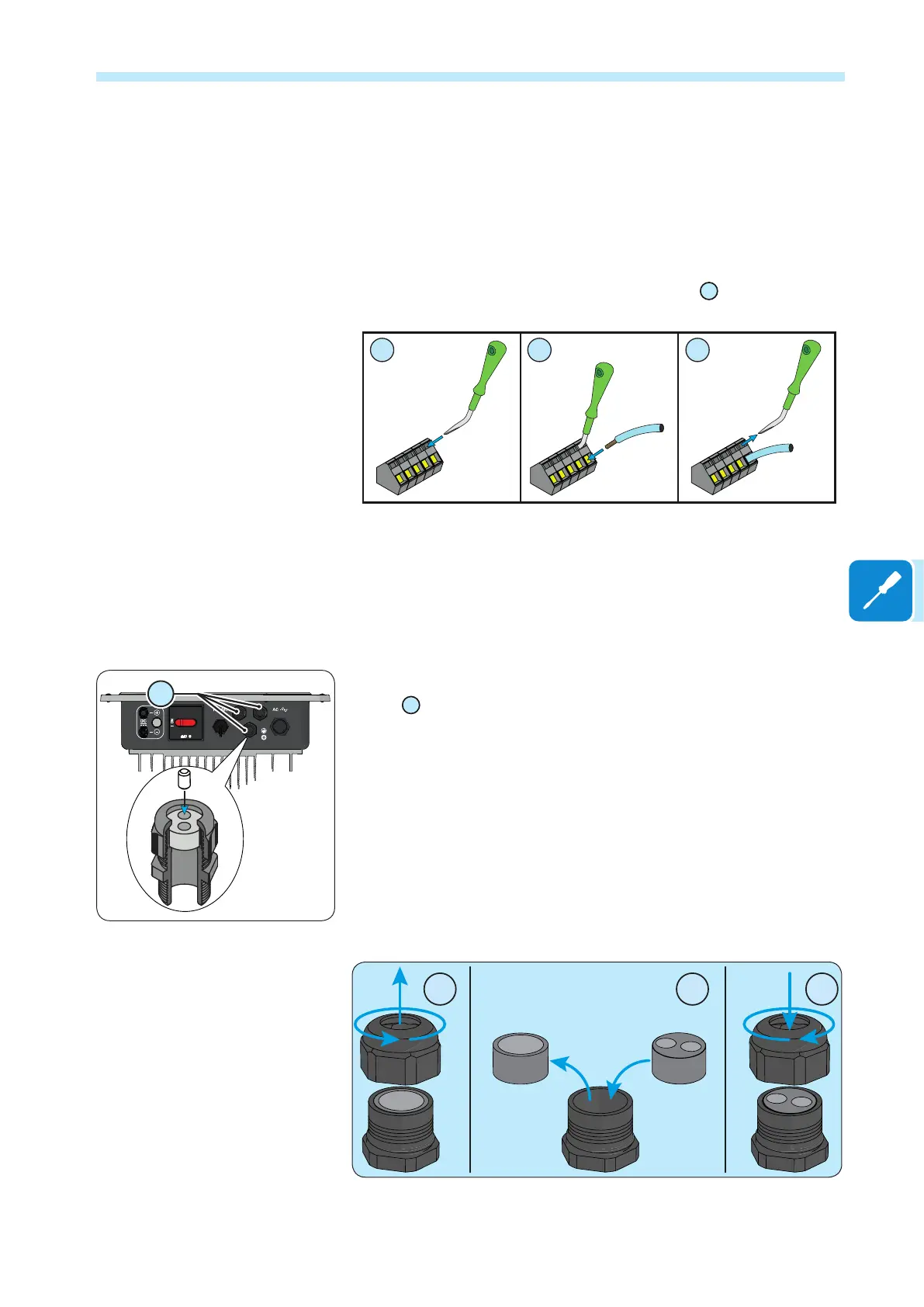

Connection of the control signals
Connection of the control signals
- Remote ON/OFF
- Enabling Stand-alone output
- Multi-function relay
- Tachometer signal (versions 2.0/3.0kW wind)
must be done on the specic signal terminal block
13
inside the inverter
using a at screwdriver as shown in the gure:
a
b
c
a. Insert the screwdriver into the designated slot and press slightly, from
top to bottom. Insert the screwdriver until the terminal opens.
b. Insert the cable in the terminal.
c. Remove the screwdriver and check that the cable is correctly inserted
in the terminal.
The control signal cables must pass through one of the three service cable
glands
20
.
Each M20 cable gland that accepts a cable with cross-section of between
7mm and 13mm.
Cable requirements
External diameter: from 5 to 13 mm
Conductor cross-section: from 0.14 to 1.5 mm
2
Two-hole gaskets are supplied for insertion in the cable gland, which al-
low two separate cables with cross-section of up to 5 mm to pass through.
20
