- 68 -
000510AG

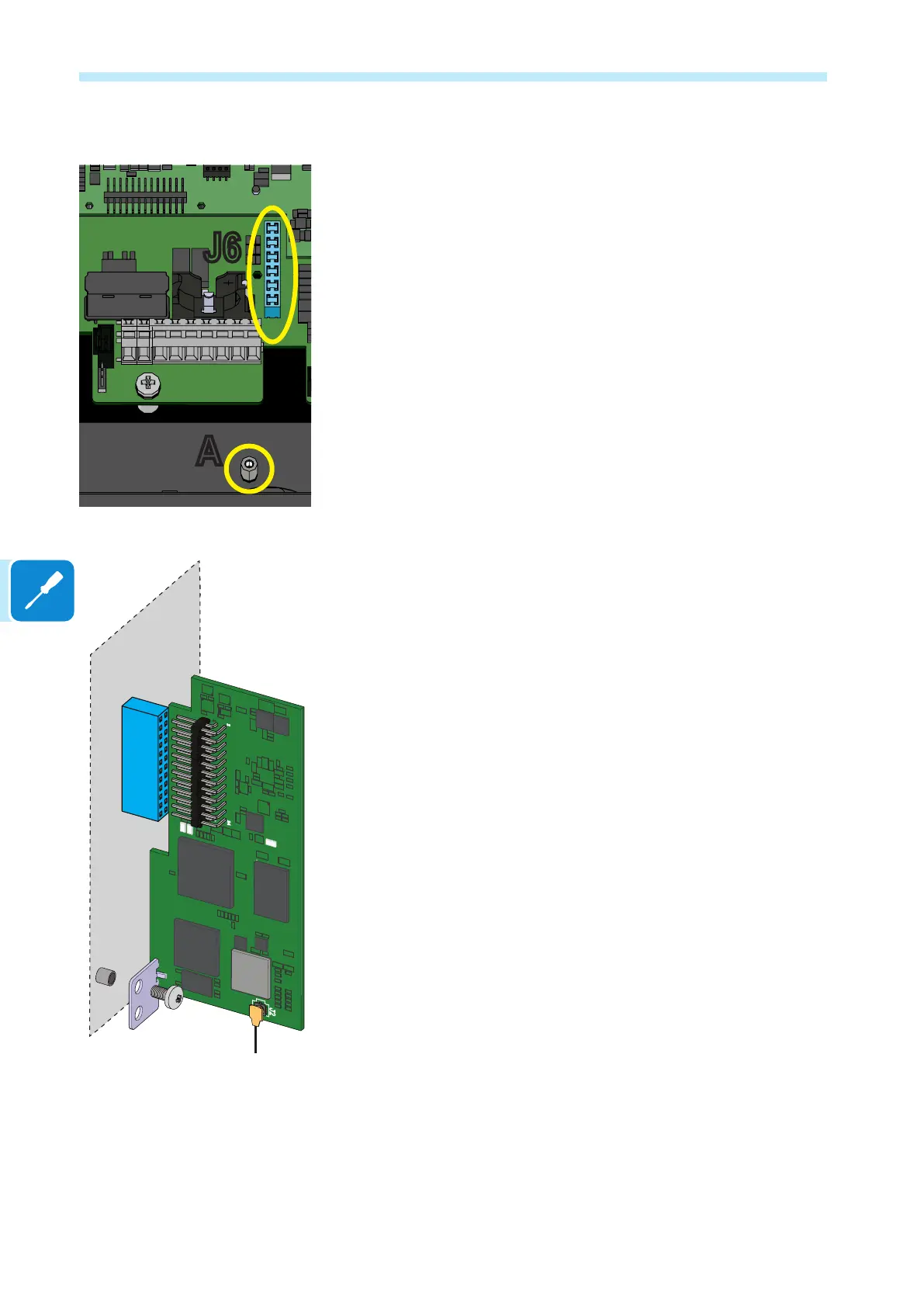

Connector for the installation of expansion boards (optional)
LThe inverter is provided with a connector (J6) used for the installation of
expansion boards (optional).
The installation of an expansion board is made by inserting the terminals
of the board in the connector J6.
During this phase check the correct insertion of the board because the
misalignment of the terminals with respect to the connector may bring to
the damage of the board, and/or of the inverter and as a consequence to
the out of warranty.
Once the board has been inserted, it is needed to complete the installa-
tion by blocking the board to the chassis of the inverter with the dedicated
xing screw.
J6
A
J1
U8
U3
U11
U7
J2
1
2
23
24
