Configurable Relay connection (ALARM)

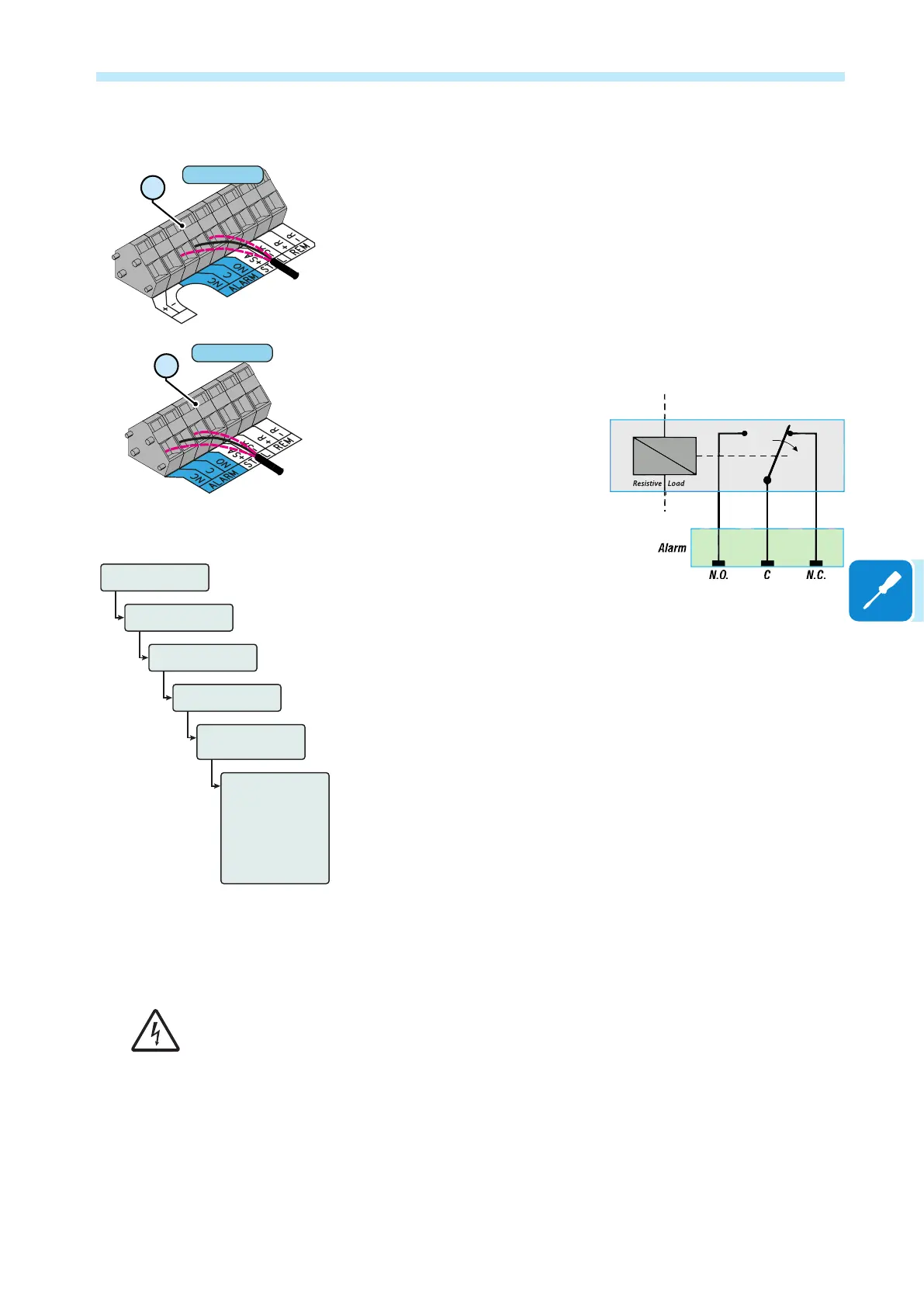

The inverter is equipped with a relay with congurable activation. It can
be connected with normally open contact (being connected between the
NO terminal and the common contact C) and with normally closed con-
tact (being connected between the NC terminal and the common contact
C).
Different types of devices (light, sound, etc.) can be connected to the
relay, provided they comply with the following requirements:
Relay Rating:
Maximum Voltage: 24 Vdc / 12Vac
Maximum Current: 1 A
SELV
This contact can be used in different operating congurations that can be
selected by accessing the dedicated menu.
The congurable relay contacts (ALARM) are not isolated from the accessible communica-
tion ports. Only connect sources which guarantee a voltage not exceeding 24Vdc/12Vac of
safety SELV (Safety Extra Low Voltage).
WIND
13
UNO-2.0/3.0
13
UNO-3.6/4.2
Inverter
Settings
Password
0000
>Set alarm type
Alarm config
GoGo config
Alarms
Set alarm type
Production/
Alarm/
Alarm Conf./
Crepuscolar/
Alarm Latch/
Al. Conf. Latch/
Al. Conf. Ext./
GoGo rel(Auto)/
GoGo rel(Slave)/
