96 Rockwell Automation Publication 2094-UM001J-EN-P - March 2017
Chapter 5 Connect the Kinetix 6000 Drive System
For mounting bracket dimensions, refer to the 2094 Mounting Brackets
Installation Instructions, publication 2094-IN008
.
Ground Multiple Subpanels
In this figure, the chassis ground is extended to multiple subpanels.

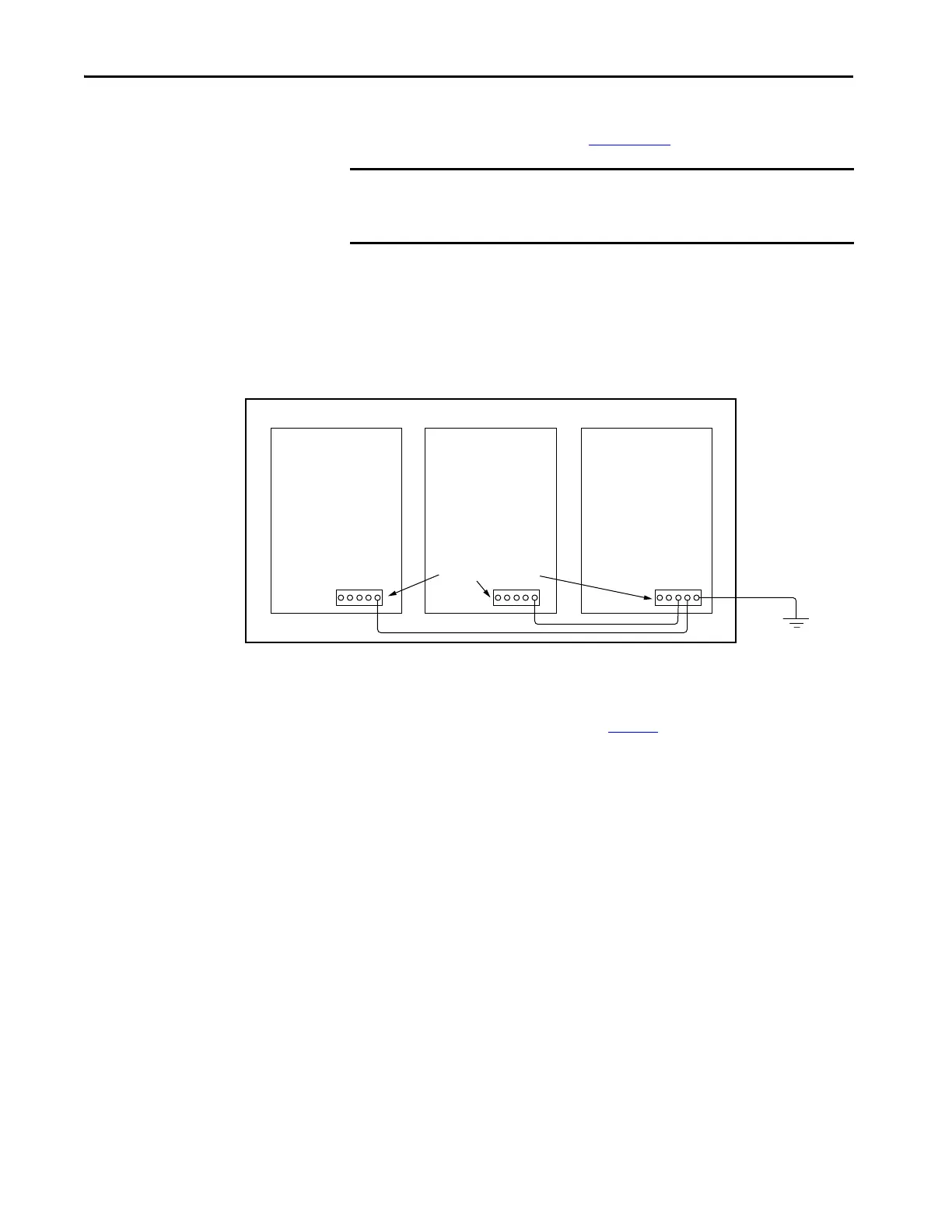

Figure 48 - Subpanels Connected to a Single Ground Point
High-frequency (HF) bonding is not illustrated. For HF bonding information,
refer to Bonding Multiple Subpanels on page 36
.
IMPORTANT When 2094 mounting brackets are used to mount the power rail or LIM
module over the AC line filter, the braided ground strap must be removed
from the power rail and attached to a mounting bracket ground stud.
Follow NEC and
applicable local codes.
Bonded Ground Bus
Ground Grid or Power
Distribution Ground
To Next Page
