14 Rockwell Automation Publication 2080-UM001B-EN-E - November 2011
Chapter 2 About Your Controller

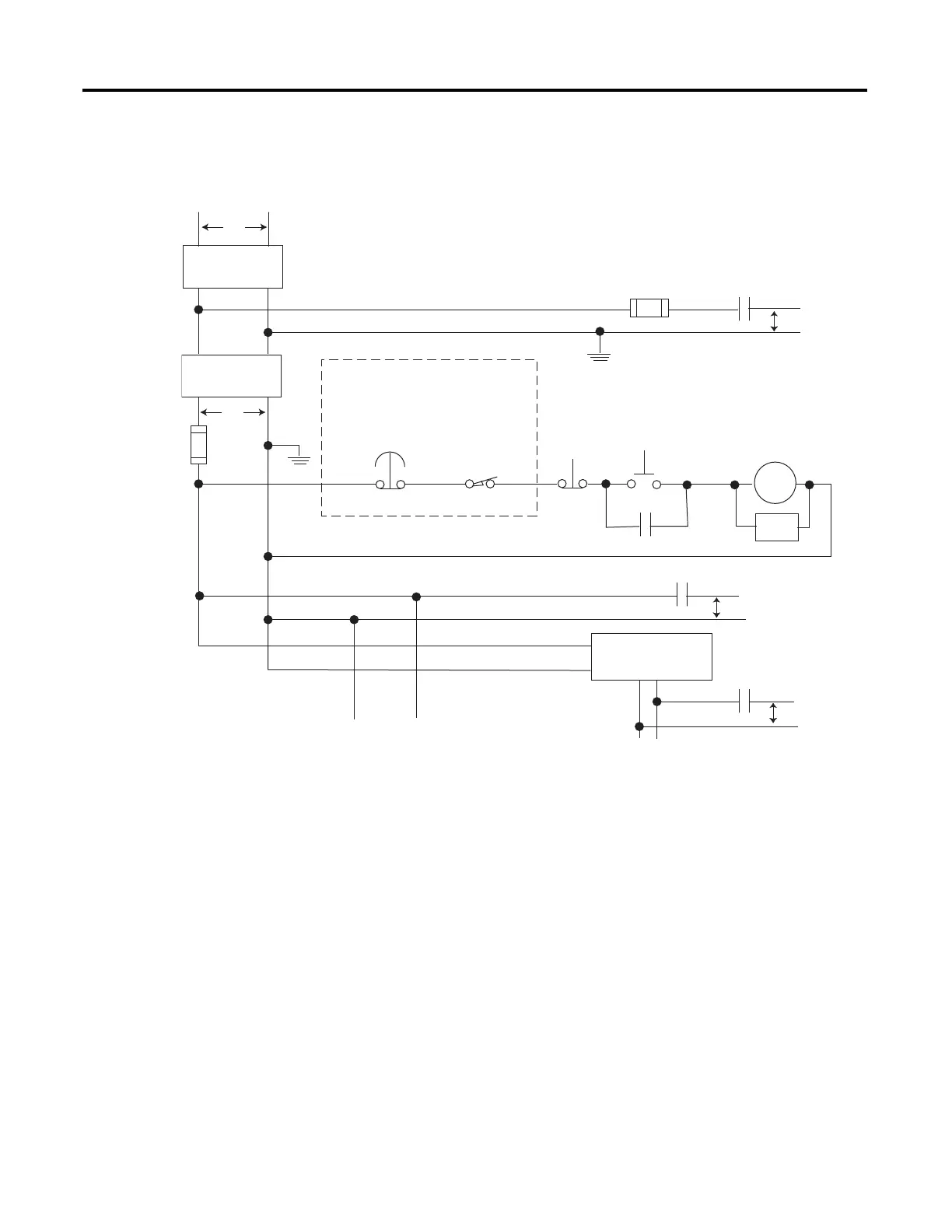

Schematic (Using ANSI/CSA Symbols)
Emergency-stop
push button
230V AC
Operation of either of these contacts will
remove power from the external I/O
circuits, stopping machine motion.
Fuse MCR
Fuse
MCR
MCR
MCR
Stop
Start
Line terminals: Connect to terminals of power supply
Line terminals: Connect to 24V DC terminals of
power supply
230V AC
output
circuits
Disconnect
Isolation
transformer
115V AC or
230V AC
I/O circuits
L1
L2
Master Control Relay (MCR)
Cat. No. 700-PK400A1
Suppressor
Cat. No. 700-N24
(Lo)
(Hi)
DC power supply. Use
NEC Class 2 for UL
Listing
.
X1 X2
115V AC or
230V AC
_
+
MCR
24 V DC
I/O
circuits
Suppr.
Overtravel
limit switch
44565
