78 Rockwell Automation Publication 2080-UM001B-EN-E - November 2011
Appendix E Quickstarts
10. Release the push button connected to I03. The elapsed time ET restarts to
elapse.
When the current elapsed time ET = programmed time PTOF, the output
O01 is de-energized, and the pilot light turns off.

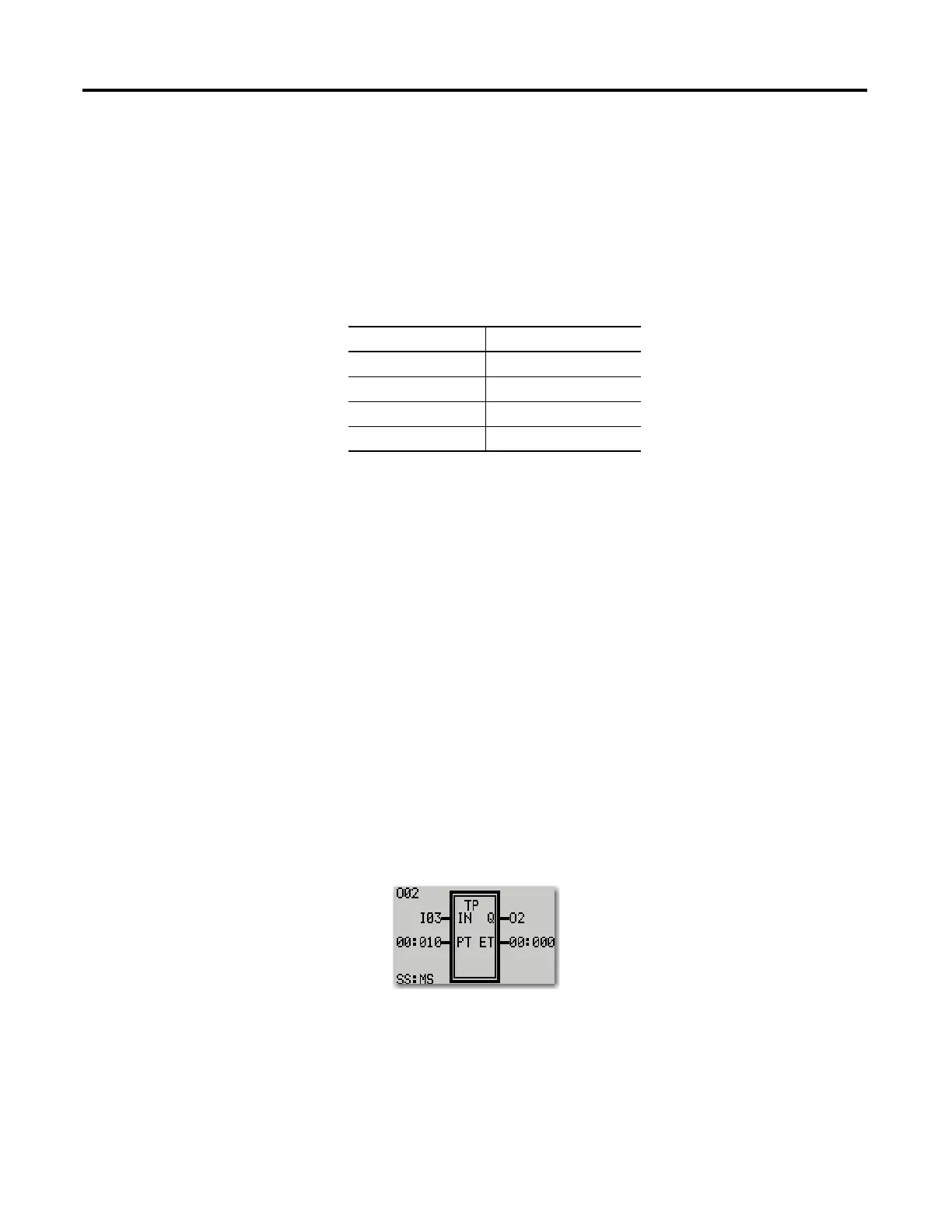

Configure Pulse Timing (TP)
1. Power up the Micro810 controller.
The Micro810 splash screen briefly appears.
2. The status display shows PROG mode, the day and time, and the I/O
status. Press the ESC and OK buttons at the same time to navigate to the
Main Menu.
3. Press the DOWN arrow button once to select SR Function. Press the OK
button. The function block for controlling Output 0 is displayed.
4. Press the UP arrow button twice to select Output 2 (TOW). To switch to
TP instruction:
a. Press the RIGHT arrow button once to select the TOW instruction
parameter field.
b. Press the DOWN arrow button four times to switch to TP instruction.
5. Press the RIGHT arrow button once to select the IN parameter field. This
marks the start of the internal timer.
6. Press the RIGHT arrow button once to select the Time-Resolution
parameter field. This input determines the unit of internal timer.
Press the DOWN arrow button once to change time setting to SS:MS.
7. Press the RIGHT arrow button once to select the first entry in PT
parameter field.
a. Press the UP arrow button once to change this digit value to 1.
b. Press the RIGHT arrow button once to select the second digit entry in
PT parameter field.
c. Press the UP arrow button five times to change this digit value to 5.
TP – Sample Parameter Configuration
Parameter Field Configuration Value
QQ02
IN I03
Time Resolution SS:MS
PT 15:000
