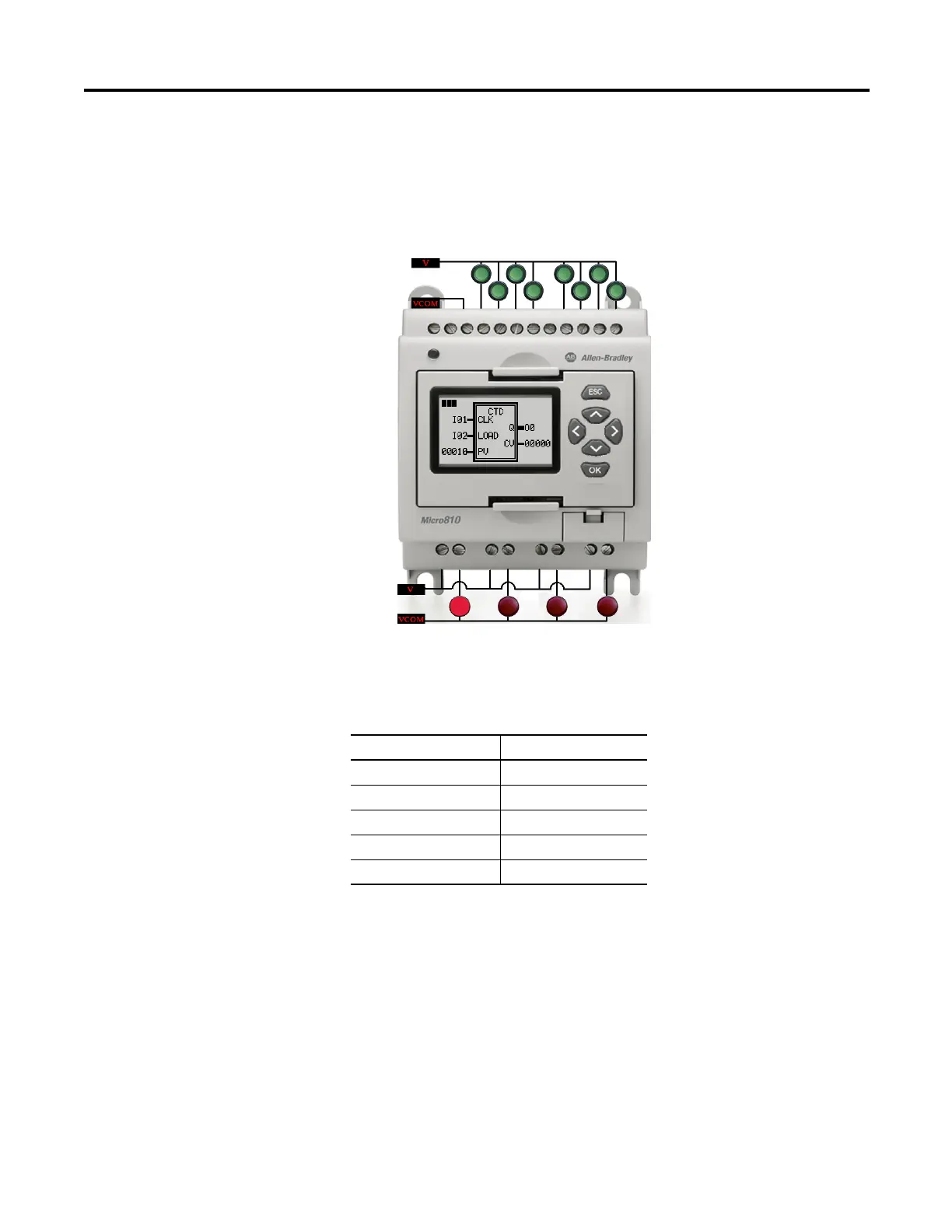

8. Press and release the count push button connected to I01. The current
value CV decrements to 00009.
Repeat the step 8 nine times, until CV decrements to 00000.
When CV = 0, the output O00 is energized, and the pilot light
turns off.
Configure TONOFF
1. Power up the Micro810 controller.
The Micro810 splash screen briefly appears after power up.
2. The status display shows the PROG mode, the day and time, and the I/O
status. Press the ESC and OK buttons at the same time to navigate to the
Main Menu.
3. Press the DOWN arrow button once to select SR Function. Press the OK
button. The function block for controlling Output 0 is displayed.
4. Press the UP arrow button once to select Output 1 (CTU).
5. Press the RIGHT arrow button once to select the CTU instruction
parameter field.
TONOFF – Sample Parameter Configuration
Parameter field Configuration value
QQ01
IN I03
Time Resolution SS:MS
PT 15:000
PTOFF 20:000
