Allen-Bradley Micro810 User Manual

Rockwell Automation Publication 2080-UM001B-EN-E - November 2011 77
Quickstarts Appendix E

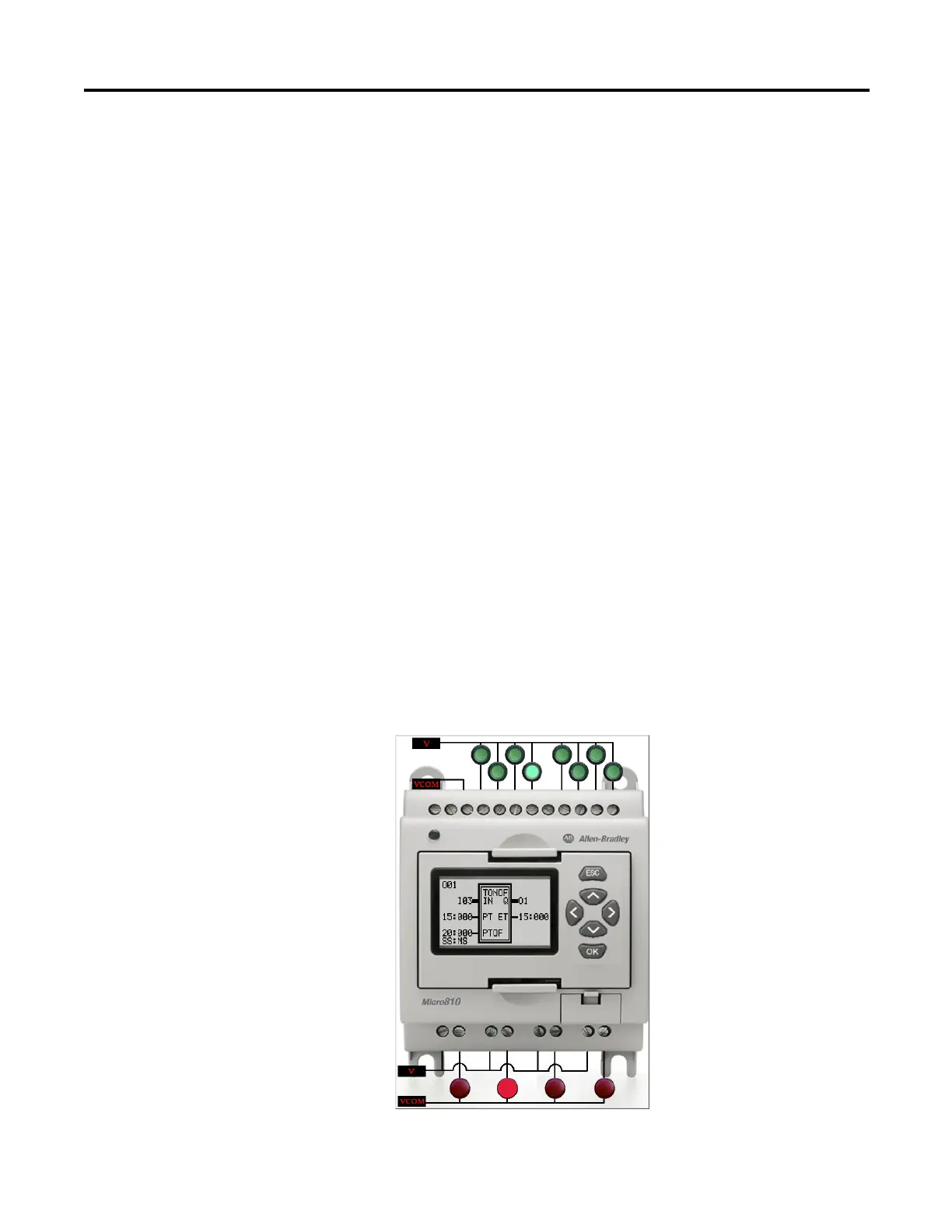

Test the TONOFF Predefined Function
The TONOFF instruction starts an internal timer up to a given value PT when
input IN makes a transition from low to high, and energizes the output when
ET = PT.
Restart the internal timer up to a given value PTOF when input IN makes a
transition from high to low, and de-energize the output when EP=PTOF. To test
the operation, we connect a push button to I03, and a pilot light to output O01.
1. Press the ESC button to return to the Main Menu.
2. Press the UP arrow button once to select Mode Switch. Press THE OK
button.
3. Press the DOWN arrow button once to select RUN mode. Press the OK
button.
4. Press the OK button to confirm the RUN mode selection.
5. The screen indicates that the controller is in RUN mode. Press the ESC
button to return to the Main Menu.
6. Press the DOWN arrow button once to select SR FUNCTION. Press the
OK button.
7. Press the UP arrow button once to select Output 1.
8. Press the push button connected to I03. The elapsed time ET starts to
elapse.
9. When the current elapsed time ET = programmed time PT, the output
O01 is energized, and the pilot light turns on.
