64 Rockwell Automation Publication 2080-UM001B-EN-E - November 2011
Appendix E Quickstarts

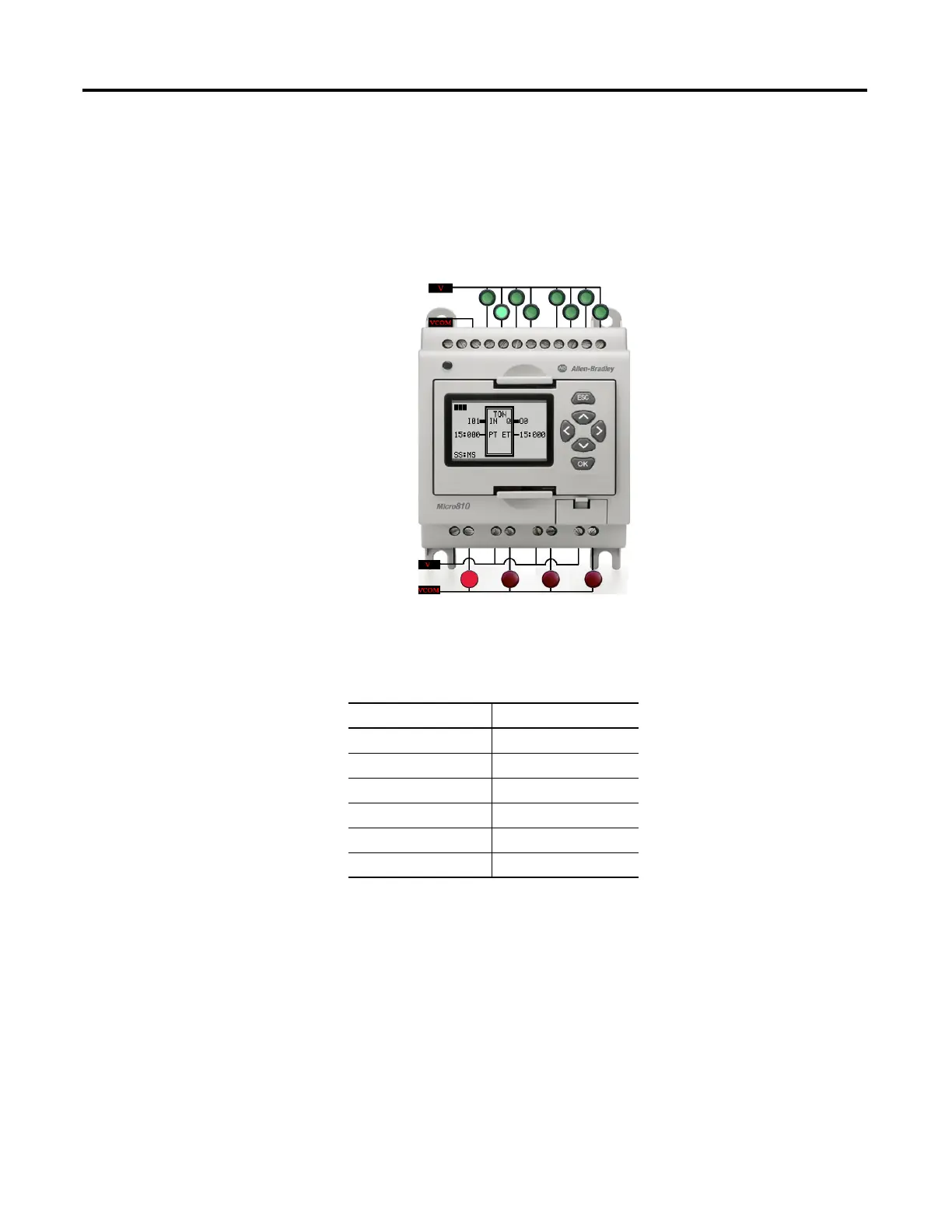

6. Press the DOWN arrow button once and select SR FUNCTION. Press
the OK button. The TON function block to control Output 0 becomes
available.
7. Press the push button connected to I01. ET starts to elapse.
8. When the current ET equals PT, output O00 is energized, and the pilot
light turns on.
Configure DOY
1. Power up the Micro810 controller.
The Micro810 splash screen briefly appears after power up.
2. The status display shows PROG mode, the day and time, and the I/O
status. Press the ESC and OK buttons at the same time to navigate to the
Main Menu.
3. Press the DOWN arrow button once to select SR function. Press the OK
button.
4. Press the DOWN arrow button once to navigate to the function block
controlling Output 3 (DOY).
DOY – Sample Parameter Configuration
Parameter Field Configuration Value
QQ03
Channel A
EN I03
Y/C 0
On 11/08/18 (YY/MM/DD)
Off 11/08/19 (YY/MM/DD)
