Appendix E Quickstarts
Navigate the LCD Display
The following sections enable the user to configure and test each of the eight
Smart Relay (SR) Functions available to the Micro810 controller.
Configure Count-Up (CTU)
This quickstart shows you how to configure the Count Up (CTU)
function block.
1. Power up the Micro810 controller.
The Micro810 splash screen briefly appears after power up.
2. The status display shows PROG mode, the day and time, and the I/O
status. Press the ESC and OK buttons buttons at the same time to go to the
Main Menu.
3. Press the DOWN arrow button to navigate to SR Function. Press the OK
button. The function block for controlling Output 0 is displayed.

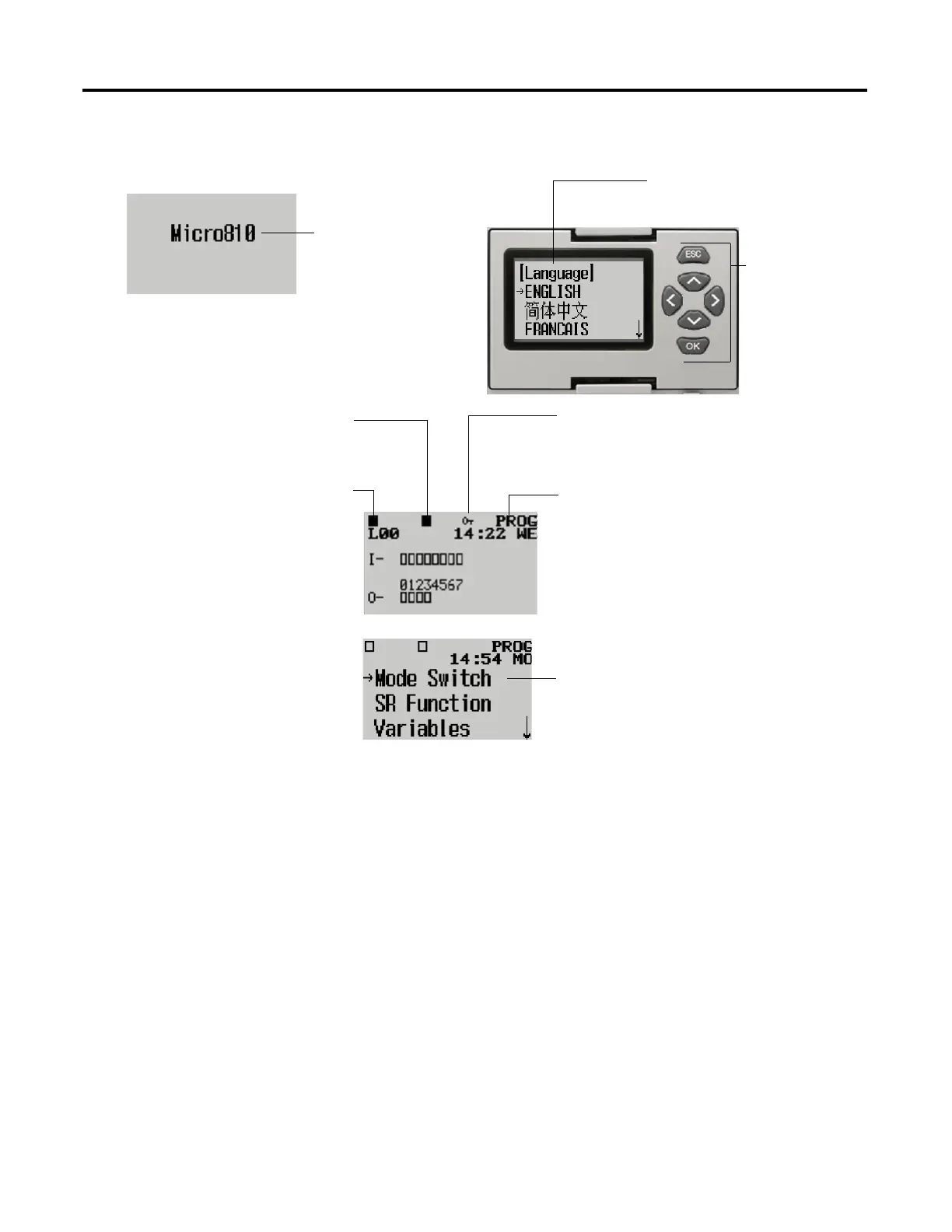

Micro810 splash screen
Appears briefly upon
controller power up
Language
Allows user to select English,
Chinese, French, Spanish, Italian
Navigation buttons
Allows user to
navigate, select,
confirm, and undo
selection
Communication Status
A flashing square indicates Micro810 controller
has communication with a PC through USB port
User display
A filled square indicates that a user has
programmed a user-defined screen using
LCD instructions
Password activated
A button sign indicates password protection for LCD
operation is activated. For example, a user could change
from Run mode to Program mode using LCD buttons.
Operation mode
Indicates whether the controller is in Program
Mode or Run Mode
Main Menu
Provides access to features and functions such as Mode
Switch, SR Function, Variables, I/O status, Advanced Set,
and Security.
To go to this screen from the I/O status window or a user-
defined window, press the ESC + OK buttons at the
same time.
