Allen-Bradley Micro810 User Manual

Rockwell Automation Publication 2080-UM001B-EN-E - November 2011 71
Quickstarts Appendix E

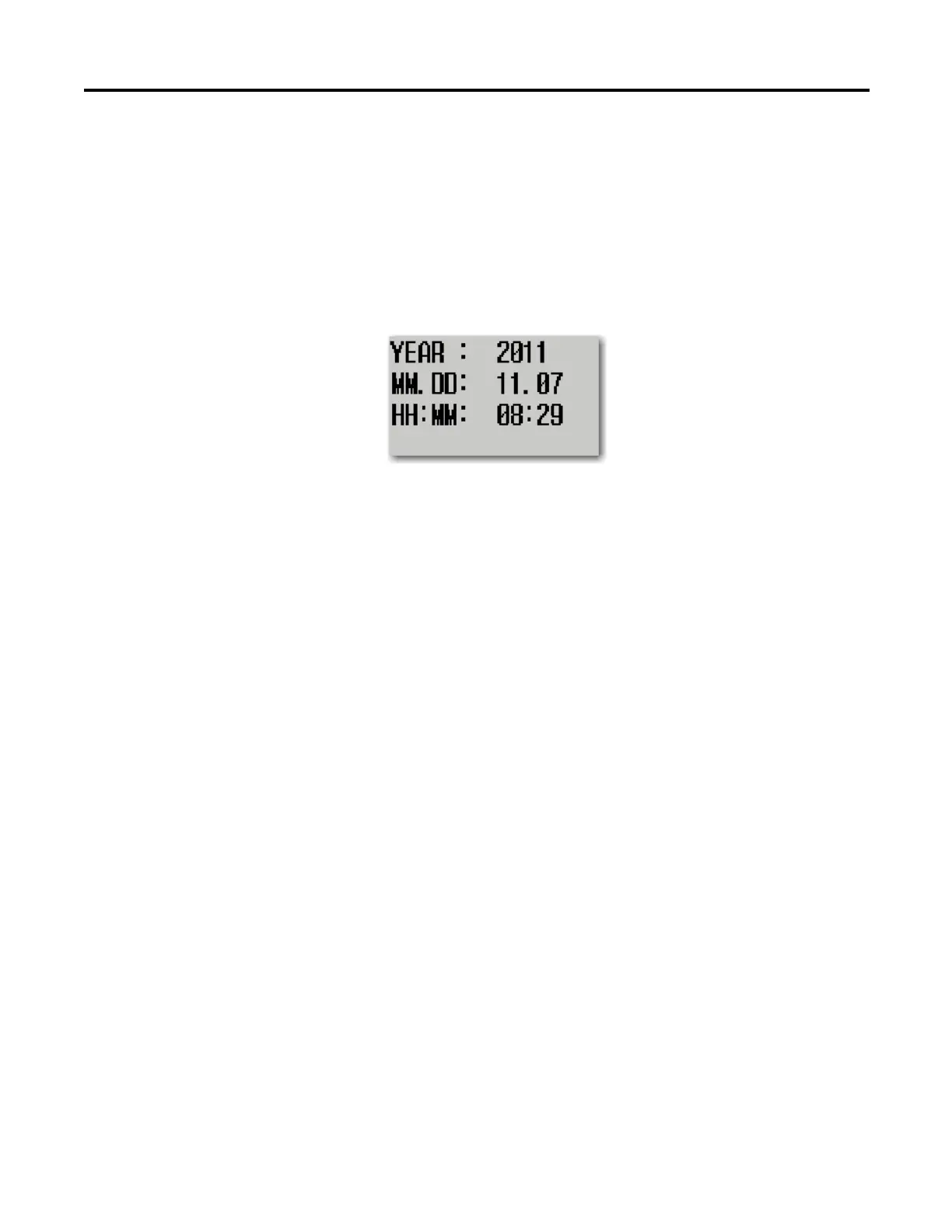

4. Press the RIGHT arrow button to navigate through Year, MM.DD, and
HH:MM fields.
Set the MM.DD field value to a date that falls on a Monday, as set in the
Configure example. Use the UP or DOWN arrow buttons to increase or
decrease the digit values on the MM.DD field.
5. Go to the HH:MM field. Change the time setting to 08:29, or a minute
before the On time set. Use the UP or DOWN arrow buttons to increase
or decrease the digit values on the HH:MM field. Press the OK button
after editing.
Proceed to the test steps described below.
Test the TOW Function
1. Press the ESC button twice to return to the Main Menu.
2. Press the UP arrow button to select Mode Switch. Press the OK button.
3. Press the DOWN arrow button once to select RUN mode. Press the OK
button.
4. Press the OK button to confirm the RUN mode selection.
5. The screen indicates that the controller is in RUN mode. Press the ESC
button to return to the Main Menu.
6. Press the DOWN arrow button once and select SR FUNCTION. Press
the OK button.
7. Press the UP arrow button twice for Output 2.
