Allen-Bradley Micro810 User Manual

Rockwell Automation Publication 2080-UM001B-EN-E - November 2011 1
Chapter 1
Hardware Overview
Hardware Features
The Micro800 controller is an economical brick style controller with embedded
inputs and outputs.
Micro810 12-point controllers cannot use Micro800 plug-in modules, but do
support a USB adapter, and an LCD module, which can be used as a backup
memory module.
24V DC powered controllers accommodate any 24V DC output power supply
that meets minimum specifications such as the optional Micro800 power supply
(2080-LC10-12QWB, 2080-LC10-12QBB only).

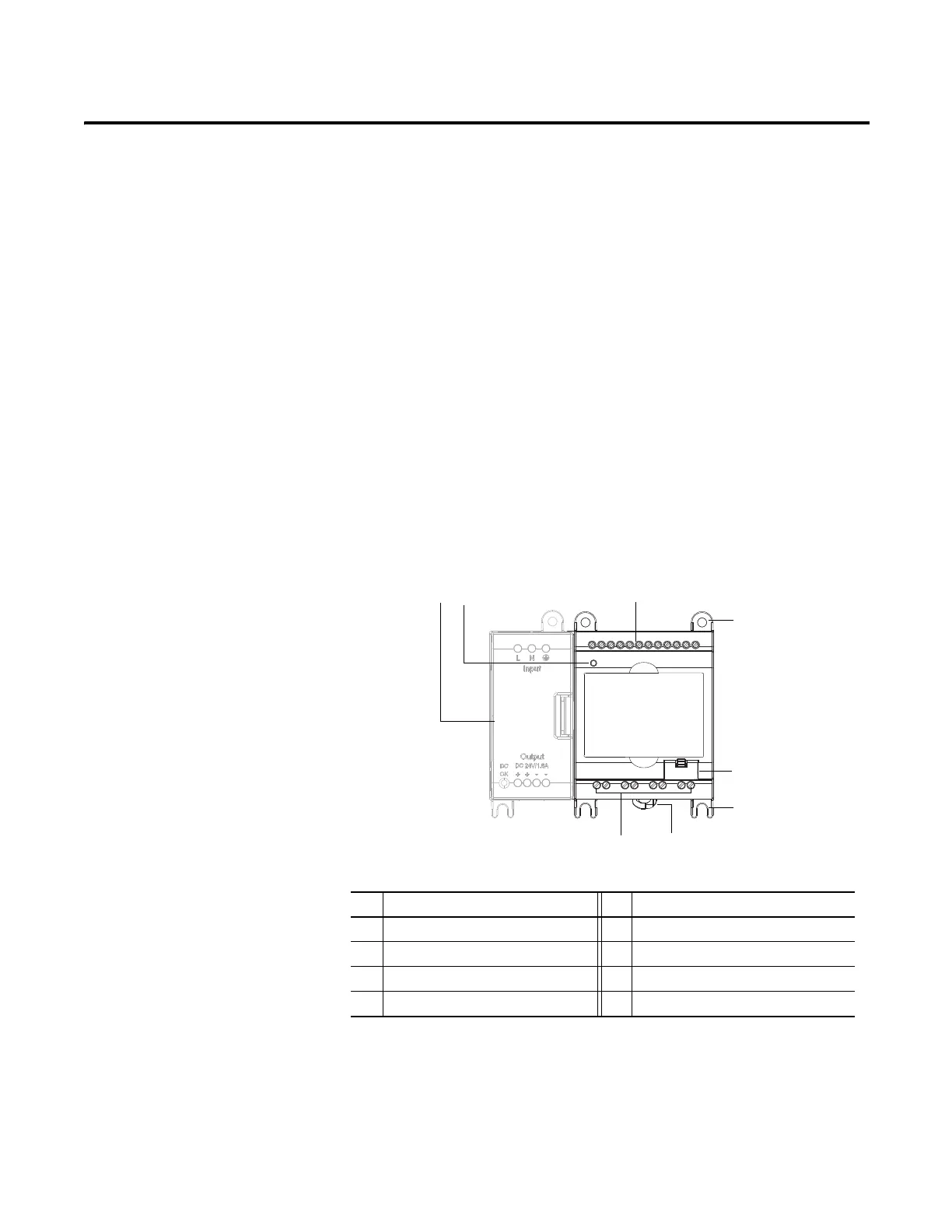

Micro810 12-Point Controllers
Controller Description
Description Description
1 Optional power supply 5 USB port (for use with USB Adapter only)
2 Status indicator 6 DIN rail mounting latch
3 Input terminal block 7 Output terminal block
4 Mounting screw hole/ mounting foot
1
2
3
5
67
45052
4
4
