Publication 1762-RM001C-EN-P

20-28 ASCII Instructions

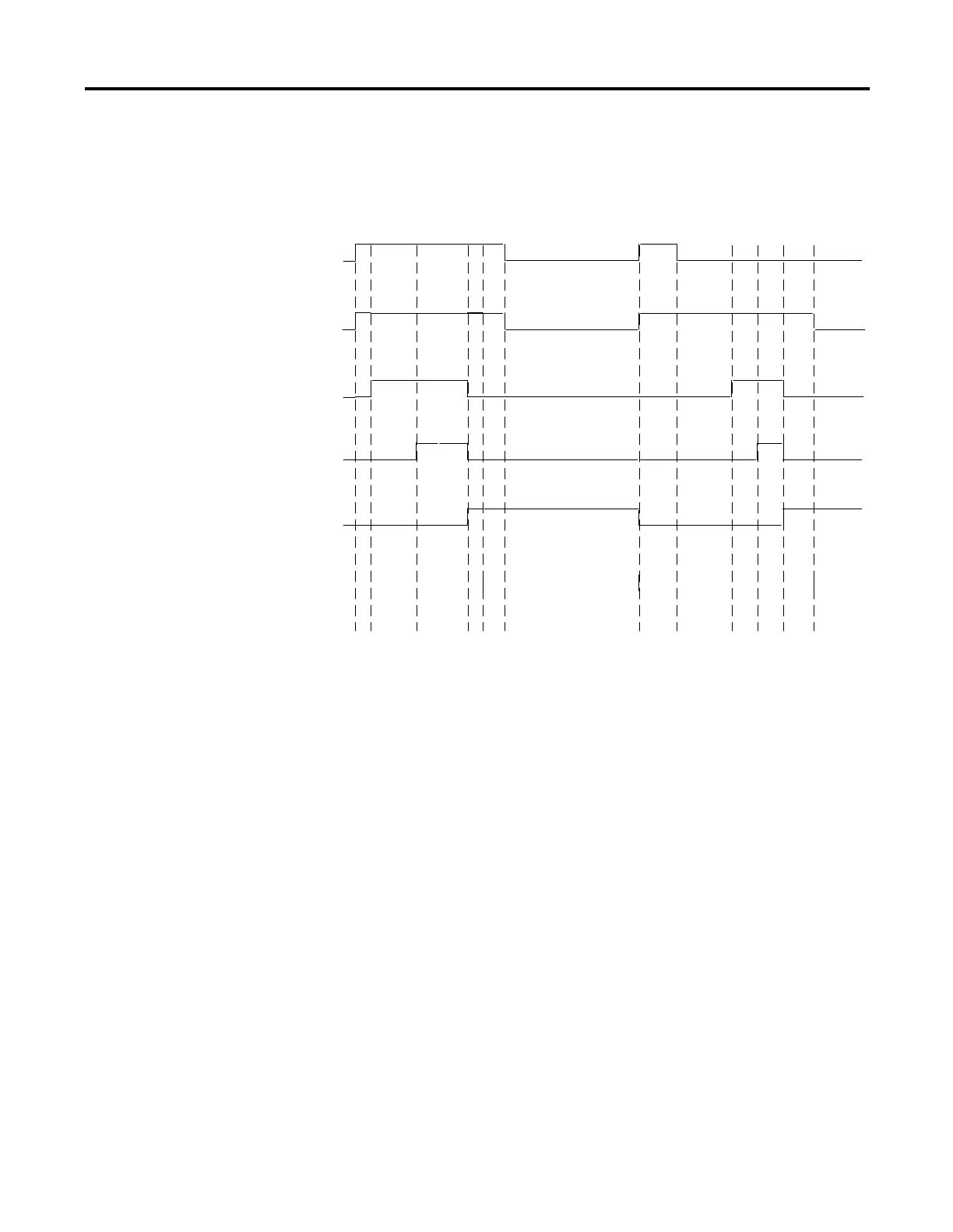

Timing Diagram for ARD,

ARL, AWA, and AWT

Instructions

12 6 345 1 5 263 4

Rung Condition

Enable Bit (EN)

Queue Bit (EU)

Running Bit (RN)

Done Bit

Error Bit

(DN or ER)

OFF

1 - rung goes true

2 - instruction successfully queued

3 - instruction execution complete

4 - instruction scanned for the first time after execution is complete

5 - rung goes false

6 - instruction execution starts

Default Chapter7
