Chapter 1 Installation/Wiring
Power and Control Module
PowerFlex 525 drives consists of a Power Module and Control Module.
Separating the Power and Control Module

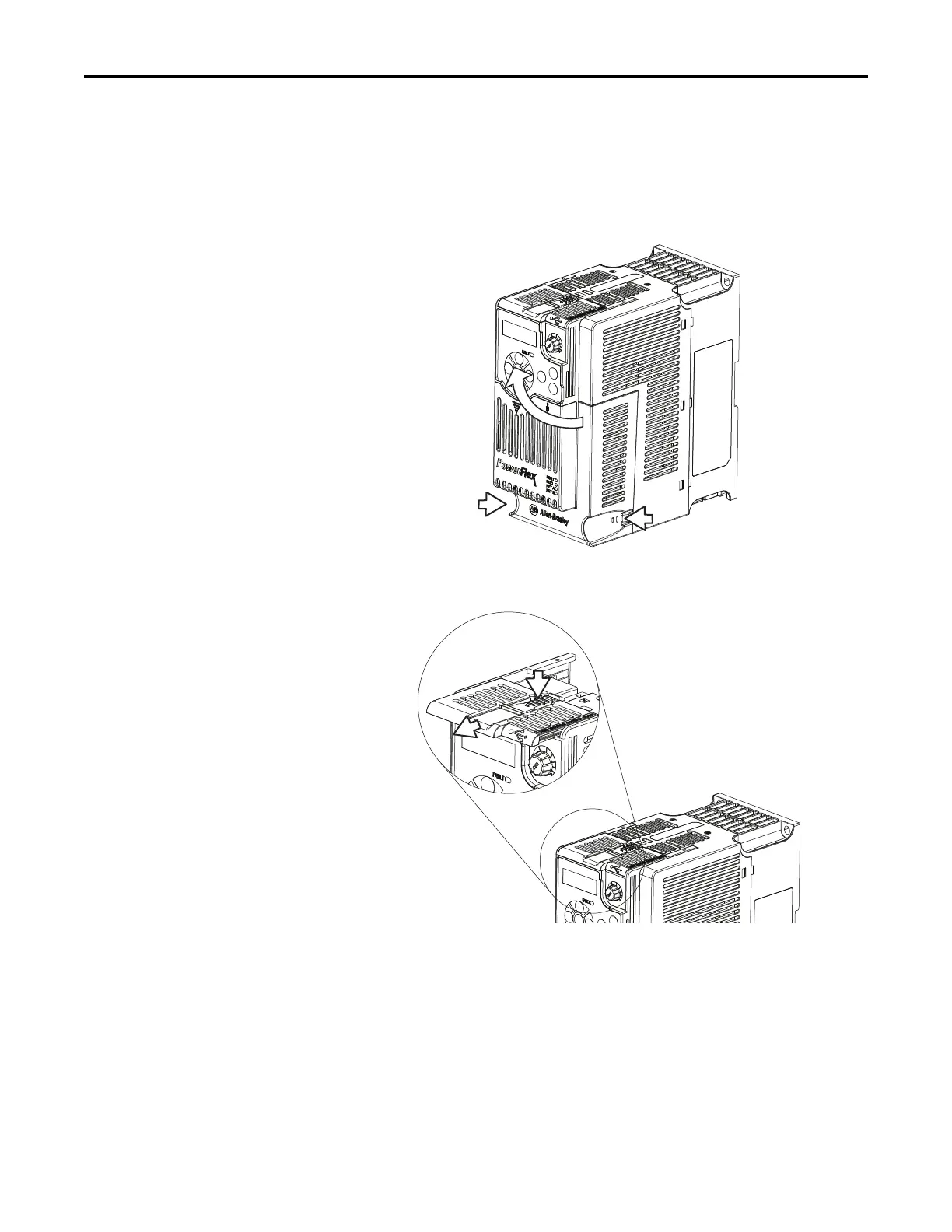

1. Press and hold down the catch on both sides of the frame cover, then pull
out and swing upwards to remove (Frames B...E only).
2. Press down and slide out the top cover of the Control Module to unlock it
from the Power Module.
1
2
