Installation/Wiring Chapter 1

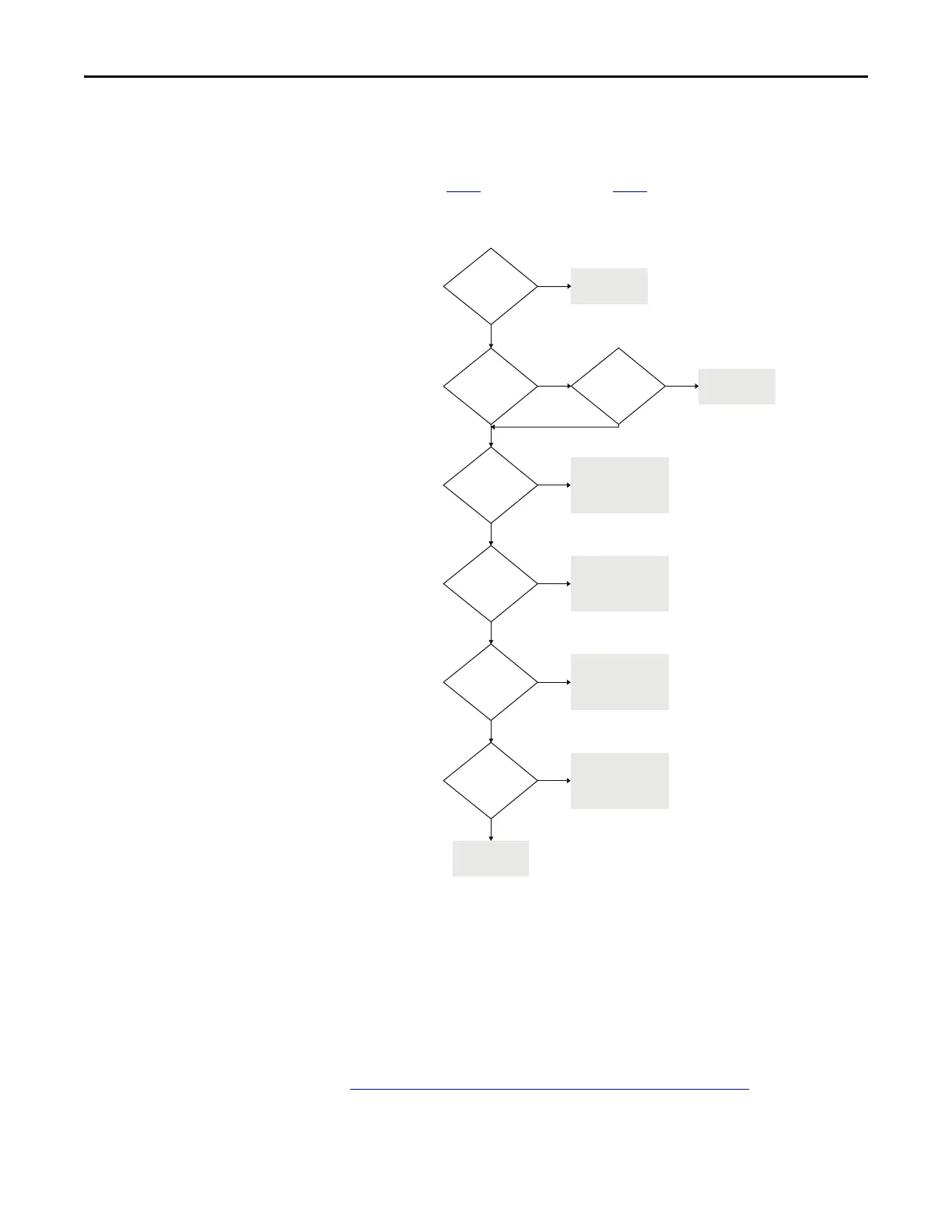

Accel/Decel Selection
The Accel/Decel rate can be obtained by a variety of methods. The default rate is
determined by P041
[Accel Time 1] and P042 [Decel Time 1]. Alternative
Accel/Decel rates can be made through digital inputs, communications and/or
parameters. See below for the override priority.
CE Conformity
Compliance with the Low Voltage Directive and Electromagnetic Compatibility
Directive has been demonstrated using harmonized European Norm (EN)
standards published in the Official Journal of the European Communities.
PowerFlex 525 drives comply with the EN standards listed below when installed
according to the installation instructions in this manual.
CE Declarations of Conformity are available online at:
http://www.rockwellautomation.com/products/certification/
.
Purge Input Enabled
AND Active
Terminal Block Jog
Input Enabled AND
Active
Input(s) is
programmed as
Acc/Dec
(2/3/4)
Is speed controlled
by [Preset Freq x]
Active
[Speed Referencex]
= Comms
Active
[Speed Referencex]
= 13 (Step Logic)
Drive stopped
(NOT running)
Accel/Decel always
Accel/Decel 1.
Accel/Decel from
[Jog Acc/Dec].
Accel/Decel 2 is active
when input is selected
by Accel and Decel input.
Drive uses Accel 1
and Decel 1.
No
No
No
No
No
No
No
Yes
Yes Yes
Yes
Yes
Yes
Yes
Accel/Decel 1/2/3/4 is
selected by the default
[Preset Freq x] setting.
Accel/Decel 1 or 2 is
selected according
to Comms.
Accel/Decel 1/2/3/4 is
selected according to
Step Logic
