Allen-Bradley PowerFlex 700H - Page 40

3-2 Access Procedures
POZIDRIV
®
is a registered trademark of the Phillips Screw Company
Phillips
®
is a registered trademark of Phillips Screw Company
700H Fiber Optic Adapter Board
(mounting)
M4 x 8 POZIDRIV ® 0.9 N-m
(8 lb.-in.)
700S Voltage Feedback Circuit
Board (mounting)
M3 x 6 Phillips 0.9 N-m
(8 lb.-in.)
AC Input Terminals on Power
Structure
M10 nut 40 N-m
(354 lb.-in.)
Motor Output Terminals on Power
Structure
M8 x 20 hexagonal screw 20 N-m
(177 lb.-in.)
Main Fan (Mounting) M6 x 20 POZIDRIV 3 N-m
(27 lb.-in.)
Main Fan M4 x 8 POZIDRIV 1.7 N-m
(15 lb.-in.)
Touch Cover (Main Fan) M5 x 16 3 N-m
(27 lb.-in.)
ASIC Fan M4 x 16 POZIDRIV 0.4 N-m
(3.5 lb.-in.)
Rectifier board (Mounting) M4 x 8 POZIDRIV 1 N-m
(9 lb.-in.)
Output Power Module Output
Terminals (U,V,W)
M8 x 20 hexagonal screw 14 N-m
(124 lb.-in.)
Rectifying Module Input
Terminals (L1,L2,L3)
M10 x 20 hexagonal screw 12 N-m
(106 lb.-in.)
Y-Bus Bar M10 nut 40 N-m
(354 lb.-in.)
Capacitor M4 x 8 self tapping 1 N-m
(9 lb.-in.)
Capacitor Bus Bar M6 x 16 POZIDRIV 4 N-m
(35 lb.-in.)
Capacitor Bus Bar M6 x 20 POZIDRIV 4 N-m
(35 lb.-in.)
DC- / DC+ Terminals M6 x 20 POZIDRIV 5 N-m
(44 lb.-in.)
Block (Mounting) M10 x 12 hexagonal screw 20 N-m
(177 lb.-in.)
700S Voltage Feedback Circuit
Board (mounting)
M3 x 0.5 thread - 37 mm x
37 mm hex standoff
0.9 N-m
(8 lb.-in.)

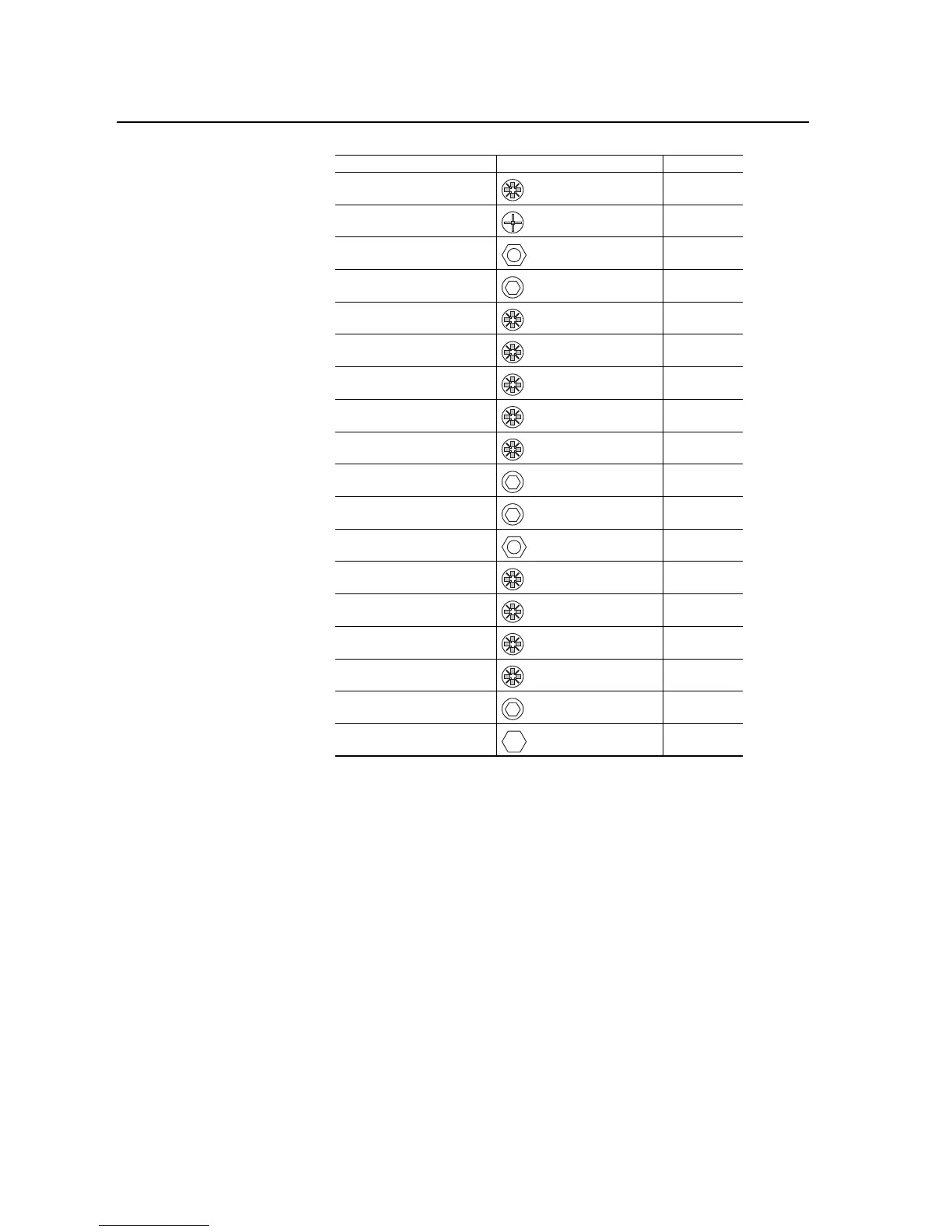

Item Screw Final Torque
