3-24 Access Procedures
Installation
Install the power structure in reverse order of removal, while referring to
Torque Specifications on page 3-1
. Refer to the publication
PFLEX-IN006}, Installation Instructions - PowerFlex 700S and 700H
High Power Drives, for tightening torques of motor terminations.
Removing the Main Fans
Removal
There are three main fans on the drive.
1. Remove power from the drive. Refer to Removing Power from the
Drive on page 3-3.
2. Remove the bottom protective cover from the power structure. Refer to
Removing the Covers from the Power Structure on page 3-13
.
3. Disconnect the fan cable connectors under the power structure.
4. Remove the two screws which secure each fan to the drive. Then
remove the fans.

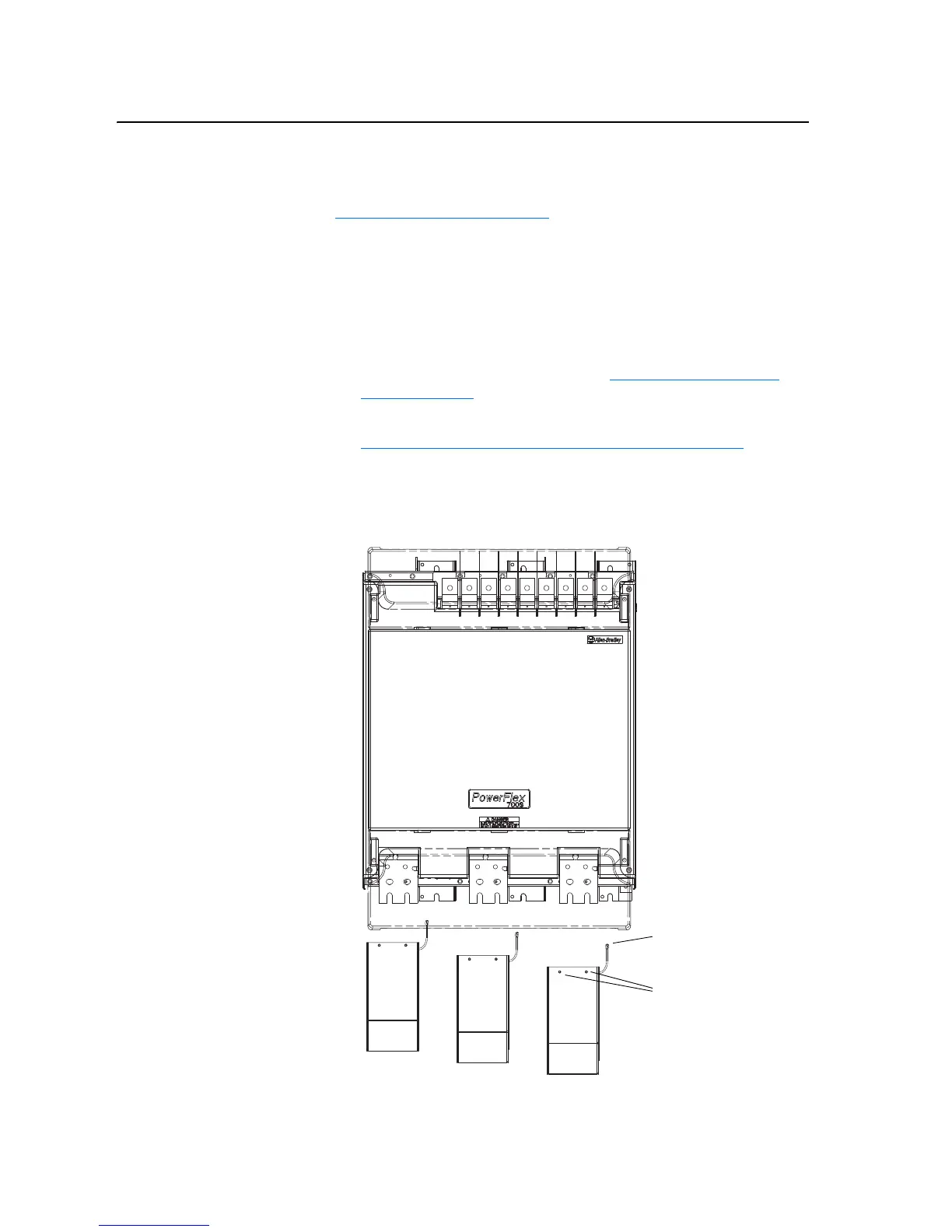

Disconnect Fan Cables (3)
Remove Screws (6)
To Next Page
