Design a sequential function chart
Chapter 1
Rockwell Automation Publication 1756-PM006I-EN-P - February 2018 27

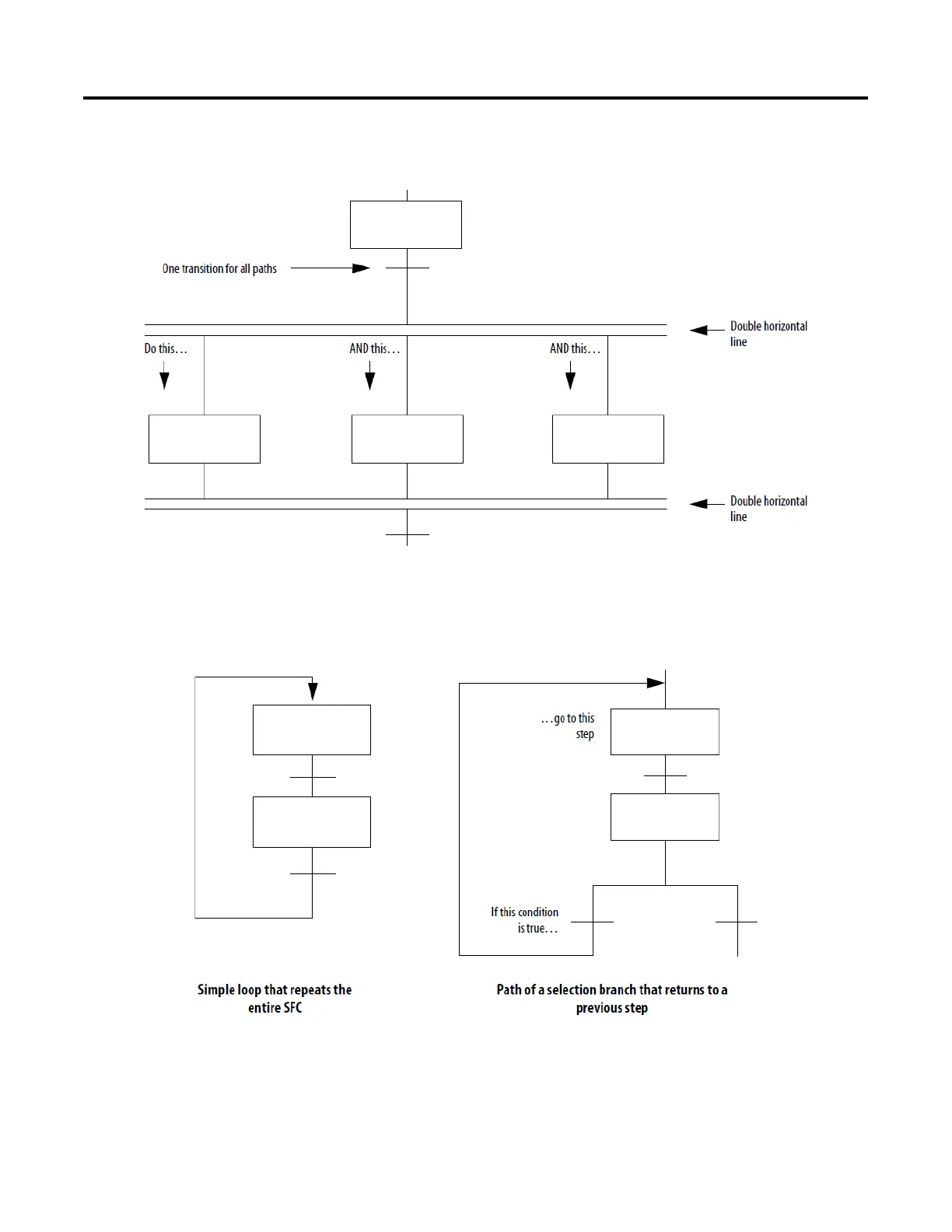

• The SFC checks the transition after the last step of each path has executed
at least once.
You can also connect a step to a previous point in your SFC.
• Loop back and repeat steps
• Return to the beginning of the SFC and start over
Wire to a previous step
