Program a sequential function chart
Rockwell Automation Publication 1756-PM006I-EN-P - February 2018 73

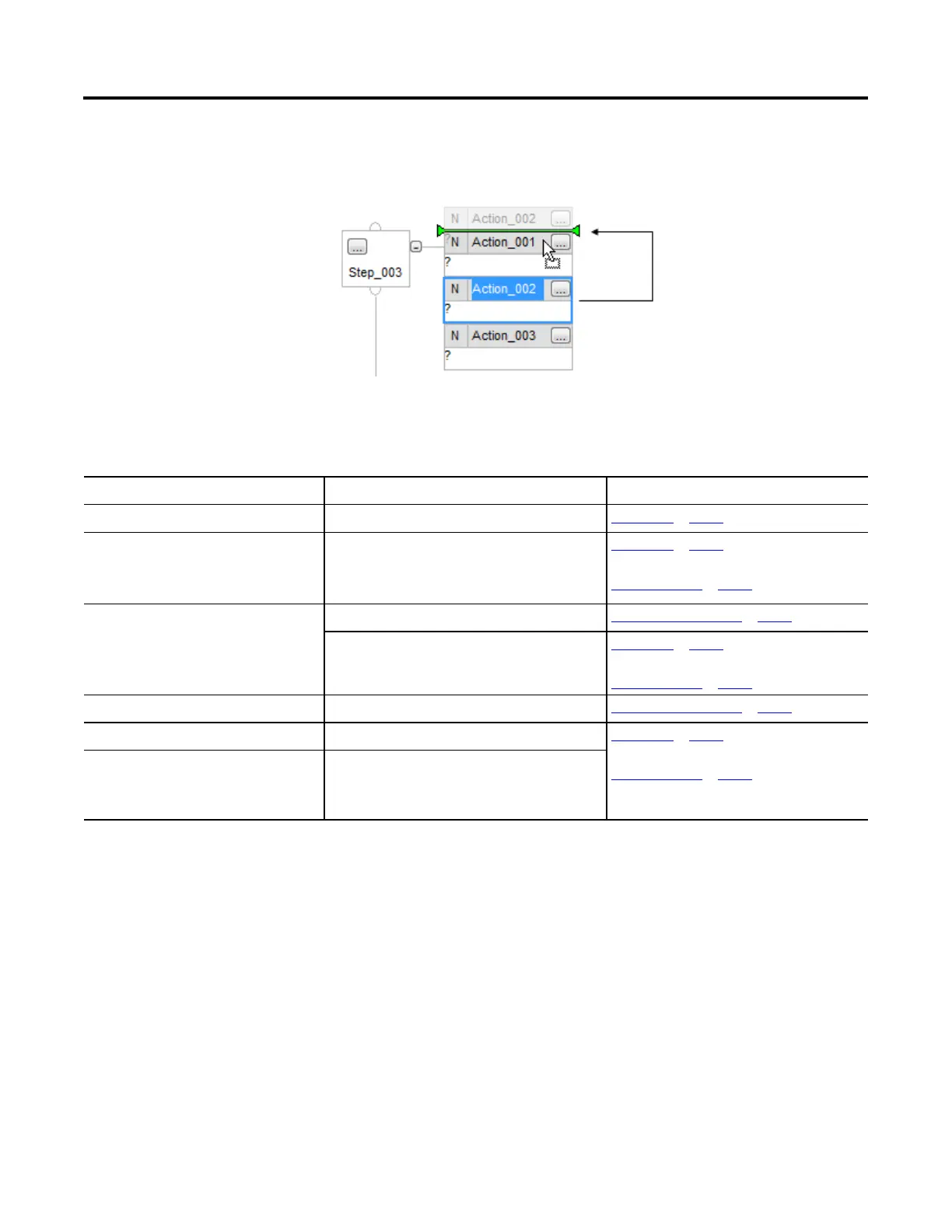

following shows dragging Action_002 from after Action_001 to before
Action_001.
You can document these SFC components.
To document this And you want to Do this
General information about the SFC
----------------------------------------->
Add a text box on page 75
Step
----------------------------------------->
Add a text box on page 75
-or-
Add a tag description on page 75
Transition
Download the documentation to the controller
Add structured text comments on page 74
• Have the option of showing or hiding the documentation
• Position the documentation anywhere in the SFC
Add a text box on page 75
-or-
Add a tag description on page 75
Action Download the documentation to the controller Add structured text comments on page 74
Stop
----------------------------------------->
Add a text box on page 75
-or-
Add a tag description on page 75
Other element (such as a selection branch)
----------------------------------------->
With version 17 and later of the application, you have the option to display
project documentation, such as tag descriptions and rung comments for any
supported localized language. You can store project documentation for multiple
languages in a single project file rather than in language-specific project files. You
define all the localized languages that the project supports and set the current,
default, and optional custom localized language. The default language is used if the
current language's content is blank for a particular component of the project.
However, you can use a custom language to tailor documentation to a specific type
of project file user. Enter the localized descriptions in your project, either when
programming in that language or by using the import/export utility to translate
the documentation off-line and then import it back into the project. Once you
To Next Page
