Design a sequential function chart
Rockwell Automation Publication 1756-PM006I-EN-P - February 2018 45
To provide bumpless control of a device during more than one time or phase
(step), do one of the following options.

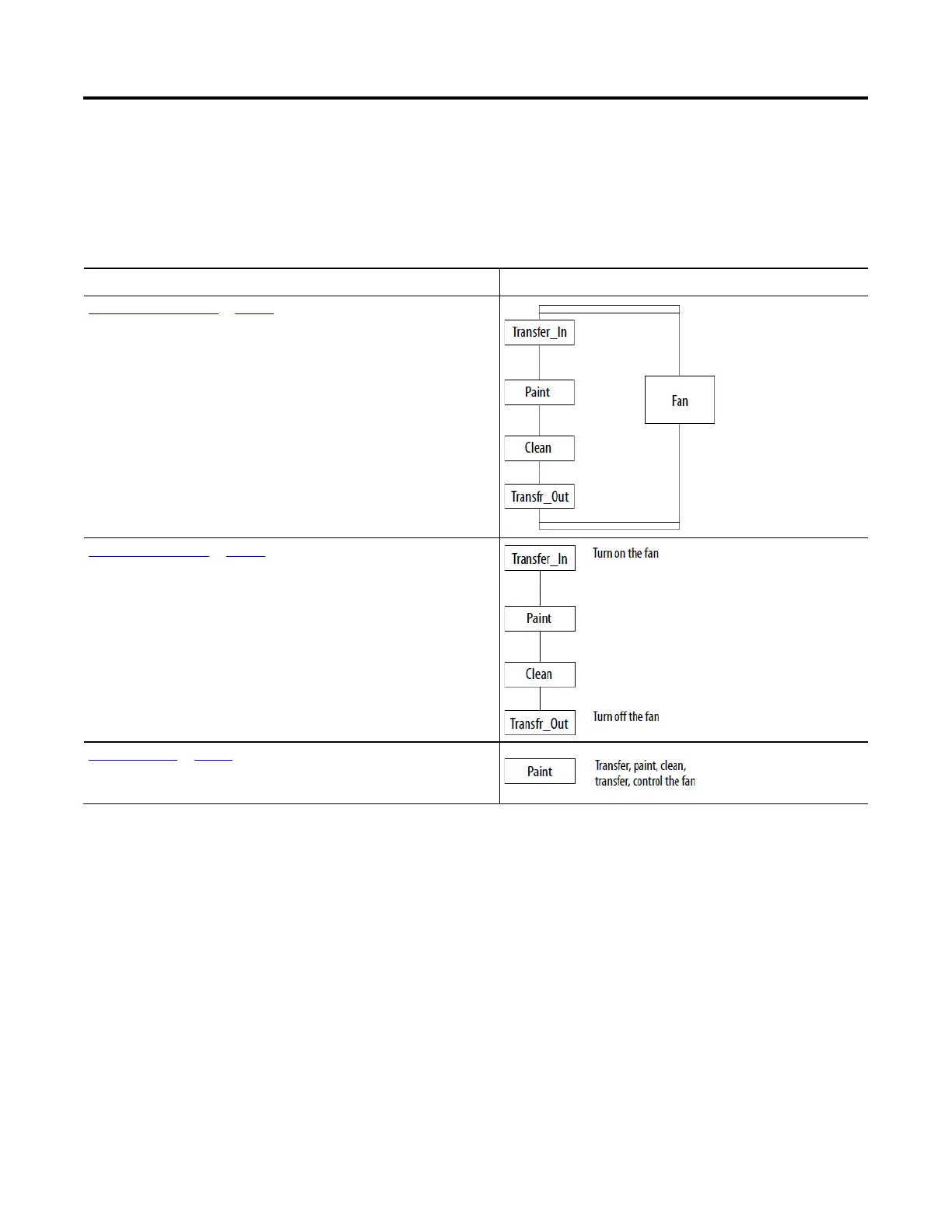

Option Example
Use a simultaneous branch on page 45
Make a separate step that controls the device.
Store and reset an action on page 46
Note the step that turns on the device and the step that turns off the device.
Later, define a Stored and Reset Action pair to control the device.
Use one large step on page 47
Use one large step that contains all the actions that occur while the device is on.
A simple way to control a device or devices during one or more steps is to create a
separate step for the devices. Then use a simultaneous branch to execute the step
during the rest of the process.
step-to-step
How do you want to control the
device?
Use a simultaneous branch
To Next Page
